点击放大查看

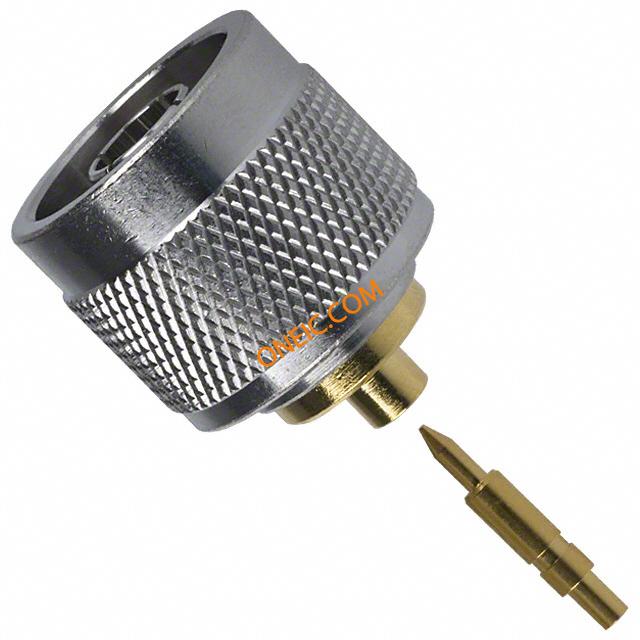

172133
| 制造商 | |
| 描述 | RF Connectors N ST PLUG SOLDER .141 SEMI RIGID Conn Type N PL 0Hz to 11GHz 50Ohm Solder ST Cable Mount Gold CONN N PLUG STR 50 OHM CRIMP connector;rf coaxial;n straight solder plug;for 0.141 semi-rigid cable;50 ohm RF/COAXIAL, N PLUG, STR, 50 OHM, SOLDER |
| 分类 |
商业参数
| 其他名称 | ACX1132 | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 11G | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 最大频率 | 11GHz |
机械参数
| 重量 | 0 | 直径 | 21 |
| 包装方式 | Bulk | 电缆类型 | :RG402 |
| 本体表面处理 | White Bronze | 电缆组 | RG-402 (.141" Semi Rigid) |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 壳体镀层 | Gold/Nickel |
| 连接器样式 | N Type | 触头材料 | Brass |
| 总长度 | 24.5 | 屏蔽层端接方式 | Solder |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | :Straight Plug |
产品信息
| 类型 | Type N | 连接器性别 | PL |
| 连接类型 | Semi-Rigid Cable | ||
环境参数
| 工作温度 | -65°C ~ 165°C | ||
