1673A TIN100
| 制造商 | |
| 描述 | Coaxial Cables 19AWG 1C SHIELD 100ft SPOOL TIN COAXIAL CABLE; 19AWG SOLID; PTFE INSULATED; MICROWAVE; 50 OHMS TIN; 30m CABLE, COAXIAL, UNJKTED, RG402/U, 19AWG, 100FT, TIN COAXIAL CABLE, 19AWG SOLID, TEFLON INSULATED, MICROWAVE, 50 OHMS TIN |
| 分类 |
商业参数
| 工厂包装数量 | 2 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL AWM, EU CE |
| 海关税号 | 85444920 | ||
电气参数
| 阻抗 | 50 Ohms | 连接器阻抗 | RG402 / U |
机械参数
| 长度 | 100 ft | 重量 | 6 lbs |
| 屏蔽 | Shielded | 电缆类型 | :RG402 |
| 导线线规 | 19 | 线缆护套颜色 | :- |
| 屏蔽材料 | Copper-Tin | 总长度 | :100ft |
| 导体材料 | Silver Plated Copper Covered Steel | 外径 | 0.138 in |
| 绝缘材料 - 材质 | Tetrafluoroethylene | 电缆对数 | Solid |
| 线规或范围 - AWG | :19AWG | 护套（绝缘）材料 | :- |
| 外径-未扩张 | 0.138 " | ||
产品信息
| 应用细节 | Indoor, Outdoor | 位置/触点数量 | 1 |
环境参数
| 最高温度限值 | + 200 C | ||
文档与媒体
相关型号
901-9201-1A
Amphenol RF
RF Connectors SMA PLG .141 RG402 CONN SMA PLUG STR 50 OHM RF Connectors / Coaxial Connectors SMA PLG .141 RG402 connector, rf coaxial, sma str plug w/o contact and insulator, 0.141 semi-rigid

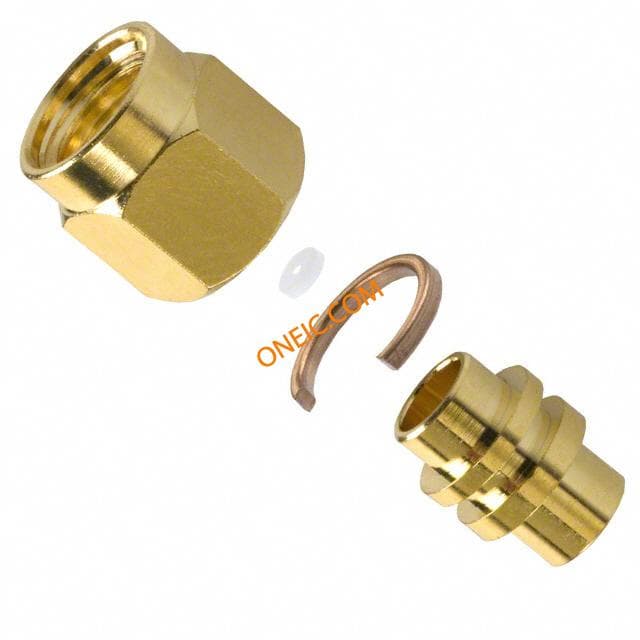

132100
amphenol connex
Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str solder plug;cable center cont;for 0.141 semi-rigid RF Connectors / Coaxial Connectors SMA ST PLUG SOLDER NO CONTACT .141 S/R RF/COAXIAL, SMA PLUG, STR, 50 OHM, SOLDER connector, rf coaxial, sma str solder plug, cable center cont, for 0.141 semi-rigid

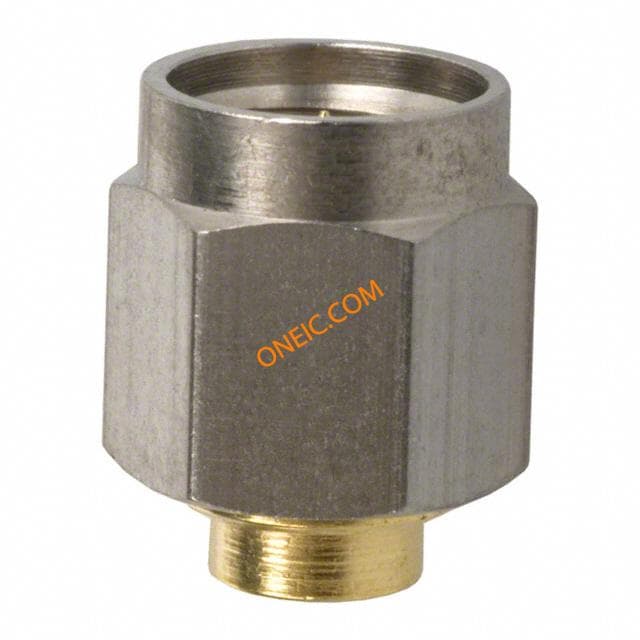

901-9808
amphenol
Conn SMA PL 0Hz to 18GHz 50Ohm ST Cable Mount Gold Over Nickel CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str plug;solder/plugable;for 0.141 semi-rigid;gold plt RF Connectors / Coaxial Connectors STRT PLG .141S/R GLD connector, rf coaxial, sma str plug, solder/plugable, for 0.141 semi-rigid, gold plt
122386
amphenol connex
Conn TNC PL 0Hz to 11GHz 50Ohm Solder ST Cable Mount Gold CONN TNC PLUG STR 50 OHM SOLDER connector;rf coaxial;tnc straight solder plug;for .141 semi-rigid cable RF Connectors / Coaxial Connectors TNC STRAIGHT SOLDER PLUG .141 SEMI RIGID connector, rf coaxial, tnc straight solder plug, for .141 semi-rigid cable

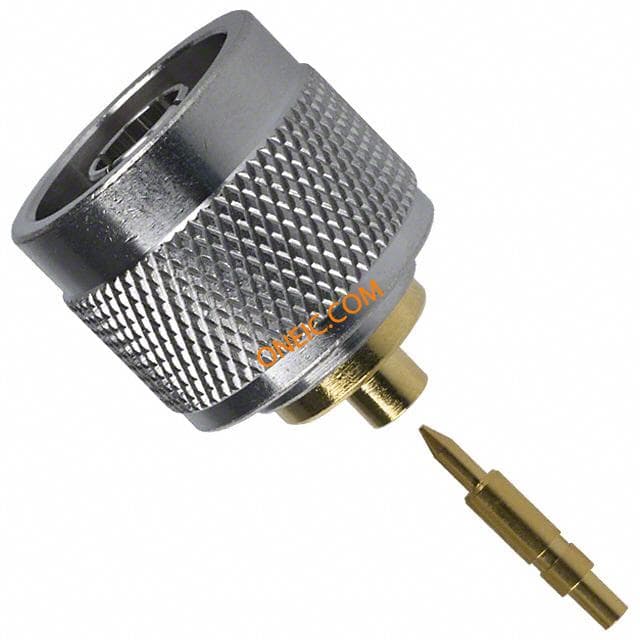

172133
