| 制造商 | |

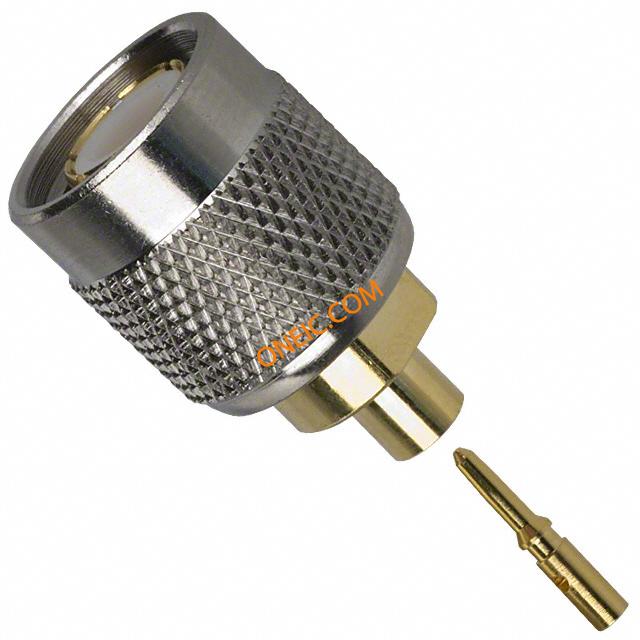

| 描述 | Conn TNC PL 0Hz to 11GHz 50Ohm Solder ST Cable Mount Gold CONN TNC PLUG STR 50 OHM SOLDER connector;rf coaxial;tnc straight solder plug;for .141 semi-rigid cable RF Connectors / Coaxial Connectors TNC STRAIGHT SOLDER PLUG .141 SEMI RIGID connector, rf coaxial, tnc straight solder plug, for .141 semi-rigid cable |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1087 |
| 零件号别名 | 319-0075 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 0.419407 oz | 直径 | 14.5 |
| 包装方式 | Bulk | 电缆类型 | RG-402/U, 0.141 Semi-Rigid |
| 本体表面处理 | Nickel | 电缆组 | RG-402 (.141" Semi Rigid) |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 壳体镀层 | Gold/Nickel | 连接器样式 | TNC |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 23 |
| 主要材料 | TNC | 端接样式 | Cable - Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | TNC | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 制造商全称 | TNC Series | 连接类型 | Semi-Rigid Cable |
| 射频系列/标准 | 122386 | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
相关型号
