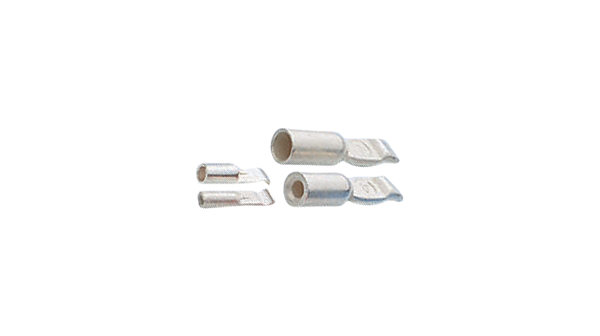

点击放大查看
5952
| 制造商 | Anderson Power Products |
| 描述 | Heavy Duty Power Connectors PP75/SB50 #8 AWG CONTACT, LOW DETENT Contact; PowerPole; Loose Piece - Low Detent; 75 A; Silver; 8 AWG; 8.4 sq. mm CONTACT, CRIMP, PIN, 8AWG Contact;PowerPole;8AWG;75A;600V;forPP75;HighDetent Crimp connector unisex 75 A Hermaphroditic, 5952, Anderson Power Products |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | Powerpole |
| 子类别 | Connector Contact | 工厂包装数量 | 25 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366910 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 75 A |
机械参数
| 重量 | 0.005 | 包装方式 | Individual |
| 导线线规 | :8AWG | 重量（g） | 4.23833 |
| 接触镀层 | :Silver | 触头材料 | :Copper |
| 第一触头极性 | :- | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :8AWG | ||
产品信息
| 系列 | PP75 | 产品子类型 | Contacts |
| 适用产品/相关产品 | 5952BK | ||
