点击放大查看
ADZS-DECODE-EX3
| 制造商 | Analog Devices, Inc. |
| 描述 | Video Decode extender Board For EI3 Interface BOARD EXTENDER VIDEO DECODER EI3 Daughter Cards & OEM Boards Video Decoder Extender for EI3 BOARD, EXTENDER VIDEO DECODER, EI3 |
| 分类 |
商业参数
| 产品 | Video Input Boards | 其他名称 | ADZSDECODEEX3 |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84735080 |
电气参数
| 核心类型 | :DSP | 接口 | GPIO |
| 供电电压 | 3.3 V | ||
机械参数
| 重量 | 0.05 | 包装方式 | Bulk |
产品信息
| 系列 | EZ-Extender | 产品特性 | :HDMI Switching, Video and Graphics Digitizer |
| 功能 | Extender board | 套件内容 | :Extender Board for EI3 Interface Board, EZ-KIT Lite / EZ Board, Video Cable |
| 制造商全称 | :Blackfin | 附件类型 | Extension Board |
| 工具类型/特性 | ADV7842 | 芯片组制造商 | :Analog Devices |
| 适用产品/相关产品 | EZ-Boards | ||
文档与媒体
相关型号
SN74LVC1G125DBVR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 SN74LVC1G125DBVR, Bus Buffer, LVC, 4 @ 5 Vns, 32mA 1.65 to 5.5V 5-Pin SOT-23 IC, BUFFER GATE, BUS, SMD, SOT-23-5 IC, BUFFER, NON-INVERT, SOT-23-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SOT-23-5, SN74LVC1G125, SN74LVC1G125DBVR, Texas Instruments LVC 总线缓冲器, 4 ns @ 5 V, 32mA, 1.65 → 5.5 V, 5针 SOT-23封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE
702075
Spectrum Digital
Video IC Development Tools EVM TMS320DM6437 DV KIT W/CCS FOR C6437 PLATFORM DEV DGTL VID FOR DM6437
SN74AVC8T245PW
texas instruments
Bus XCVR Single 8-CH 3-ST 24-Pin TSSOP Tube IC BUS TRANSCVR 8BIT 24TSSOP Translation - Voltage Levels 8-BIT BUS TRANSCEIVER Voltage Level Translator 24-Pin TSSOP IC, 8BIT BUS TRANSCEIVER DUAL, SMD 8-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs , 8位 非反相 总线收发器, 24针 TSSOP封装
SN74AVC4T245PW
texas instruments
4-BIT DUAL-SUPPLY BUS TRANSCEIVER TISSN74AVC4T245PWRE4 SN74AVC4T245DBR/DBT Voltage Level Translator 16-Pin TSSOP Tube IC BUS TRANSCVR 4BIT 16TSSOP IC, 4BIT BUS TRANSCEIVER DUAL, 16TSSOP IC: digital; 3-state,4bit, bus transceiver; TSSOP16 4-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs Logic IC TSSOP-16, SN74AVC4T245, SN74AVC4T245PW, Texas Instruments , 双 4位 非反相 总线收发器, 16针 TSSOP封装 Translation - Voltage Levels 4-Bit Dual-Supply Bus Xcvr
MCP23017-E/ML
microchip
I/O Expander 28-Pin QFN EP I2C GPIO Expander 5.5V 28-Pin QFN EP Tube I/O-EXP 16bit QFN28 SMD IC I/O EXPANDER I2C 16B 28QFN MCP23017-E/ML, I/O Expander, 28-Pin QFN EP Interface - I/O Expanders 16bit Input/Output Exp I2C interface MCP23017-E/ML MCUI/O,MCP23017-E/ML IC: expander; 16bit I/O port; I2C; QFN28; 1.8÷5.5VDC Communication IC, 16 B, QFN-28, MCP23017-E/ML, Microchip 输入/输出扩展器, 28针 QFN封装

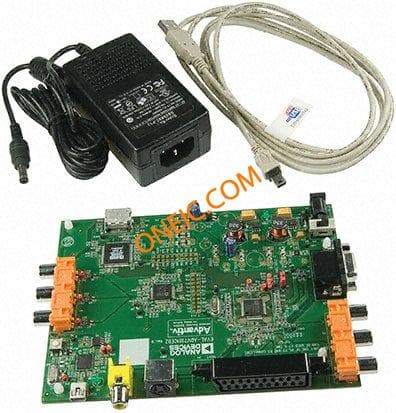

EVAL-ADV7181CLQEBZ
