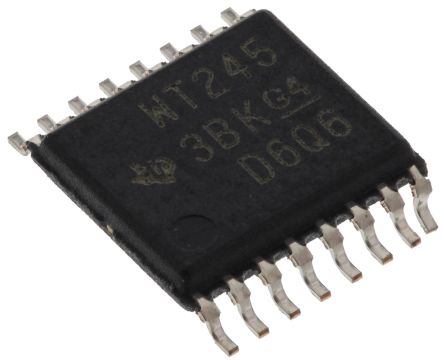

SN74AVC4T245PW
| 制造商 | Texas Instruments Incorporated |
| 描述 | 4-BIT DUAL-SUPPLY BUS TRANSCEIVER TISSN74AVC4T245PWRE4 SN74AVC4T245DBR/DBT Voltage Level Translator 16-Pin TSSOP Tube IC BUS TRANSCVR 4BIT 16TSSOP IC, 4BIT BUS TRANSCEIVER DUAL, 16TSSOP IC: digital; 3-state,4bit, bus transceiver; TSSOP16 4-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs Logic IC TSSOP-16, SN74AVC4T245, SN74AVC4T245PW, Texas Instruments , 双 4位 非反相 总线收发器, 16针 TSSOP封装 Translation - Voltage Levels 4-Bit Dual-Supply Bus Xcvr |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube, Tape & Reel | 标准封装名称 | TSSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :74AVC4T245 | 抗辐射加固 | No |
电气参数
| 数据速率 | 380Mbps | 输入类型 | Logic |
| 逻辑类型 | AVC | 输出类型 | 3-State |
| 位数 | 4 | 额定电压 | 1.2 |
| 输出电流 | :12mA | 输入数量 | :4 |
| 输出电压 | CMOS | 供电电压 | 1.8|2.5|3.3 V |
| 传播延迟 | :3.1ns | 通道数量 | 4 |
| 元件数量 | 2 | 最大额定电流 | Catalog |
| 输出1频率 | 100 | 施密特触发器输入 | No |
| 最小供电电压 | 1.2 V | 输入逻辑低电平 | CMOS |
| 传播延迟（最大） | 2.9ns | 静态电流 (Iq) | 80 uA |
| 传播延迟时间 | 10.3 ns | 静态电流（最大） | 0.08 mA |
| 输出高/低电流 | 12 mA | 空闲电流，典型值 @ 25°C | 0.008 |
| 输出数量与类型 | 1 | 差分 - 输入:输出 | No/No |
| 最大传播延迟 @ V, 最大CL | 6.3@1.5V ns | 传播延迟 tpLH / tpHL（最大） | 3.4 3.2 2.9 2.8 |
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.000062 |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 引脚数 | :16 | 封装形式 | 16TSSOP |
| 冷却的封装 | TSSOP | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 5.1(Max) | 包装数量 | TSSOP |
| 位数 | 16 | 外壳尺寸-插件 | 1.05(Max) |
| 供应商器件封装 | 16-TSSOP | ||
产品信息
| SPG | 90 | 类型 | digital |
| 系列 | AVC | 工艺（或'制程'，根据具体值如CMOS） | CMOS |
| 产品特性 | W/Volt Translation | 功能 | Voltage Level Translator |
| 极性 | Non-Inverting | 软件 | SCES576G |
| 基本单元 | :74 | 技术 | CMOS |
| 图案编号 | Y | 单元数量 | 1 |
| 功能框图 | alt_sces576g.gif | 射频系列/标准 | AVC |
| 使用的IC/零件 | :SN74AVC4T245PW | 印刷电路板数量 | 16 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
SN74AVC4T245PWT
texas instruments
LOGIC Voltage Level Translator 16-Pin TSSOP T/R IC BUS TRANSCVR 4BIT 16TSSOP Bus XCVR Dual 4-CH 3-ST 16-Pin TSSOP T/R IC, 4BIT BUS TRANSCEIVER DUAL, SMD 4-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs , 双 4位 非反相 总线收发器, 16针 TSSOP封装 Translation - Voltage Levels 4-Bit Dual-Supply Bus Xcvr
CC2591RGVT
texas instruments
Analog RF Front End 16-Pin VQFN EP T/R RF Front End 2.4 GHz RF Front End LNA/PA RF Front End 22dB 4.8dB 16-Pin VQFN EP T/R IC RF FRONT END 2.4GHZ 16-QFN LNA/PARF Front End 22dB 4.8dB 16-Pin VQFN EP T/R TRANSCEIVER, RF FE, 2.4GHZ, 16QFN IC, RF FRONT END, 2400-2483.5MHZ, QFN-16

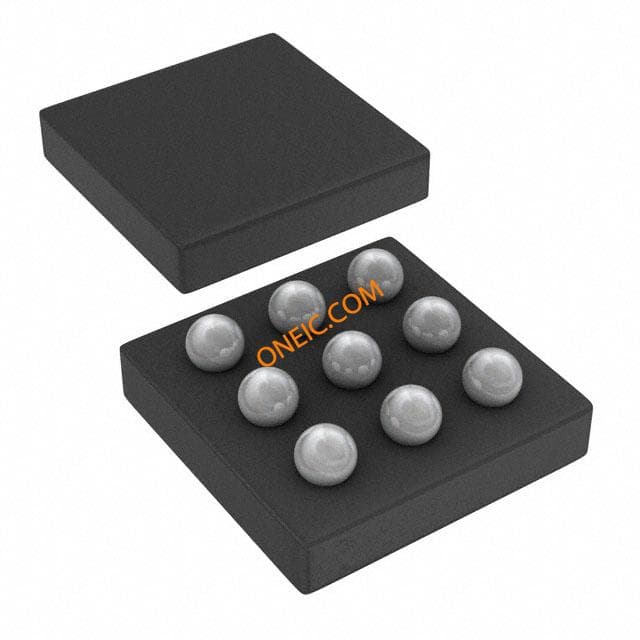

CSD25201W15
