点击放大查看

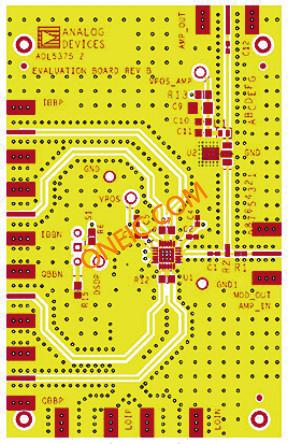

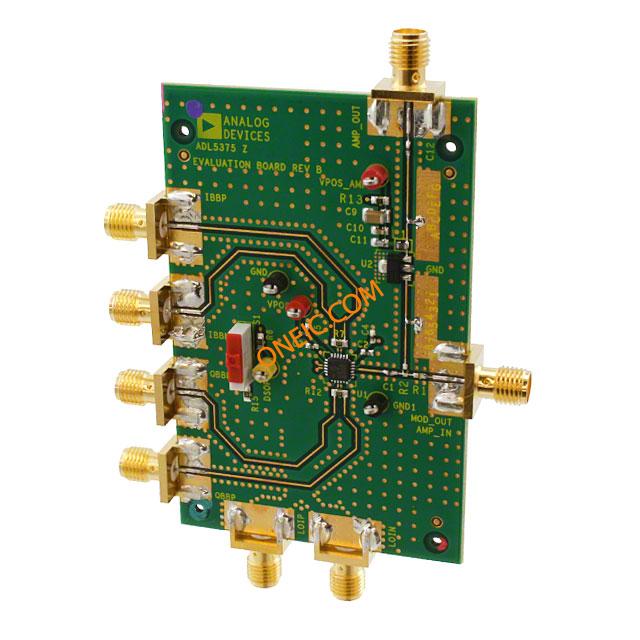

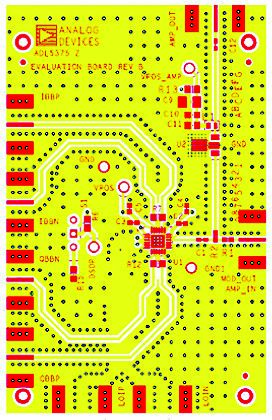

ADL5375-05-EVALZ
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For ADL5375-05 BOARD EVAL FOR ADL5375-05 Evaluation Board 0.4-6GHz Modulator RF Development Tools ADL5375-05 EVAL ADL5375, QUAD MODULATOR, EVAL BOARD Analog Devices CDMA-2000、EDGE、GSM、LTE、TD-SCDMA、W-CDMA、WiMAX 开发套件 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | ADL537505EVALZ |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
电气参数
| 频率 | 400MHz ~ 6GHz | 供电电压 | 5 V |
| 元件数量 | :- | ||
机械参数
| 重量 | 0.25 | 包装方式 | Bulk |
产品信息
| 类型 | Development Kit | 系列 | ADL5375 |
| 内容 | Board | 产品特性 | :Output Frequency Range of 400MHz to 6GHz, Sideband Suppression, 1dB Output Compression |
| 套件类型 | :Communication | 技术 | CDMA-2000, EDGE, GSM, LTE, TD-SCDMA, W-CDMA, WiMAX |
| 套件内容 | Evaluation Board for ADL5375 | 卡标准 | Development Kit |
| 工具类型/特性 | ADL5375 | 射频系列/标准 | ADL5375 |
| 芯片组制造商 | :Analog Devices | 应用细节 | :- |
| 适用产品/相关产品 | ADL5375-05 | ||
文档与媒体
相关型号

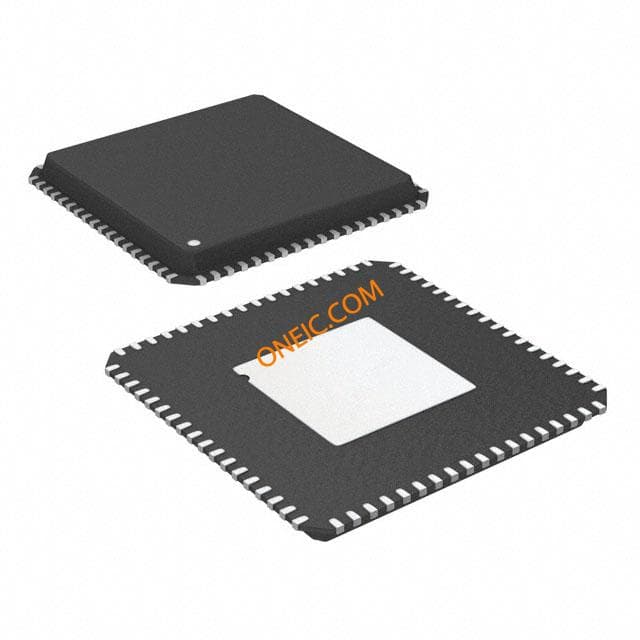

AD9125BCPZ
analog devices
DAC 2-CH Current Steering 16-bit 72-Pin LFCSP EP IC DAC 16BIT 1230MSPS 72LFCSP Digital to Analog Converters - DAC Dual 16B 1000 MSPS Analog Devices 双 16 位 DAC, 1Gsps, 并行接口, 72针 LFCSP封装

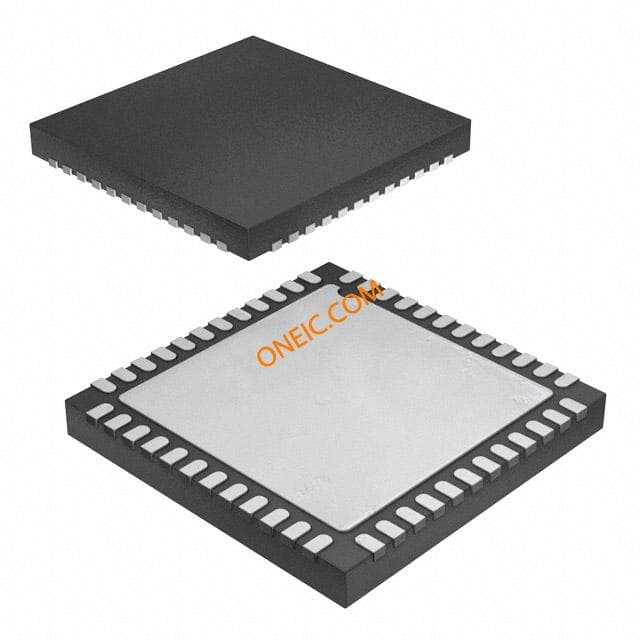

AD9146BCPZ
