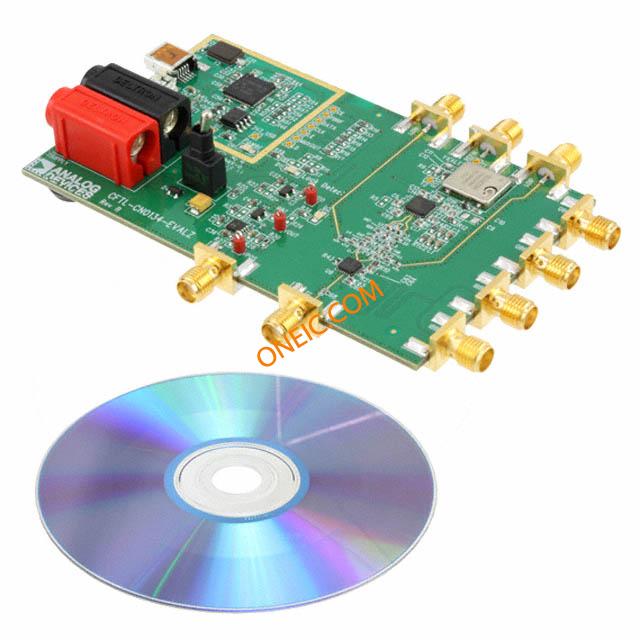

CFTL-CN0134-EVALZ
| 制造商 | Analog Devices, Inc. |
| 描述 | EVALUATION BOARD Evaluation Board For Wideband Synthesizer With Integrated VCO EVAL BOARD CN0134 Clock & Timer Development Tools CFTL-CN0134-EVALZ ADL5375, TRANSMITTER, EVAL BOARD |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84718000 |
电气参数
| 频率 | 500MHz ~ 4.4GHz | 供电电流 | 110 mA |
| 供电电压 | 3.3 V | 元件数量 | :ADF4350 |
机械参数
| 重量 | 0.2 | 包装方式 | Bulk |
产品信息
| 类型 | Transmitter | 内容 | Board |
| 产品特性 | :Fractional-N Synthesizer & Integer-N Synthesizer, Low Phase Noise VCO, RF Output Mute Function | 套件类型 | :Clock & Timing |
| 套件内容 | :Board | 工具类型/特性 | ADF4350 |
| 芯片组制造商 | :Analog Devices | 应用细节 | :VCO |
| 适用产品/相关产品 | ADF4350, ADL5375 | ||
文档与媒体
相关型号
ADF4350BCPZ
analog devices
PLL Frequency Synthesizer Single 32-Pin LFCSP EP IC SYNTH PLL VCO FN/IN 32LFCSP 137.5-4400MHz Synthesizer with VCO LFCSP Phase Locked Loops - PLL WB Synthesizer w/ Intg VCO IC, PLL, 4.4GHZ, 32LFCSP IC, PLL, 4.4GHz, LFCSP-32 Analog Devices 双 137.5 → 4400 MHz 频率合成器 , 32针 LFCSP VQ封装

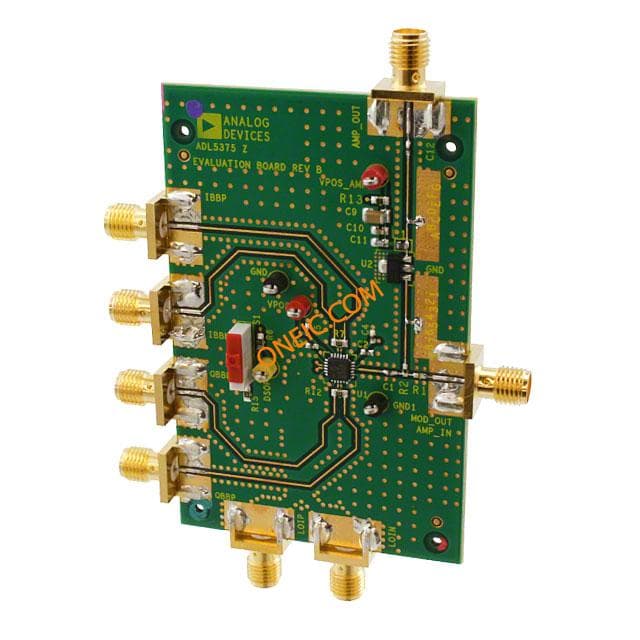

ADL5375-05-EVALZ
analog devices
Evaluation Board For ADL5375-05 BOARD EVAL FOR ADL5375-05 Evaluation Board 0.4-6GHz Modulator RF Development Tools ADL5375-05 EVAL ADL5375, QUAD MODULATOR, EVAL BOARD Analog Devices CDMA-2000、EDGE、GSM、LTE、TD-SCDMA、W-CDMA、WiMAX 开发套件
54819-0572
molex
Conn USB RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port Embossed T/R USB Connectors USB Mini-B Recept On-The-Go Rt.Angle Surface mount onthego connector,1A 30V MINI USB TYPE B, RECEPTACLE, SMT MINI USB TYPE B CONNECTOR, RCPT 5POS SMD, FULL REEL Conn; Data; USB; Mini-B; 5 Cir; Rt Angle; SMT; On-The-Go; Gold; LF Socket; USB B mini; on PCBs; SMT; PIN:5; horizontal Molex On-The-Go 系列 直角, 表面安装, USB2.0 B 型 微型 USB 连接器, 插座, 30 V, 1A
ADP150CB-3.3-EVALZ
analog devices
Ultralow Noise, 150 mA CMOS Linear Regulator, Evaluation Board With WLCSP Package BOARD EVALUATION 3.3V WLCSP Power Management IC Development Tools ADP150CB-3.3 Eval Brd ADP150, LDO, CMOS, EVALUATION BOARD
ADP150ACBZ-3.3-R7
analog devices
LDO Regulator Pos 3.3V 0.15A 4-Pin WLCSP T/R IC REG LDO 3.3V 0.15A 4WLCSP Voltage Reg. Low Noise 150mA 3.3V WLCSP4 Voltage Regulators - Standard Ultralow Noise 150mA CMOS LINEAR, REG, 0.15A, 1.8V TO 3.3V, 4WLCSP Analog Devices ADP150 系列 线性稳压器, 3.3 V -2.5 → 1.5% /150mA, 4针 WLCSP Linear Voltage Regulators Ultralow Noise 150mA CMOS
ADP150UJZ-REDYKIT
analog devices
Development Kit For Ultralow Noise, 150 mA CMOS Linear Regulator KIT REDI TOOL 1.8/3.3 ADP150 Power Management IC Development Tools Redykit 1833 ADP150, LDO REGULATOR, EVAL KIT Analog Devices ADP150 LDO 电压调节器 评估测试板

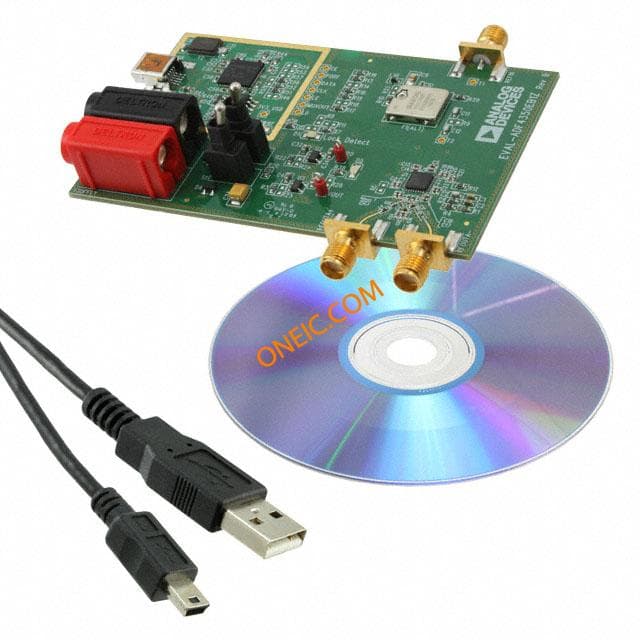

EVAL-ADF4350EB1Z
