点击放大查看

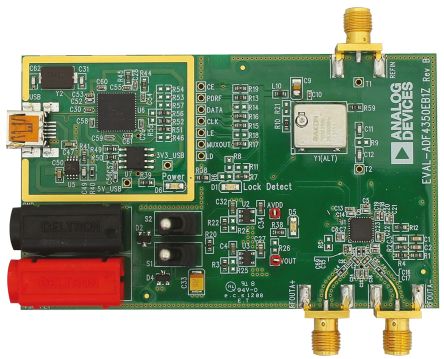

EVAL-ADF4350EB1Z
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For ADF4350 EVALUATION BOARD 1 FOR ADF4350 Clock & Timer Development Tools Evaluation Board ADF4350, SYNTHESIZER, EVAL BOARD Analog Devices ADF4350 PLL 频率合成器 评估测试板 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84718000 |
电气参数
| 频率 | 250 MHz, 4.4 GHz | 接口 | USB |
| 供电电流 | 110 mA | 供电电压 | 3.75 V to 5.5 V |
| 元件数量 | :ADF4350 | ||
机械参数
| 重量 | 0.2 | 包装方式 | Bulk |
产品信息

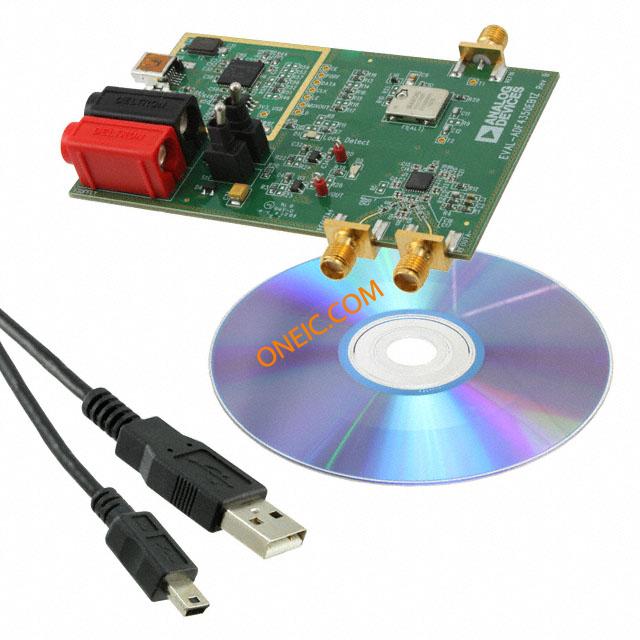

| 类型 | Development Kit | 内容 | Board, Cable, Software |
| 嵌入式 | No | 产品特性 | :Self-contained Board Including PLL, VCO, Loop Filter, Choice of Power Supply via USB |
| 功能 | Self contained board including PLL, VCO, loop filter 35 kHz, 25 MHz TCXO reference | 套件类型 | :Clock & Timing |
| 技术 | PLL | 套件内容 | :Evaluation Board Software CD, USB Cable |
| 主要用途 | Timing, Frequency Synthesizer | 工具类型/特性 | ADF4350 |
| 主要特性 | Single Fractional-N and Integer-N PLL with VCO | 射频系列/标准 | ADF4350 |
| 使用的IC/零件 | ADF4350 | 芯片组制造商 | :Analog Devices |
| 次要特性 | USB Interface | 应用细节 | :VCO |
