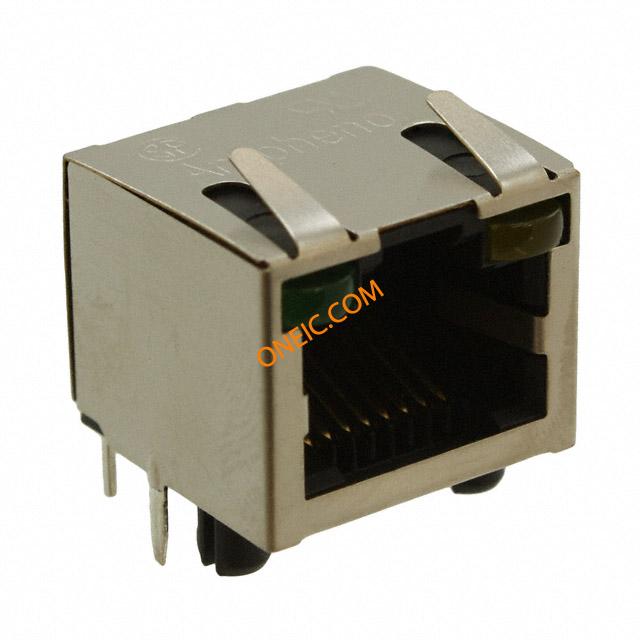

点击放大查看
RJHSE-5384
| 制造商 | Amphenol Corporation |
| 描述 | Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 12 Terminal 1 Port Cat 5 08P RJ45 MODJACK 1PORT YEL/GRE CONN MOD JACK R/A 8P8C SHIELDED Modular Connectors / Ethernet Connectors R/A RJ45 SHEILDED 8 CONT G/Y LEDS JACK, RJ45, W/LED, SHIELD, 1PORT CAT5 RJ45 MODULAR JACK, 8POS, 8CONTACT, 1 PORT connector, mod jack, rt angle pcb, shielded, led1-n, led2-n, single port, rj-45 Socket; RJ45; Cat:5; shielded, with LED; Pin layout:8p8c; THT |
| 分类 |
商业参数
| 最小起订量 | 120 | 单位包装 | 120 |
| 其他名称 | RJHSE5384 | 零件号别名 | 01M6250 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | 120 |
| 工厂包装数量 | 120 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 以太网 | Cat 5 | 额定电压 | 125 V |
| 接触电阻 | 20 mohm | 最大额定电流 | 1.5 A |
| 最小供电电压 | 125VAC | 连接器类型 - 电压输入 | :Cat5 |
机械参数
| 颜色 | Black | 深度 | 15.75 mm |
| 间距 | 2.03 mm | 高度 | 13.46 mm |
| 重量 | 0.01 | LED颜色 | Green - Yellow |
| 包装方式 | Tray | 屏蔽 | Shielded, EMI Finger |
| 方向 | 90° Angle (Right) | 屏蔽类型 | -20 TO 85 |
| 端接方式 | Solder | 触头类型 | FEMALE |
| 安装类型 | Through Hole | 卡扣方向（或“接线片方向”） | Up |
| 连接器类型 | Jack | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 16.51 mm | 包装数量 | 1440 |
| 连接器 - 电缆 | socket | 端接样式 | Through Hole |
| 触点数 | 8 | 接触件端接 | :Through Hole Right Angle |
| 位数 | :8 | 接触镀层厚度 | 50µin (1.27µm) |
| 触点材料 - 镀层 | SOLDER | 第一连接器安装特征 | 8p8c |
产品信息
| SPG | 1440 | 类型 | RJ-45 |
| 连接器性别 | F | 系列 | RJHSE |
| 已删除 | Compliant | 产品特性 | Board Lock |
| 匹配码 | RJHSE5384 | USOC 编码 | RJ45 |
| 类别编号 | Cat 5 | 端口数 | 1 |
| 单元数量 | 1 | 标准交期 | 10 weeks |
| 射频系列/标准 | RJHSE | 性能类别 | Cat 5 |
| 加载位置数 | 8 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5 | 工作温度 | THT°C |
