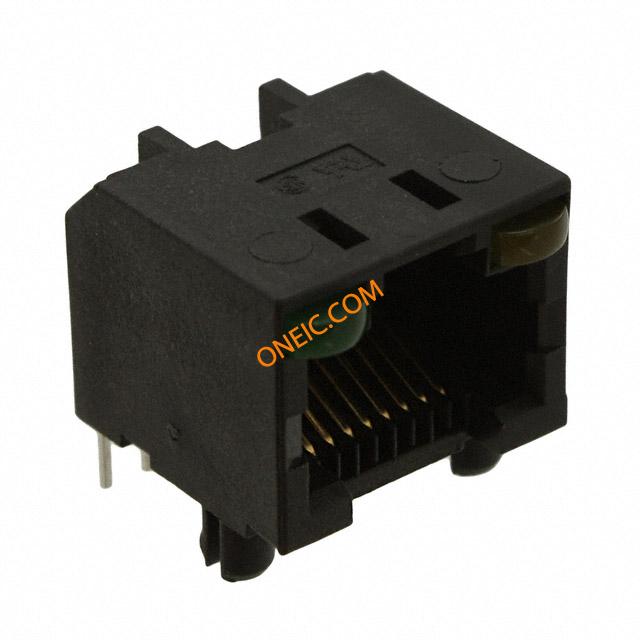

RJHSE-5084
| 制造商 | Amphenol Corporation |
| 描述 | Modular Connectors / Ethernet Connectors R/A RJ45 NONSHIELDED 8 CONT G/Y LEDS CONN MOD JACK R/A 8P8C JACK, RJ45, W/LED, 1PORT connector, mod jack, rt angle pcb, non-shielded, led1-y, led2-g, single port, rj45 |
| 分类 |
商业参数
| 其他名称 | RJHSE5084 | 零件号别名 | 625-0004 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | 36 |
| 工厂包装数量 | 36 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 1.5 A |
| 连接器类型 - 电压输入 | :- | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 高度 | 0.52 in. | 长度 | 0.62 in. |
| 重量 | 0.01 | LED颜色 | Green - Yellow |
| 包装方式 | Tray | 屏蔽 | Unshielded |
| 方向 | 90° Angle (Right) | 端接方式 | Solder |
| 安装类型 | Through Hole | 卡扣方向（或“接线片方向”） | Up |
| 行程角度 | Right | 连接器类型 | Jack |
| 接触镀层 | Gold | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 主要材料 | Modular | 端接样式 | Through Hole |
| 触点数 | :8 | 接触件端接 | :Through Hole Right Angle |
| 位数 | :8 | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | Jack | 连接器性别 | Female |
| 系列 | RJHSE | 产品特性 | Board Lock |
| USOC 编码 | RJ45 | 制造商全称 | RJHSE |
| 规格说明 | RJ45 | 端口数 | 1 |
| 性能类别 | Cat 5 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5 | 工作温度 | -55°C ~ 85°C |
