RJHSE-3384
| 制造商 | Amphenol Corporation |
| 描述 | Conn RJ-45 F 8 POS 2.03mm Solder ST Thru-Hole 12 Terminal 1 Port Cat 5 CONN MOD JACK 8P8C SHIELDED Modular Connectors / Ethernet Connectors CAT 5 MODULAR JACK HIGH TEMP JACK, RJ45, W/LED, SHIELD, 1PORT CAT5 RJ45 MODULAR JACK, 8POS, 8CONTACT, 1 PORT |
| 分类 |
商业参数
| 产品 | Modular Jacks | 其他名称 | RJHSE3384 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 1.5 A |
| 绝缘电阻 | 500 MOhms | 连接器类型 - 电压输入 | :- |
机械参数
| 颜色 | Black | 间距 | 2.03 mm |
| 重量 | 0.01 | LED颜色 | Green - Yellow |
| 包装方式 | Tray | 屏蔽 | Shielded |
| 方向 | Vertical | 端接方式 | Solder |
| 安装类型 | Through Hole | 卡扣方向（或“接线片方向”） | User Selectable |
| 连接器类型 | Jack | 接触镀层 | Gold |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 端接样式 | Through Hole |
| 触点数 | 8 | 接触件端接 | :Through Hole Vertical |
| 位数 | :8 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | RJ-45 | 连接器性别 | F |
| 系列 | RJHSE | 产品特性 | Board Lock, Panel Stops |
| USOC 编码 | RJ45 | 端口数 | 1 |
| 性能类别 | Cat 5 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5 | 工作温度 | -55°C ~ 85°C |
文档与媒体
相关型号

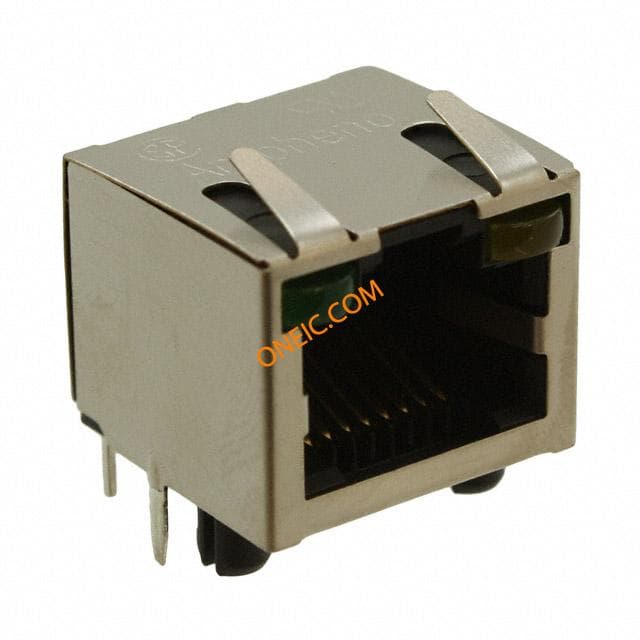

RJHSE-5384
amphenol
Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 12 Terminal 1 Port Cat 5 08P RJ45 MODJACK 1PORT YEL/GRE CONN MOD JACK R/A 8P8C SHIELDED Modular Connectors / Ethernet Connectors R/A RJ45 SHEILDED 8 CONT G/Y LEDS JACK, RJ45, W/LED, SHIELD, 1PORT CAT5 RJ45 MODULAR JACK, 8POS, 8CONTACT, 1 PORT connector, mod jack, rt angle pcb, shielded, led1-n, led2-n, single port, rj-45 Socket; RJ45; Cat:5; shielded, with LED; Pin layout:8p8c; THT
RJHSE-3384
amphenol canada, corp.
Conn RJ-45 F 8 POS 2.03mm Solder ST Thru-Hole 12 Terminal 1 Port Cat 5 CONN MOD JACK 8P8C SHIELDED Modular Connectors / Ethernet Connectors CAT 5 MODULAR JACK HIGH TEMP JACK, RJ45, W/LED, SHIELD, 1PORT CAT5 RJ45 MODULAR JACK, 8POS, 8CONTACT, 1 PORT
SS-60000-009
bel
Conn Telephone/Telecom F 8 POS 2.03mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 6

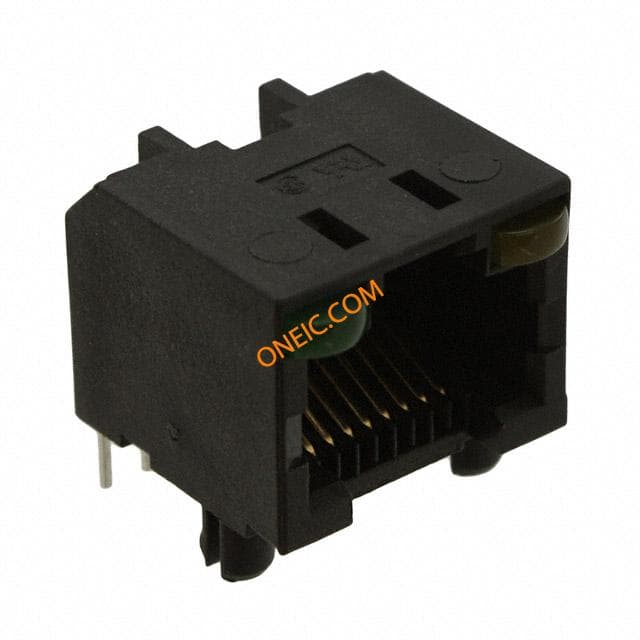

RJHSE-5084
