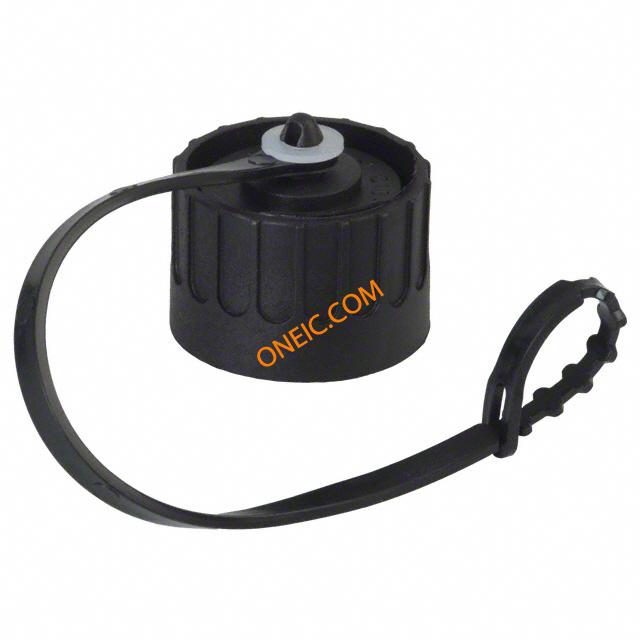

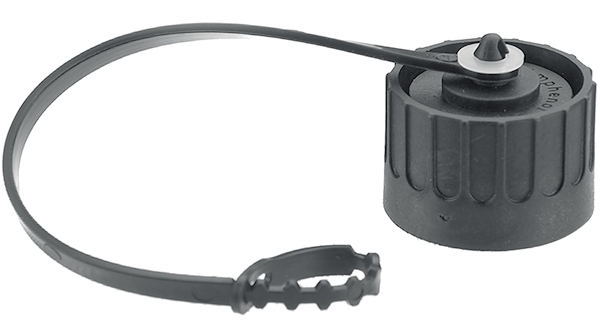

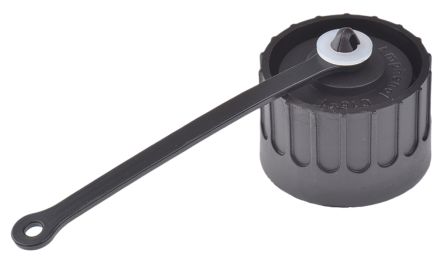

C016 00U000 010 12

制造商	Amphenol Corporation
描述	Circular DIN Connectors PROTECTIVE COVER FOR MALE CABLE CONNECTOR COVER FOR EQUIPMENT BOX 25,5 CONN CAP FOR MALE PLUG BLACK EcoMateCap for Male Cable Conn DUST CAP, FOR MALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate male cable conn, black Protection cover; Series: ECOMATE (C016); IP65,IP67 Sealing cap for cable plug, C016 00U000 010 12, Amphenol Amphenol Eco-Mate 系列插座 IP65 防尘盖
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

最小起订量	100	单位包装	50
零件号别名	81K1422	产品类别	Circular DIN Connectors
标准包装数量	50	工厂包装数量	50

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85389099	汽车级	NO
无铅定义	RoHS-conform	材料阻燃等级	:UL94V-0

电气参数

供电电压

DIN

连接器类型 - 电压输入

for male plugs, for C16 series connectors

机械参数

颜色	Black	重量	0.013
材料（通用）	Polyamide	外壳样式	Plug
重量（g）	9.69500	连接器用途	protection cover
锁定特性	threaded joint, internal thread	本体材料	:Nylon (Polyamide)
包装数量	50	连接器颜色	:Black

产品信息

SPG	50	连接器性别	Male
系列	EcoMate	匹配码	C01600U00001012
产品子类型	Dustcaps	附件类型	Cap (Cover)
适配器系列	ECOMATE (C016)	单元数量	1
标准交期	10 weeks	适用产品/相关产品	Male Cable Connector

环境参数

防护等级

IP65, IP67

文档与媒体

PDF 文档

Ecomate Circular Connectors

PDF 文档

1768929.pdf

PDF 文档

28_ecomate_e.pdf

PDF 文档

28_ecomate_052009_e.pdf

相关型号

C016 30H006 110 10

Amphenol Tuchel

Circular DIN Connectors 6+PE MALE STRT BLUE SODR SIL IN ST RELF Conn Circular M 7 POS Solder ST Cable Mount 7 Terminal 1 Port CONN MALE PLUG 6+PE SILVER BLUE CIRCULAR CONN, PLUG, 6+PE WAY, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blu Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7 Cable plug 6+PE, C016 30H006 110 10, Amphenol Amphenol Eco-Mate 系列 6 + PE路电缆安装直向连接器插头

¥45.2465

详情

C016 30H006 210 10

Amphenol Tuchel

Circular DIN Connectors 6+PE MALE STRT BLUE SODR GLD IN ST RELF CONN MALE PLUG 6+PE GOLD BLUE PLUG, FREE, SOLDER, AU, 6P+E WAY connector, plastic circ, str male cable conn, 6+gnd gold plt cont, solder term, blue

¥63.4200

详情

C016 30H006 100 10

Amphenol Tuchel

Circular DIN Connectors 6+PE MALE STRT BLUE SOLDER SILVR CONTACT CONN MALE PLUG 6+PE SILVER BLUE CIRCULAR CONNECTOR, PLUG, 6+E WAY, CABLE CONNECTOR, CIRCULAR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blu Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7

¥54.3600

详情

C016 30H006 200 10

Amphenol Tuchel

Circular DIN Connectors 6+PE MALE STRT BLUE SOLDER GLD CONTACT CONN MALE PLUG 6+PE GOLD BLUE PLUG, FREE, SOLDER, AU, 6P+E WAY connector, plastic circ, str male cable conn, 6+gnd gold plt cont, solder term, blue

¥54.3600

详情

C016 00U000 010 12

Amphenol Tuchel

Circular DIN Connectors PROTECTIVE COVER FOR MALE CABLE CONNECTOR COVER FOR EQUIPMENT BOX 25,5 CONN CAP FOR MALE PLUG BLACK EcoMateCap for Male Cable Conn DUST CAP, FOR MALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate male cable conn, black Protection cover; Series: ECOMATE (C016); IP65,IP67 Sealing cap for cable plug, C016 00U000 010 12, Amphenol Amphenol Eco-Mate 系列插座 IP65 防尘盖

¥18.1200

详情

C016 30H006 200 12

Amphenol Tuchel

Circular DIN Connectors 6+PE MALE STRT BLK SOLDER GLD CONTACT CONN MALE PLUG 6+PE GOLD BLACK CIRCULAR CONNECTOR, PLUG, 6POS, CABLE connector, plastic circ, str male cable conn, 6+gnd gold plt cont, solder term, black

¥81.5400

详情

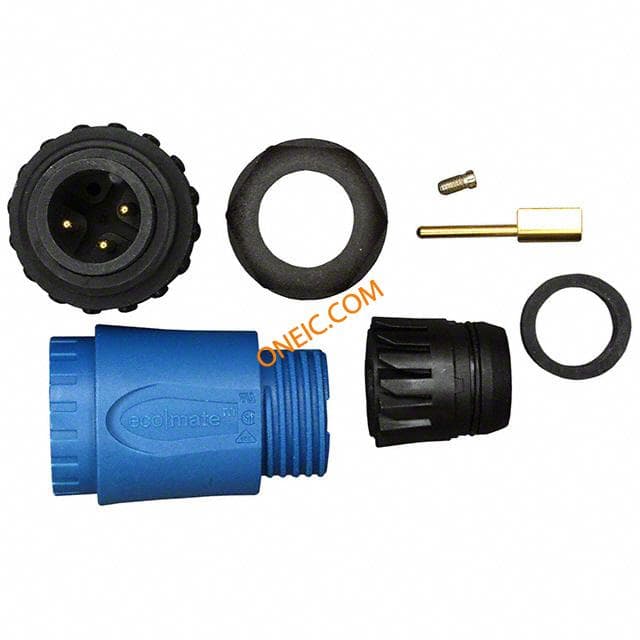

C016 20H003 200 10

Amphenol Tuchel

Circular DIN Connectors 3+PE MALE STRT BLUE SCREW GLD CONTACT CONN MALE PLUG 3+PE GOLD BLUE C016 20H003 200 10 PLUG, FREE, SCREW, AU, 3P+E WAY connector, plastic circ, str male cable conn, 3+gnd gold plt cont, screw term, blue

¥62.7300

详情

C016 20H003 110 12

Amphenol Tuchel

Circular DIN Connectors 3+PE MALE STRT BLK SCW SILV INT ST RELF Conn Circular M 4 POS Screw ST Cable Mount 4 Terminal 1 Port CONN MALE PLUG 3+PE SILVER BLACK 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, ECOMATE, 3+PE CIRCULAR CONNECTOR, PLUG, 3+PE, CABLE connector, plastic circ, str male cable conn, 3+gnd silver plt cont, screw term, blk Connector: circular; plug; with cable clamp; male; PIN:4; 400V; 16A Cable plug 3+PE, C016 20H003 110 12, Amphenol Amphenol Eco-Acoplamiento 系列 3P + E路电缆安装直向连接器插头

¥45.5396

详情

C016 20K003 100 12

Amphenol Tuchel

Circular DIN Connectors 3+PE MALE R/A BLK SCREW SILVER CONTACT CONN MALE PLUG 3+PE R/A SLV BLK 4 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Male Contacts connector, plastic circ, rt angle male cable conn, 3+pe silver plt, screw term, black Cable connector, 90° 3+PE, C016 20K003 100 12, Amphenol Amphenol Eco-Mate 系列 4路电缆安装直角连接器插头 , 公触点

¥54.3600

详情

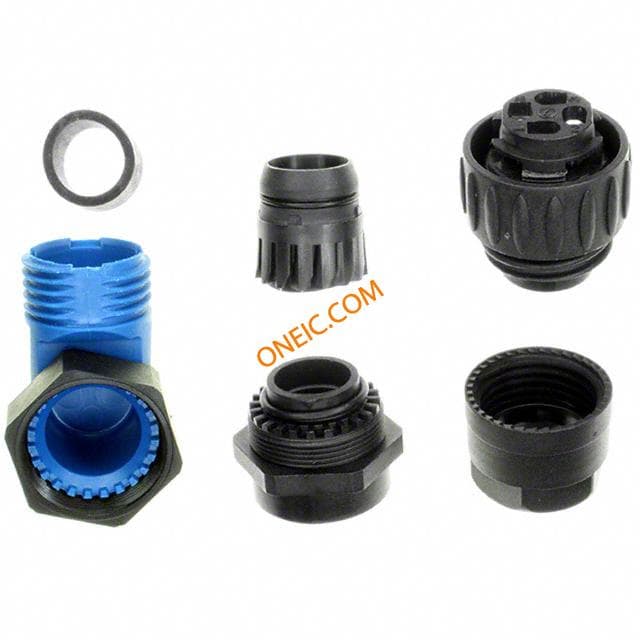

C016 20K003 100 10
