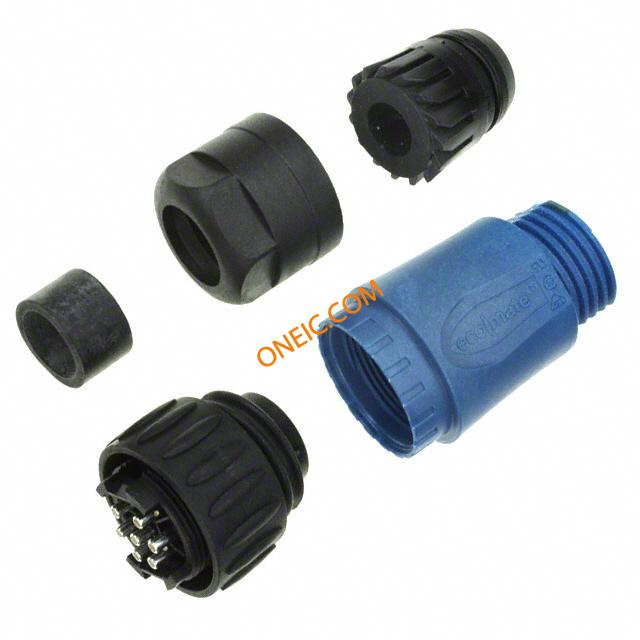

C016 30H006 100 10
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE MALE STRT BLUE SOLDER SILVR CONTACT CONN MALE PLUG 6+PE SILVER BLUE CIRCULAR CONNECTOR, PLUG, 6+E WAY, CABLE CONNECTOR, CIRCULAR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blu Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7 |
| 分类 |
商业参数
| 产品类别 | Circular DIN Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85389099 | 认证机构 | :CSA, VDE |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250V | 供电电压 | DIN |
| 接触电阻 | :5mohm | 击穿电压 | :4000V |
| 最大额定电流 | 12A | 绝缘电阻 | :10Mohm |
机械参数
| 颜色 | Blue | 重量 | 0.041 |
| 包装方式 | Bulk | 导线线规 | 20 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder | 重量（g） | 38.14000 |
| 触头类型 | Pin | 安装类型 | Free Hanging (In-Line) |
| 释放力 | :30N | 行程角度 | Straight |
| 电缆直径 | 6 mm to 12.5 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | :Straight |
| 连接器用途 | Threaded | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Nylon 6.6 (Polyamide 6.6) |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 包装数量 | 50 | 主要材料 | DIN |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Blue / Black |
| 触点数 | 6 | 接触件端接 | :Solder |
| 介电材料 | Polyamide | 位数 | 7 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 6 + 1 Ground (PE) | 线规或范围 - mm² | :0.75mm² |
| 触点材料 - 镀层 | silver plated | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | 6+PE | ||
产品信息
| SPG | 50 | 类型 | Cable Plug |
| 连接器性别 | :Plug | 系列 | eco mate |
| 产品特性 | Cable Clamp | 制造商全称 | C016 Series |
| 产品子类型 | Connectors | 适配器系列 | ECOMATE (C016) |
| 单元数量 | 1 | 射频系列/标准 | C016 |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP65, IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 125°C | ||
