点击放大查看

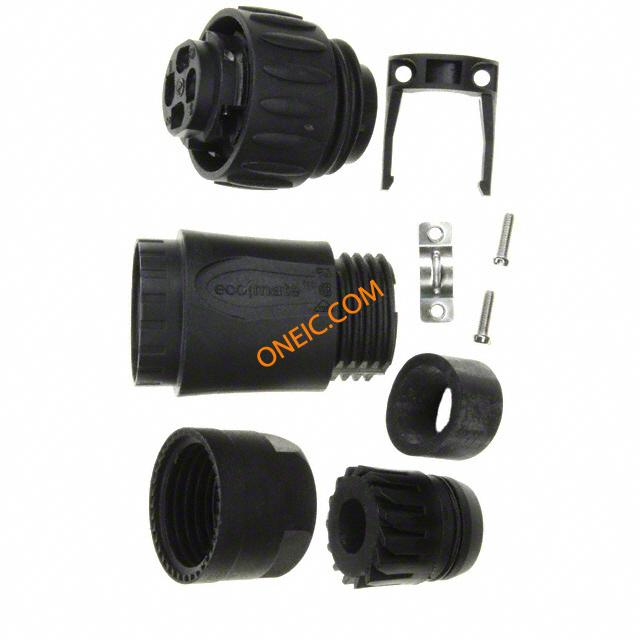

C016 20H003 110 12
| 制造商 | |
| 描述 | Circular DIN Connectors 3+PE MALE STRT BLK SCW SILV INT ST RELF Conn Circular M 4 POS Screw ST Cable Mount 4 Terminal 1 Port CONN MALE PLUG 3+PE SILVER BLACK 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, ECOMATE, 3+PE CIRCULAR CONNECTOR, PLUG, 3+PE, CABLE connector, plastic circ, str male cable conn, 3+gnd silver plt cont, screw term, blk Connector: circular; plug; with cable clamp; male; PIN:4; 400V; 16A Cable plug 3+PE, C016 20H003 110 12, Amphenol Amphenol Eco-Acoplamiento 系列 3P + E路 电缆安装 直向 连接器 插头 |
| 分类 |
商业参数
| 零件号别名 | 81K1478 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366990 |
| 抗辐射加固 | No | 认证机构标志 | UL Recognized/CSA/VDE |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 400V | 供电电压 | DIN |
| 最大额定电流 | 16A | 连接器类型 - 电压输入 | with cable clamp |
机械参数
| 颜色 | Black | 重量 | 0.04 |
| 直径 | 30 mm | 包装方式 | Bulk |
| 出线方向 | Yes | 导线线规 | 20-14 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Screw | 重量（g） | 42.00000 |
| 触点形式 | 3Signal/1Ground | 触头类型 | 3Signal/1Ground |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 电缆直径 | 6 mm to 12.5 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | Plastic |
| 连接器用途 | Threaded | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Nylon 6.6 (Polyamide 6.6) |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 总长度 | 73 mm | 包装数量 | 50 |
| 主要材料 | DIN | 连接器 - 电缆 | plug |
| 端接样式 | Screw | 第一触头极性 | M |
| 连接器颜色 | black | 触点数 | 4 |
| 接触件端接 | :Screw | 介电材料 | Polyamide |
| 位数 | 4 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 典型触点布局 | 3 + 1 Ground (PE) |
| 触点材料 - 镀层 | silver plated | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | 3+PE | ||
产品信息
| SPG | 50 | 类型 | Circular |
| 连接器性别 | PL | 系列 | eco mate |
| 产品特性 | Cable Clamp, Strain Relief | 制造商全称 | C016 Series |
| 产品子类型 | Connectors | 适配器系列 | ECOMATE (C016) |
| 单元数量 | 1 | 射频系列/标准 | C016 |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 100°C | ||
