点击放大查看
132119
| 制造商 | |
| 描述 | RF Connectors SMA BLHD JCK 174 316 GOLD Conn SMA RCP 50Ohm Crimp ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma bulkhead crimp jack;for rg174;316;LMR100 cable;50 ohm RF Connectors / Coaxial Connectors SMA BLHD JCK 174 316 GOLD RF COAXIAL, SMA, JACK, 50OHM, CRIMP connector, rf coaxial, sma bulkhead crimpjack, for rg174, 316, LMR100 cable, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1223 |
| 零件号别名 | 319-0172 99H5010 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 375V |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
机械参数
| 深度 | 8 | 长度 | 0.78 in. |
| 重量 | 0.005 | 包装方式 | Bulk |
| 电缆类型 | RG-174, RG-188A, RG-316, Belden 7805A | 本体表面处理 | Gold |
| 电缆组 | RG-174, 316, LMR-100 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 壳体镀层 | Gold |
| 连接器样式 | SMA | 连接器用途 | Threaded |
| 触头材料 | Beryllium Copper | 壳体材料 | Brass |
| 总长度 | 19.8 | 主要材料 | SMA |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Bulkhead |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 系列 | :- | 产品特性 | Heat Shrink Tubing |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | SMA | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
相关型号
901-9876-RFX
amphenol
Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str plug;crimp/solder;captive cont;rg58;50 ohm RF Connectors / Coaxial Connectors STRT PLG 58 141 Ni CONNECTOR, QMA, RF COAXIAL, CRIMP

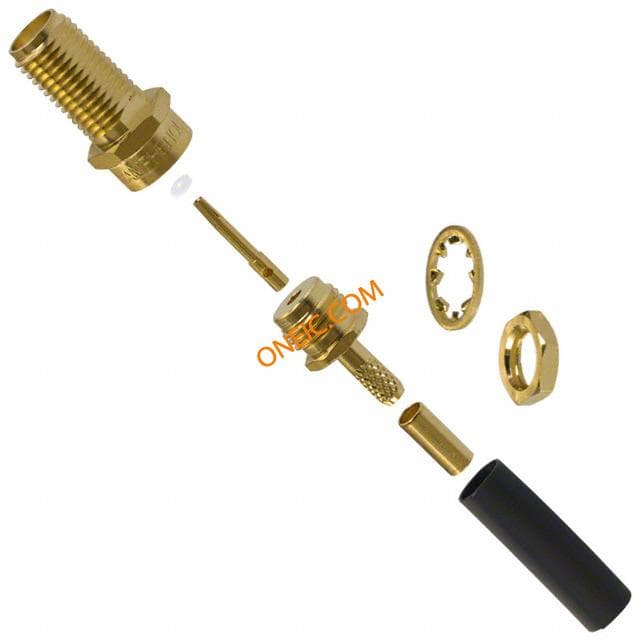

901-9610-3
amphenol
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Panel Mount Gold Over Nickel CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma bulkhead jack;crimp/solder;rg174;179;187;188;316;gold RF Connectors / Coaxial Connectors BLHD JCK 316/174 GLD connector, rf coaxial, sma bulkhead jack, crimp/solder, rg174, 179, 187, 188, 316, gold

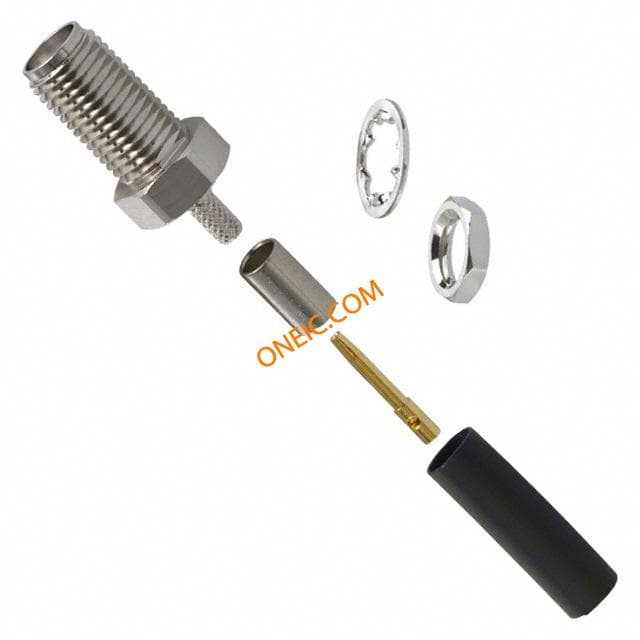

901-9879-RFX
