点击放大查看

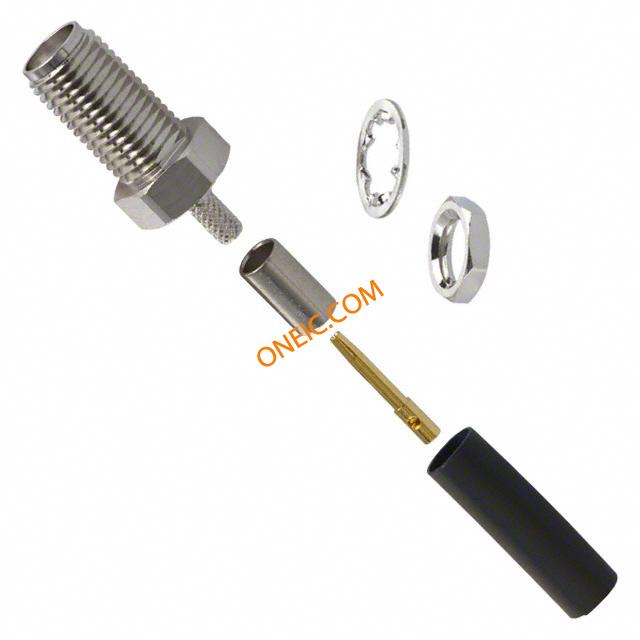

901-9879-RFX
| 制造商 | |
| 描述 | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma bulkhead jack;crimp/solder;rg174;188;316;nickel plt RF Connectors / Coaxial Connectors BLHD JCK 174 316 Ni |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 713-4325 83F6724 901-9879-RFX |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
| 阻抗（最大）（Zzt） | 50 Ohm | 绝缘电阻 | 5000 MOhms |
| 连接器类型 - 电压输入 | Solder | ||
机械参数
| 包装方式 | Bulk | 电缆类型 | RG-174, RG-188A |
| 本体表面处理 | Nickel | 电缆组 | RG-174, 188A, 316 |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Panel | 壳体镀层 | Nickel |
| 连接器样式 | SMA, RFX | 触头材料 | Beryllium Copper |
| 总长度 | 21.8 mm | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Tetrafluoroethylene Fluorocarbon |
| 中心触点镀层工艺 | Gold | 外部壳体颜色 | Silver |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Bulkhead |
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 产品特性 | Heat Shrink Tubing | 极性 | Standard |
| 主要用途 | Heat Shrink Tubing | 连接类型 | Coaxial Cable |
| 射频系列/标准 | SMA | 输出配置 | Panel Mount, Bulkhead - Front Side Nut |
环境参数
| 插拔次数 | 100 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
