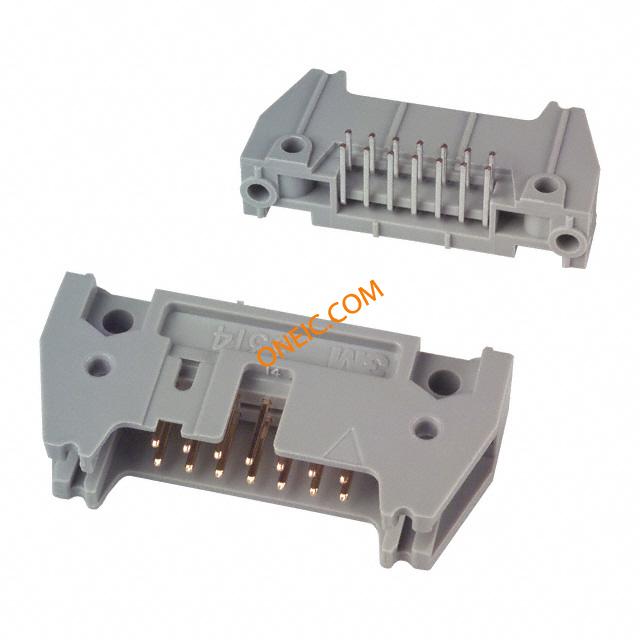

N3314-5002RB
| 制造商 | 3M Company |
| 描述 | Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole PROTECT HEADER RT ANG 14 CONTACT Headers & Wire Housings 14P R/A SOLDER TAIL NO LATCH/EJECTOR ConnEjectorHeaderHDR14POS2.54mmSolderRAThru-Hole Pin header DIN 41651 14P, N3314-5002RB, 3M |
| 分类 |
商业参数
| 零件号别名 | 05111165062 80400027738 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电容 | 15.24 | 测试电压 | 0.5 |
| 额定电压 | 1 kV | 极数 | 14 |
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Black | 深度 | 17.3 mm |
| 间距 | 2.54 mm | 高度 | 8.6 mm |
| 包装方式 | Bulk | 壳体颜色 | 27.5 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 37.21 mm |
| 端接样式 | Through Hole | 触点数 | 14 |
| 位数 | 14 | 第一连接器极性 | Male |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 3000 | 已删除 | Compliant |
| 产品子类型 | Headers | 放大器类型 | 37.1 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | ||
