首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）3385-6000

点击放大查看

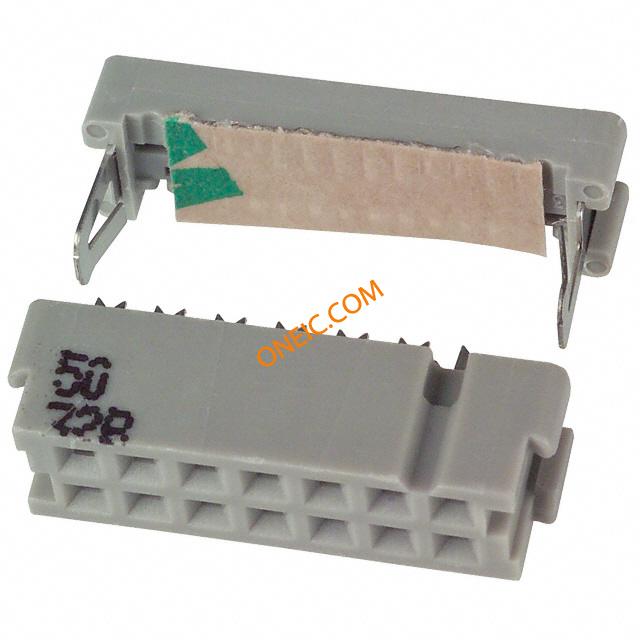

3385-6000

制造商	3M Company
描述	ヘッダ & ワイヤハウジング 14P IDC SOCKET .100" Ã .100" Wiremount for .050" Pitch Cable SOCKET CONN 14 CONTACT OPEN GOLD 14 way IDC polarised socket Headers & Wire Housings 14P IDC SOCKET SOCKET, IDC, 14WAY WIRE-BOARD CONN, SOCKET, 14POS, 2.54MM Socket;GlassFilledPolyester;CopperAlloy;Nickel(Underplating,USlot) 3M 2行 14路 2.54mm节距直角母 IDC 连接器 , 电缆安装
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400731561 80610078950	产品类别	Headers & Wire Housings
标准包装数量	300	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85366930
RoHS合规（认证）	Yes

电气参数

量程（°/s）

:3M - 3000 Series

机械参数

颜色	Gray	间距	0.100" (2.54mm)
重量	1 lb	包装方式	Bulk
导线类型	Ribbon Cable	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Gold
安装样式	Cable	排数	2
触头材料	Copper Alloy	壳体材料	PBT
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	14
接触件端接	:IDC / IDT	位数	14
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Ribbon Cable	连接器性别	Female
系列	3000	产品特性	Feed Through
CAD图纸	3D CAD Model	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

+105°C

文档与媒体

在线文档

3000 Series Wiremount Socket

PDF 文档

1371750.pdf
