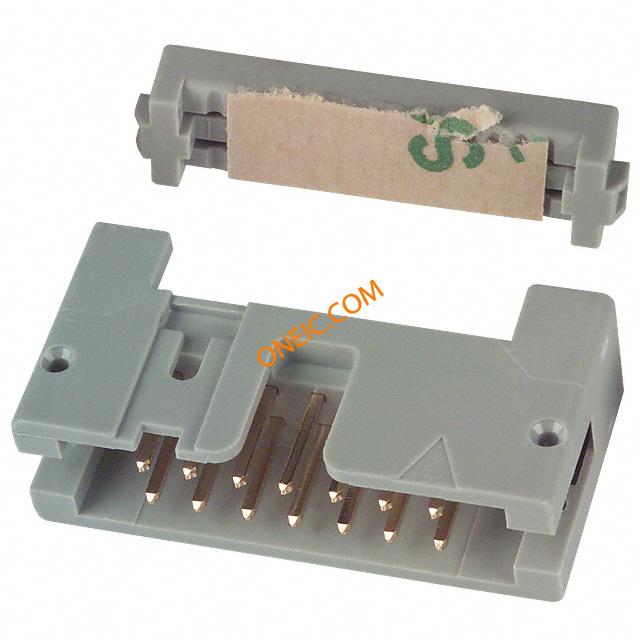

4614-6001

点击放大查看

4614-6001

制造商
3M Company
描述Conn Ejector Header PL 14 POS 2.54mm IDT RA Cable Mount .100" × .100" Connector For .050" Pitch Cable PLUG CONNECTOR 14 POS W/O FLANGE 3M 4600 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Headers & Wire Housings 14P OPEN END PLUG IDC SHROUDED HEADER Conn;Rect;Plug;Wiremount;0.100in;for0.050inCable;4600Ser. Pin strip DIN 41651 14P, 4614-6001, 3M 3M 4600 系列 2.54mm节距 14路 (2排) 直角 IDC 连接器, IDT端接, 1A , 电缆安装
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05400735673 80610170567产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS CompliantRoHS合规（认证）Yes
材料阻燃等级UL 94 V-0

电气参数

测试电压1极数14
最大额定电流1A

机械参数

颜色Gray深度8.4 mm
间距2.54 mm高度13.34 mm
重量1.600 lbs包装方式Bulk
导线类型Discrete or Ribbon Cable电缆类型Discrete or Ribbon Cable
导线线规26-28 AWG, Stranded or Solid方向直角
排间距0.100" (2.54mm)端接方式IDT
触点形式Male Pin触头类型Male Pin
引脚间距0.100" (2.54mm)外壳颜色Gray
安装类型Free Hanging (In-Line)连接器类型Plug
接触镀层Gold Over Nickel安装样式Wire
排数2触头材料Copper Alloy
壳体材料Polybutylene Terephthalate (PBT)总长度27.9 mm
端接排数IDT电缆端接方式IDC
第一触头极性Pin (Male)触点数14
位数14第一连接器极性Male
接触镀层厚度30µin (0.76µm)

产品信息

类型Ejector Header连接器性别PL
系列4600产品特性Feed Through
主要用途Feed Through产品子类型Headers
放大器类型27.9输出配置Free Hanging (In-Line)
应用细节Wire-to-Wire

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
mediawebserver?mwsId=66666UuZjcFSLXTt4Xf6NXz6EVuQEcuZgVs6EVs6E666666--

相关型号

3385-6600

3385-6600

3m interconnect solutions

Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount 14P WIREMOUNT SOCKET .100" × .100" Wiremount for .050" Pitch Cable SOCK CONN 14 CONT OPEN W/POL GLD 14 way IDC bump polarised socket Headers & Wire Housings 14P IDC SOCKET SOCKET, IDC, 14WAY SOCKETCONNECTOR;14CONTACTS Multipole socket DIN 41651 14P, 3385-6600, 3M 3M 2行 14路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装

¥15.5586
详情

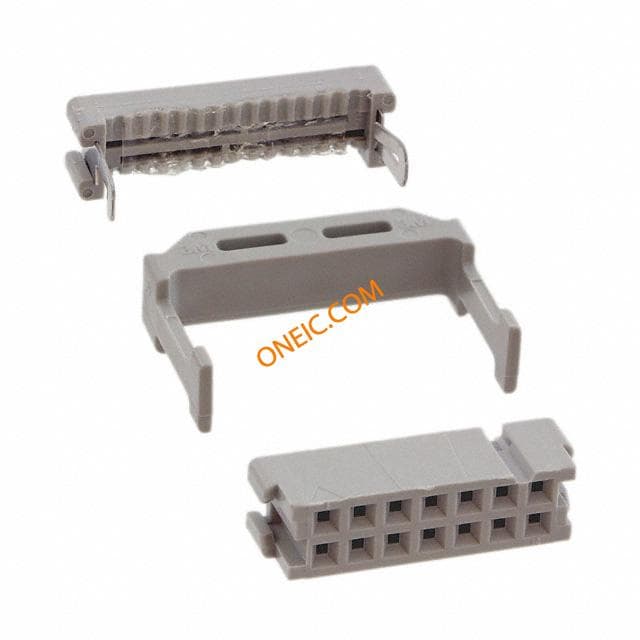

3385-6014
