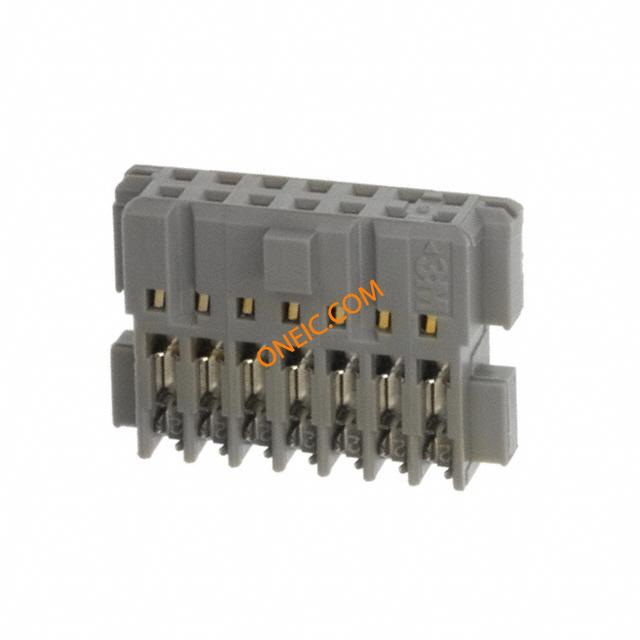

点击放大查看
CHG-2014-J01010-KEP
| 制造商 | 3M Company |
| 描述 | Headers & Wire Housings 14P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 14POS 24-22 AWG WIRE-BOARD CONN, SOCKET, 14POS, 2.54MM |
| 分类 |
商业参数
| 零件号别名 | 05400766875 80610425839 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| RoHS合规（认证） | Yes | ||
电气参数
| 量程（°/s） | :3M - CHG Series | 最大额定电流 | 2 A |
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 1 lb | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 22-24 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 14 |
| 接触件端接 | :IDC / IDT | 位数 | 14 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ribbon Cable | 连接器性别 | :Receptacle |
| 系列 | CHG | 产品特性 | Closed End, Polarizing Key |
| 产品子类型 | Receptacles / Sockets - Housings | ||
