点击放大查看
89114-0003
| 制造商 | 3M Company |
| 描述 | 14/SKT/DUAL RECESS CVR/PRASB/NO CB/SR/30AVG .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 14 POS IDC W/STR REL Headers & Wire Housings 14P IDC SOCKET W/O CNTRBMP STRN RLF |
| 分类 |
商业参数
| 零件号别名 | 05400754457 80610706428 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 500 | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 5 lbs | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 电缆端接方式 | IDC | 位数 | 14 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 产品特性 | Feed Through, Strain Relief | ||
文档与媒体
相关型号
3314-2002
3M Electronic Solutions Division
Headers & Wire Housings 3 WALL HDR 14PIN STR SOLDRTL F.062BRD .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 14POS STR NO LATCH
3314-1003
3m interconnect solutions
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole CONN HEADER 14POS R/A NO LATCH
N3314-6502RB
3m interconnect solutions
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole CONN HEADER 14PS STR SHORT LATCH Headers & Wire Housings 14P STRT HEADER SHRT SNAPIN LTC EJCT
N3314-600T02RB
3m interconnect solutions
Conn Ejector Header HDR 14 POS 2.54mm Press Fit ST Thru-Hole Headers & Wire Housings 14POS STR NO LATCH HEADER CONN HEADER 14POS STR NO LATCH

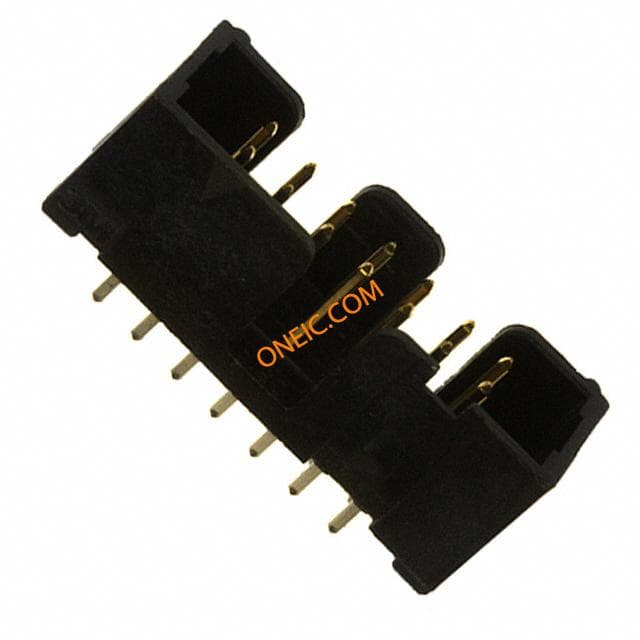

D2514-6002-AR
