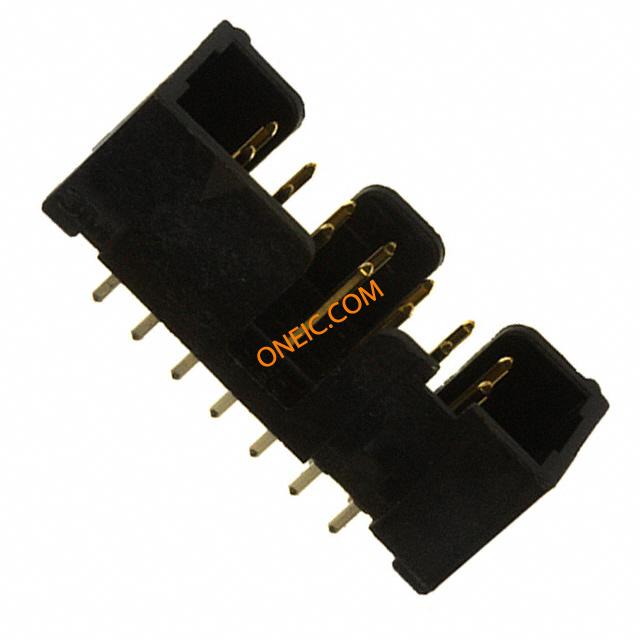

D2514-6002-AR
| 制造商 | 3M Company |
| 描述 | Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole CONN HEADER 14POS VERT 10GOLD Headers & Wire Housings 14P 4WALL HEADER STRT L-PRO THRU-HOLE WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Header;LowProfile,4-Wall;0.1Inch;HighTemp;Straight;SMT;14Cnts |
| 分类 |
商业参数
| 零件号别名 | 05111990713 80001204405 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 量程（°/s） | :3M - D2500 Series | 额定电压 | 1 kV |
| 开关功能 | Unlatched | 最大额定电流 | 2 A |
机械参数
| 颜色 | Black | 深度 | 8.59 mm |
| 间距 | 2.54 mm | 高度 | 9.91 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyester | 总长度 | 25.1 mm |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 14 | 接触件端接 | :Through Hole Vertical |
| 位数 | 14 | 接触长度 - 配合 | 0.243" (6.17mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | D2500 | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | ||
