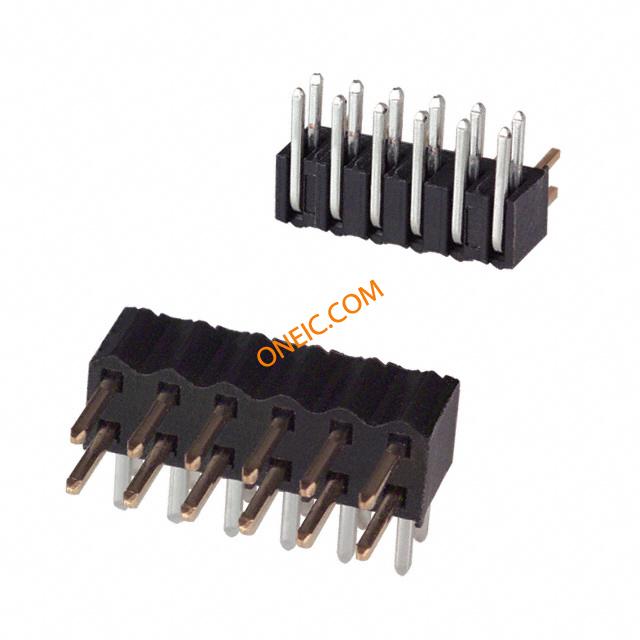

151212-7422-TB
| 制造商 | 3M Company |
| 描述 | Headers & Wire Housings 12P R/A SOLDER TAIL 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12POS2MM HEADER RT/DUAL GLD Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;12;1.5A |
| 分类 |
商业参数
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准 | ULListed |
| 认证机构 | cUL,UL | RoHS合规（认证） | No |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压值 | 500VDC | 最大额定电流 | 1.5A |
| 绝缘电阻 | 5x10^9Ohms(Max.)@250VDC | ||
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 镀层 | Gold-MIL-G-45204,TypeII,GradeC | 包装方式 | Bulk |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 0.118" |
| 安装类型 | Through Hole, Right Angle | 行程角度 | Right |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold |
| 排数 | 2 | 端子样式 | RightAngleSolderTail |
| 触头材料 | CopperAlloy | 壳体材料 | HighTemperaturePlastic(PCT/LCP) |
| 总长度 | 0.472" | 主要材料 | Industrial |
| 尺寸/外形 | 0.453in.+0.005in.,-0.010in.Lx0.155in.Wx0.059in.H | 插针孔直径 | 0.0787" |
| 触点数 | 12 | 位数 | 12 |
| 绝缘材料 - 材质 | GlassFilledPolyester | 接触长度 - 配合 | 0.152" (3.86mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
