点击放大查看

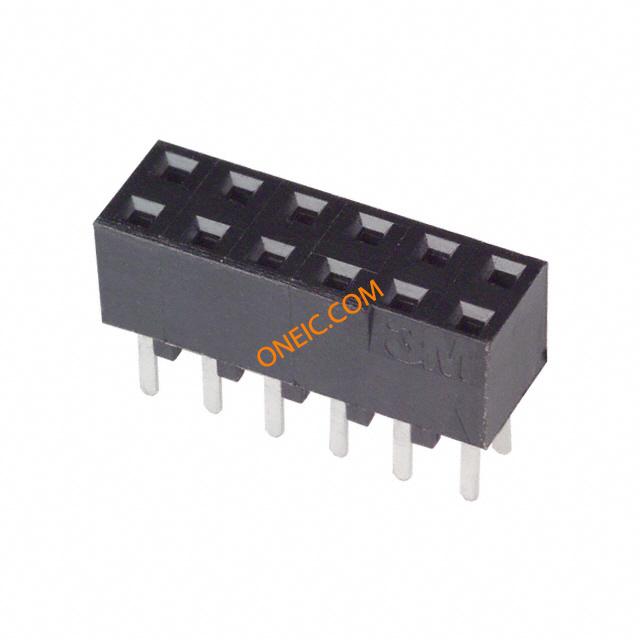

150212-6002-TB
| 制造商 | 3M Company |
| 描述 | ヘッダ & ワイヤハウジング 12 POS 2MM SOLDER ST THRU-HOLE SKT 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 12POS 2MM SOCKET VERT PC MT Socket;Pak20Boardmount;CopperAlloy;GlassFilledPCT;1.5A;12;Gold |
| 分类 |
商业参数
| 标准包装数量 | 322 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准 | ULListed,UL94V-0(FlammabilityRating) |
| 认证机构 | cUL,UL | RoHS合规（认证） | No |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压值 | 500VDC@SeaLevel | 最大额定电流 | 1.5A |
| 绝缘电阻 | >5x10^9Ohms@250VDC | ||
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 镀层 | Gold | 包装方式 | Tray |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 引脚长度（针脚） | 0.1" |
| 插座深度（或方向） | Pak20Boardmount | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 端子样式 | SolderTail | 触头材料 | CopperAlloy |
| 壳体材料 | GlassFilledPolyester | 总长度 | 0.467" |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 0.467in.Lx0.151in.Wx0.177in.H |
| 插针孔直径 | 0.79" | 触点数 | 12 |
| 位数 | 12 | 绝缘材料 - 材质 | GlassFilledPCT |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | PCBSocket | 产品特性 | Boardmount |
| 制造商全称 | 1502Series | 加载位置数 | All |
环境参数
| 工作温度 | -55to+105°C | 结工作温度 | 105°C |
