152212-0100-GB
| 制造商 | 3M Company |

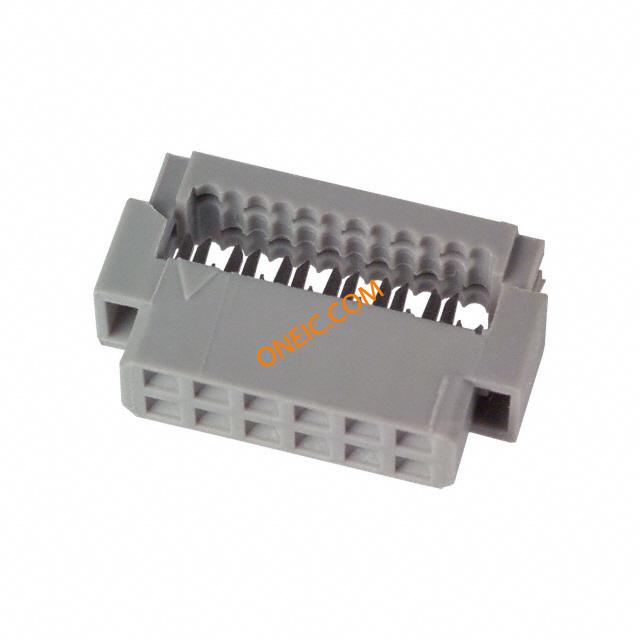

| 描述 | Conn IDC Connector SKT 12 POS 2mm IDT RA Cable Mount Headers & Wire Housings 12P LO PRO SOCKET CONN 12POS 2MM IDC SOCKET GOLD WIRE-BOARD CONNECTOR, SOCKET, 12POS, 2MM Socket;Pak20Wiremount;1mmpitchcable;CopperAlloy;1A;1000V(RMS) |
| 分类 |
商业参数
| 零件号别名 | 05113827593 80610492680 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 125 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | ULListed,ULRecognized,cULRecognized,RoHSCompliant |
| 海关税号 | 85369010 | 认证机构 | cUL,UL |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压值 | 1000V(RMS) | 最大额定电流 | 1A |
| 绝缘电阻 | >1x10^9Ohms | ||
机械参数
| 颜色 | Gray | 间距 | 2 mm |
| 重量 | 0.002 | 镀层 | Gold |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 出线方向 | LowProfile | 导线线规 | 28 AWG |
| 排间距 | 0.079" (2.00mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 插座深度（或方向） | Pak20Wiremount |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | :Copper Alloy | 壳体材料 | GlassFilledPolyester |
| 总长度 | 0.67" | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 0.67in.Lx0.16in.Wx0.29in.H | 导线端接方式 | 28AWGStranded |
| 电缆端接方式 | IDC | 插针孔直径 | 0.079" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 接触件端接 | :IDC / IDT |
| 位数 | 12 | 绝缘材料 - 材质 | GlassFilledPolyester(PBT) |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | 1522 | 产品特性 | Feed Through |
| 制造商全称 | 1522Series | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | 1mmpitchcable | ||
环境参数
| 工作温度 | -67to+221°F | 结工作温度 | +105°C |
相关型号
151212-8422-RB
3m interconnect solutions

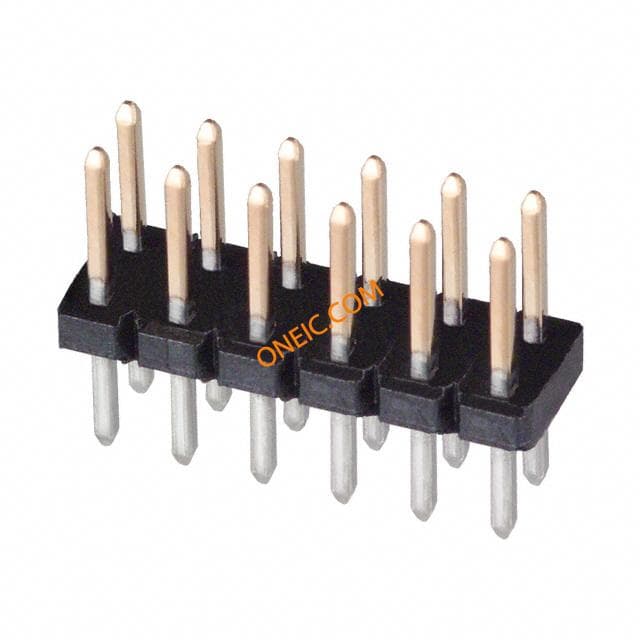

Conn Unshrouded Header HDR 12 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12POS 2MM HEADER DUAL GOLD Headers & Wire Housings 12P STRT HDR .118 TAIL 30U AU
151212-7322-RB
3m interconnect solutions
Conn Unshrouded Header HDR 12 POS 2mm Solder RA Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12POS 2MM HEADER DUAL R/A
151212-2420-RB
3m interconnect solutions
Conn Unshrouded Header HDR 12 POS 2mm Solder ST SMD Tray 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN HEADER 2MM 12PS DL SMD GOLD
155212-5303-RB
3m interconnect solutions

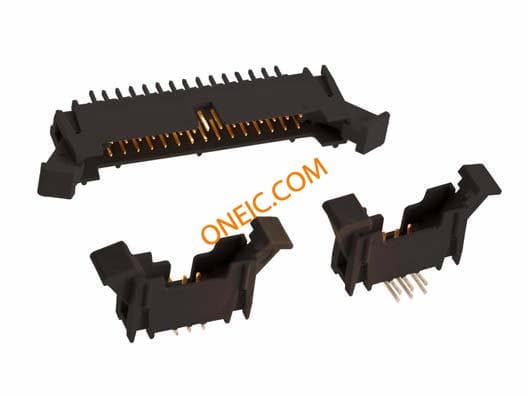

Conn Ejector Header HDR 12 POS 2mm Solder RA Thru-Hole 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 12POS R/A .155"
100810
3m interconnect solutions
100810SCC1000SERIES8X10STATICSHIELDINGBAG100EACH Anti-Static Control Products 8X10 pkg./100 Anti-Static Control Products 8X10" pkg./100 BAG STATIC METL-IN 8X10" 1=1 BAG SCC 1000 Static Shield Bag/Metal-IN (Size 8 x 10) ANTI-STATIC STORAGE BAGS SCC1000StaticShieldBag/Metal-IN(Size8x10) Protection bag; ESD version; metallised, open; W:203mm; L:254mm
151212-8422-TB
3M Electronic Solutions Division
Headers & Wire Housings 12P STRT SOLDER TAIL Conn Unshrouded Header HDR 12 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12POS 2MM HEADER DUAL GOLD
151212-7422-TB
3M Electronic Solutions Division

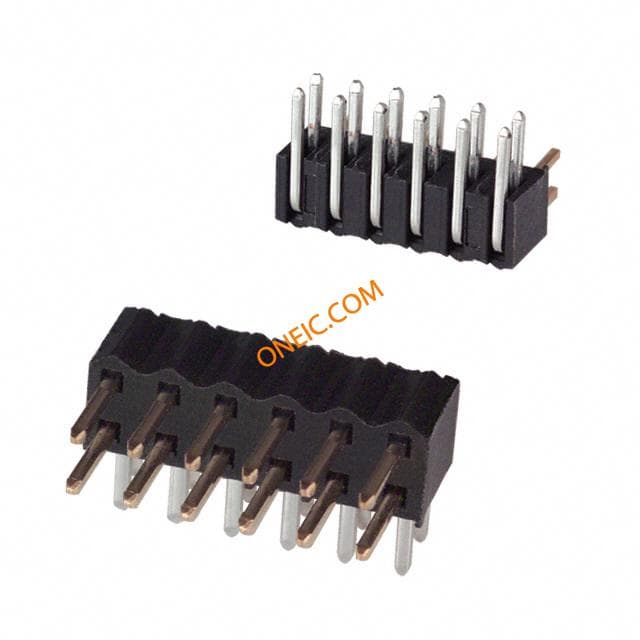

Headers & Wire Housings 12P R/A SOLDER TAIL 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12POS2MM HEADER RT/DUAL GLD Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;12;1.5A
151212-8322-TB
3M Electronic Solutions Division
Headers & Wire Housings 12P STRT SOLDER TAIL 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN HEADER 2MM 12PS DL T/H 30AU Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;12;1.5A
155212-6303-RB
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 12P STRT PRESSLATCH .155 TAIL LENGTH 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 12POS VERT .155"
155212-2300-RB
3M Electronic Solutions Division
Headers & Wire Housings 12P SURF MT 30u GOLD PRESSON LATCH 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 12POS VERT SMT
155212-6302-RB
3m interconnect solutions
Conn Ejector Header HDR 12 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 12POS VERT .112" Headers & Wire Housings 12P STRT PRESSLATCH .112 TAIL LENGTH
151212-7422-TH
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 12P R/A SOLDER TAIL CONN HEADER 2MM 12PS DL R/A 15AU Headers & Wire Housings 12P R/A SOLDER TAIL
155212-5202-RB
3m interconnect solutions
Conn Ejector Header HDR 12 POS 2mm Solder RA Thru-Hole CONN HEADER 2MM 12POS R/A .112"
155212-5302-RB
3M Electronic Solutions Division

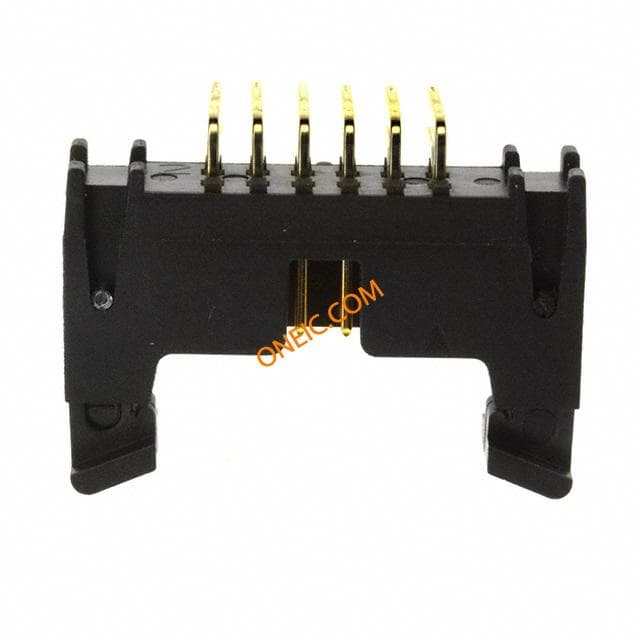

Headers & Wire Housings 12P R/A PRESON LATCH .112 TAIL LENGTH 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 12POS R/A .112" Pitch Spa
ADIS16265/PCBZ
analog devices

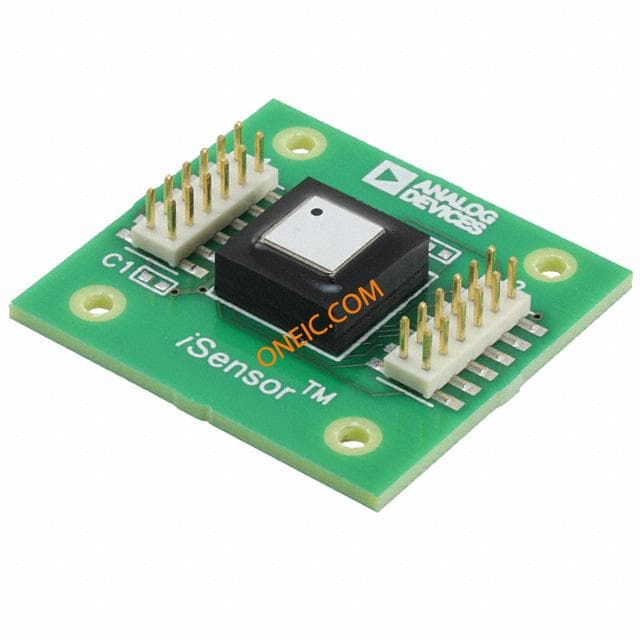

Evaluation Board For Programmable Low Power Gyroscope BOARD EVALUATION FOR ADIS16265 Acceleration Sensor Development Tools ADIS16265 Eval Brd ADIS16265/PCB EVAL. BD. PB FREE Analog Devices 评估测试板
151212-7422-RB
3m interconnect solutions
Conn Unshrouded Header HDR 12 POS 2mm Solder RA Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12PS 2MM HEADER R/A DL GOLD Headers & Wire Housings 12P RA HDR .118 TAIL 30U AU
3448-152212
3m interconnect solutions

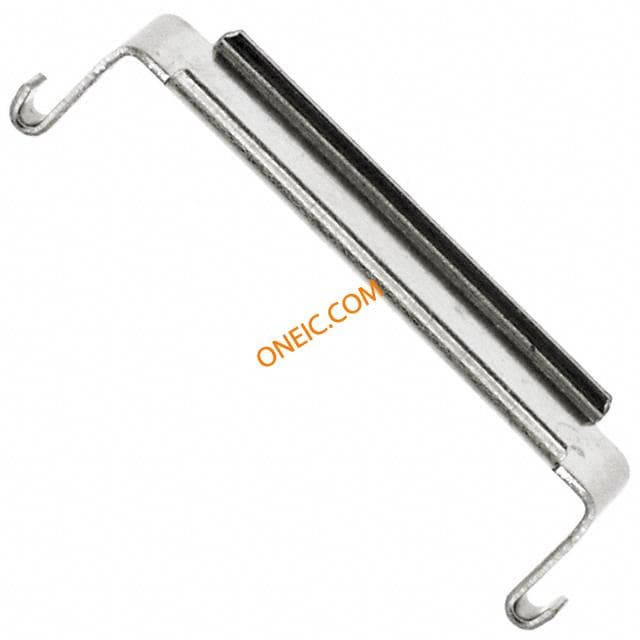

Connector Accessories Wire Mount Socket Strain Relief 12 POS Headers & Wire Housings 12P STRAIN RELIEF STRAIN RELIEF 12POS 2MM StrainRelieffor12posWiremountSocket,2mmx2mm,1mmpitch
