点击放大查看

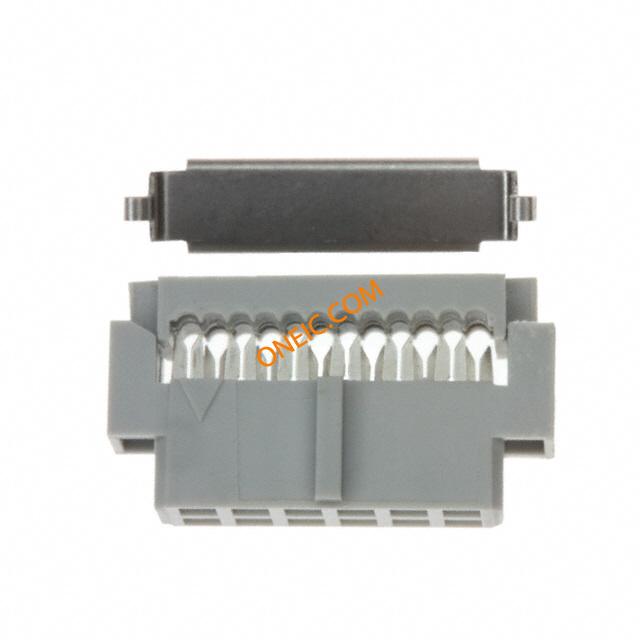

152212-0113-GB
| 制造商 | 3M Company |
| 描述 | Conn IDC Connector SKT 12 POS 2mm IDT RA Cable Mount Headers & Wire Housings 12P SKT OPEN COVER CONN 12POS 2MM IDC SOCKET 30AU |
| 分类 |
商业参数
| 零件号别名 | 05113827602 80610492771 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 125 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Gray | 间距 | 2 mm |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 电缆类型 | Ribbon Cable | 导线线规 | 28 AWG |
| 排间距 | 0.079" (2.00mm) | 端接方式 | IDT |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 引脚间距 | 0.079" (2.00mm) | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 触点数 | 12 | 位数 | 12 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | 1522 | 产品特性 | Feed Through; Polarizing Key, Strain Relief |
| 主要用途 | Feed Through; Polarizing Key, Strain Relief | 产品子类型 | Receptacles / Sockets - Housings |
| 输出配置 | Free Hanging (In-Line) | ||
