744778910
| 制造商 | Würth Elektronik GmbH & Co. KG |
| 描述 | Fixed Inductors WE-PD Inductor 10uH 1kHz 1.83A INDUCTOR POWER 10UH 1.83A SMD CHOKE, SMD, 10UH Wurth 屏蔽 绕线贴片电感器, 10 μH ±20%, 1.83A Idc |
| 分类 |
商业参数
| 产品 | SMD Power Inductors | 其他名称 | 732-1177-2 |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85045095 | ||
电气参数
| 核心类型 | :Shielded | 阻抗 | :0.064ohm |
| 容差 | ±20% | 电感量 | 10µH |
| 量程（°/s） | :WURTH ELEKTRONIK - WE-PD Series | 测试频率 | 1kHz |
| 电感量范围 | :± 20% | 直流电阻（DCR） | 72 mOhm Max |
| 最大额定电流 | 1.83A | 直流电阻（DCR）（最大） | :0.072ohm |
| 自谐振频率 | 23MHz | 饱和电流（Isat） | :2.2A |
| 串联饱和电流 | 2.2A | 初始电阻（最小） | 72 mOhms |
| 通态电流（It (RMS)）（最大） | :1.83A | ||
机械参数
| 宽度 | 7.3 mm | 重量 | 0.0006 |
| 包装方式 | Tape & Reel (TR) | 屏蔽 | Shielded |
| 磁芯材料 | Ferrite | 安装类型 | Surface Mount |
| 引脚数 | :2 | 封装形式 | Non Standard |
| 磁芯材质 | Ferrite | 主要材料 | :Plastic |
| 尺寸/外形 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 端接样式 | SMD/SMT |
| 总体尺寸 | :7.3mm x 7.3mm x 3.2mm | 安装高度（最大） | 0.138" (3.50mm) |
产品信息
| 类型 | Wirewound | 系列 | WE-PD |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
LM22675MRE-ADJ/NOPB
texas instruments
Conv DC-DC Single Inv/Step Down 4.5V to 42V 8-Pin PSOP EP T/R Conv DC-DC Single Inv/Step Down 4.5V to 42V 8-Pin HSOP EP T/R IC REG BUCK ADJ 1A 8SOPWRPAD LM22675MRE-ADJ/NOPB, Switching Regulator,, Buck Controller 1A, Adjustable, 1.285V min., 500kHz, 8-Pin PSOP EP Voltage Regulators - Switching Regulators 1A STEP-DOWN VLTG REG IC, SW REG DC-DC converter; step down; Uin:4.5÷42V; Uout:1.285÷42V; 1A; SOP8 1A SIMPLE SWITCHER®, Step-Down Voltage Regulator with Precision Enable Switching Regulator 1 A SO-8 Power PAD, LM22675, LM22675MRE-ADJ/NOPB, Texas Instruments Texas Instruments 降压 ，反相 开关稳压器, 1A, 可调输出, 最低 1.285 V, 500 kHz, 8针 PSOP封装 Switching Voltage Regulators 1A STEP-DOWN VLTG REG

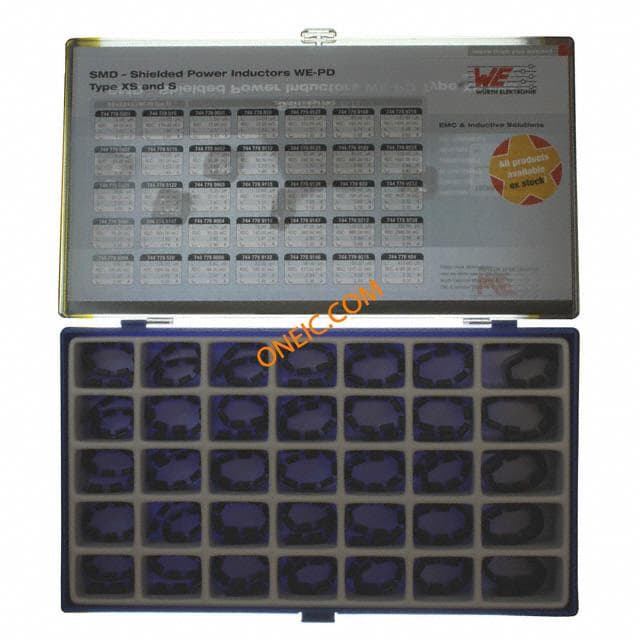

744778
