744042100
| 制造商 | Würth Elektronik GmbH & Co. KG |
| 描述 | Fixed Inductors 1300mA, 10uH DCR Max=0.15, +/-30% INDUCTOR POWER 10UH 1.3A SMD Inductor SMD WE-TPC 4818 10uH 1.3A Fixed Inductors WE-TPC Inductor 10uH 100kHz 1.3A CHOKE, SMD 10UH, 1.3A Wurth WE-TPC 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 10 μH ±30%, 1.3A Idc |
| 分类 |
商业参数
| 产品 | SMD Power Inductors | 其他名称 | 732-1025-2 |
| 产品类别 | Fixed Inductors | 标准包装数量 | 800 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85045095 | ||
电气参数
| 核心类型 | :Shielded | 容差 | 30 % |
| 电感量 | 10 uH | 量程（°/s） | :WURTH ELEKTRONIK - WE-TPC Series |
| 测试频率 | 100 kHz | 电感量范围 | :± 30% |
| 直流电阻（DCR） | 150 mOhm Max | 最大额定电流 | 1.3 A |
| 直流电阻（DCR）（最大） | :0.15ohm | 自谐振频率 | 45 MHz |
| 饱和电流（Isat） | :1A | 串联饱和电流 | 1A |
| 初始电阻（最小） | 0.15 Ohms | 通态电流（It (RMS)）（最大） | :1.3A |
机械参数
| 深度 | 4.8mm | 宽度 | 4.8 mm |
| 高度 | 1.8mm | 长度 | 4.8mm |
| 重量 | 0.005820 oz | 包装方式 | Reel |
| 屏蔽 | Shielded | 磁芯材料 | Ferrite |
| 安装类型 | Surface Mount | 引脚数 | :2 |
| 封装形式 | 1.8 mm | 磁芯材质 | Ferrite |
| 尺寸/外形 | 4.8 mm W x 4.8 mm L x 1.8 mm H | 端接样式 | SMD/SMT |
| 总体尺寸 | :4.8mm x 4.8mm x 1.8mm | 安装高度（最大） | 0.078" (2.00mm) |
产品信息
| 类型 | SMD Shielded Tiny Power Inductor | 系列 | WE-TPC |
环境参数
| 工作温度 | - 40 C to + 125 C | ||
文档与媒体
相关型号
744028
Wurth Electronics
Inductor Kits & Accessories WE-TPC Design Kit Small Size KIT INDUCTOR TPC SMALL SIZES Wurth Elektronik Small Power Chokes Inductor Design Kit, 7 Pieces INDUCTORS, ASSORTMENT, SMDSMALL Wurth Elektronik 7件 电感器套件, 套件包含小功率扼流圈
ELL5PS100M
Panasonic Corporation
Ind Choke Coil Shielded 10uH 20% 100KHz 1.1A Embossed Carrier T/R Shielded Power Choke SMD 10uH 1000mA Power Choke Shielded Wirewound 10uH 20% 100KHz 1.1A 120mOhm DCR Embossed Carrier T/R CHOKE, POWER, 5X5X2MM, 10UH Inductor;PowerInductor;ShieldedPowerChokeSMT10uH1000mA Inductor, SMD 10 uH 1.1 A ±20%, ELL5PS100M, Panasonic Automotive & Industrial Systems
XRPWRKIT-LWP-1
Exar

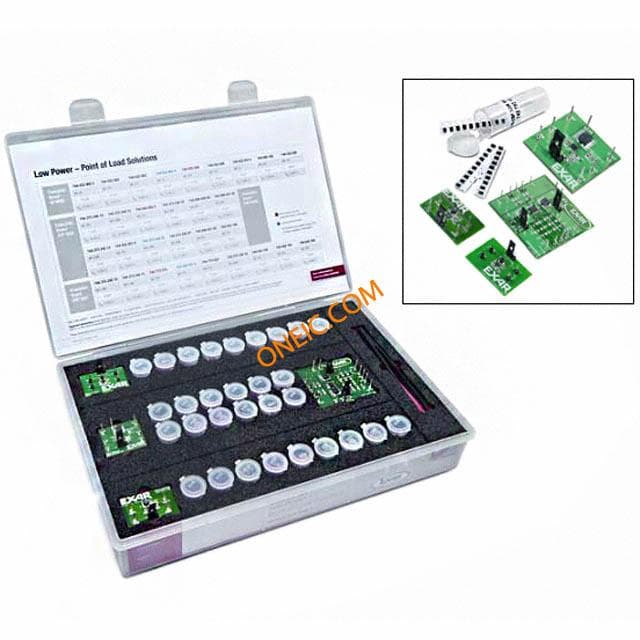

電源管理IC開発ツール Exar/Wurth Kit f/POL Low Power Designs LOW POWER DESIGN KIT Power Management IC Development Tools Exar/Wurth Kit f/POL Low Power Designs
