744042004
| 制造商 | Würth Elektronik GmbH & Co. KG |
| 描述 | Fixed Inductors 1720mA, 4.7uH DCR Max=0.082,+/-30% INDUCTOR POWER 4.7UH 1.72A SMD Inductor SMD WE-TPC 4818 4.7uH 1.65A Fixed Inductors WE-TPC Inductor 4.7uH 100kHz 1.72A CHOKE, SMD 4.7UH, 1.72A Wurth WE-TPC 系列 铁氧体芯材 绕线贴片电感器, 4.7 μH ±30%, 1.72A Idc |
| 分类 |
商业参数
| 产品 | SMD Power Inductors | 其他名称 | 732-1021-2 |
| 产品类别 | Fixed Inductors | 标准包装数量 | 800 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85045095 | ||
电气参数
| 核心类型 | :Shielded | 容差 | 30 % |
| 电感量 | 4.7 uH | 量程（°/s） | :WURTH ELEKTRONIK - WE-TPC Series |
| 测试频率 | 100 kHz | 电感量范围 | :± 30% |
| 直流电阻（DCR） | 82 mOhm Max | 最大额定电流 | 1.72 A |
| 直流电阻（DCR）（最大） | :0.082ohm | 自谐振频率 | 70 MHz |
| 饱和电流（Isat） | :1.65A | 串联饱和电流 | 1.65A |
| 初始电阻（最小） | 0.082 Ohms | 通态电流（It (RMS)）（最大） | :1.72A |
机械参数
| 宽度 | 4.8 mm | 重量 | 0.005820 oz |
| 包装方式 | Reel | 屏蔽 | Shielded |
| 安装类型 | Surface Mount | 引脚数 | :2 |
| 封装形式 | 1.8 mm | 磁芯材质 | Ferrite |
| 尺寸/外形 | 4.8 mm W x 4.8 mm L x 1.8 mm H | 端接样式 | SMD/SMT |
| 总体尺寸 | :4.8mm x 4.8mm x 1.8mm | 安装高度（最大） | 0.078" (2.00mm) |
产品信息
| 类型 | SMD Shielded Tiny Power Inductor | 系列 | WE-TPC |
环境参数
| 工作温度 | - 40 C to + 125 C | ||
文档与媒体
相关型号
MCP1602-330I/MS
Microchip Technology Inc.
. MCP1602-330I/MS - Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 500mA 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) from Microchip Technology. from now!
744028
Wurth Electronics
Inductor Kits & Accessories WE-TPC Design Kit Small Size KIT INDUCTOR TPC SMALL SIZES Wurth Elektronik Small Power Chokes Inductor Design Kit, 7 Pieces INDUCTORS, ASSORTMENT, SMDSMALL Wurth Elektronik 7件 电感器套件, 套件包含小功率扼流圈
MCP1602-180I/MS
microchip
Conv DC-DC Single Step Down 2.7V to 5.5V 8-Pin MSOP Tube IC REG BUCK SYNC 1.8V 0.5A 8MSOP Voltage Regulators - Switching Regulators 20MHz 05A Synch-Buck PFM/PWM Reg SYNC BUCK REG, 500MA, 4.5V, 8 MSOP IC,MCP1602-180I/MS Switching Voltage Regulators 20MHz 05A Synch-Buck PFM/PWM Reg
MCP1602-ADJI/MS
microchip
Conv DC-DC Single Step Down 2.7V to 5.5V 8-Pin MSOP Tube 2.0MHz, 0.5A, Synch-Buck PFM/PWM Reg IC REG BUCK SYNC ADJ 0.5A 8MSOP Voltage Regulators - Switching Regulators 20MHz 05A Synch-Buck PFM/PWM Reg SYNC BUCK REG, 500MA, 4.5V, 8 MSOP MCP1602 Series 5.5 V 500 mA 2 MHz SMT Synchronous Buck Regulator - MSOP-8 Switching Voltage Regulators 20MHz 05A Synch-Buck PFM/PWM Reg

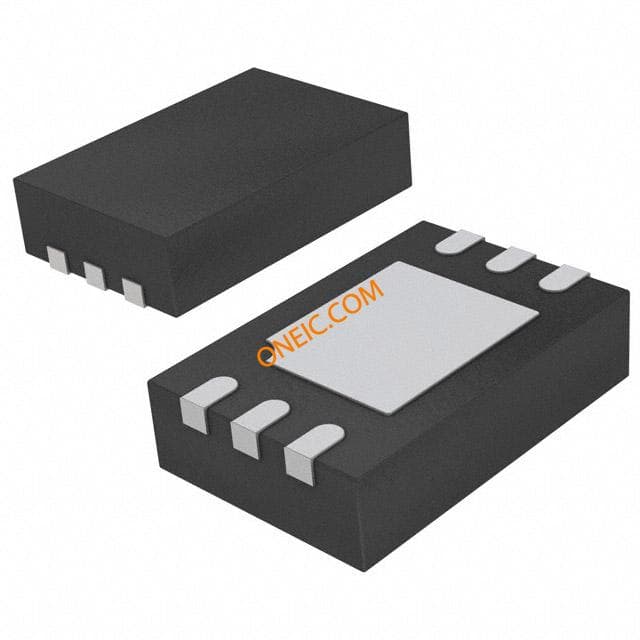

LT3503EDCB#TRMPBF
