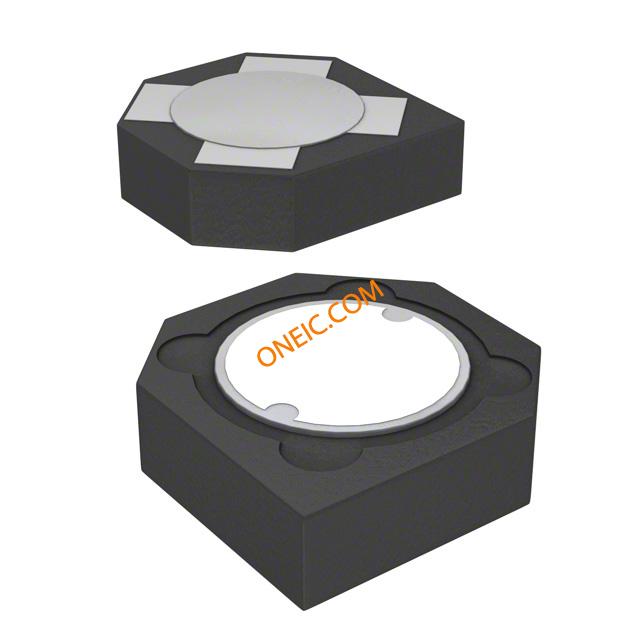

744030004
| 制造商 | Würth Elektronik GmbH & Co. KG |
| 描述 | INDUCTOR POWER 4.7UH .48A SMD Inductor SMD WE-TPC 3510 4.7uH 0.5A CHOKE, SMD 4.7UH, 0.5A |
| 分类 |
商业参数
| 其他名称 | 732-4075-2 | 标准包装数量 | 1,500 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85045095 | ||
电气参数
| 核心类型 | :Shielded | 容差 | ±30% |
| 电感量 | 4.7µH | 量程（°/s） | :WURTH ELEKTRONIK - WE-TPC Series |
| 测试频率 | 100kHz | 电感量范围 | :± 30% |
| 直流电阻（DCR） | 290 mOhm Max | 最大额定电流 | 480mA |
| 直流电阻（DCR）（最大） | :0.29ohm | 自谐振频率 | 100MHz |
| 饱和电流（Isat） | :500mA | 串联饱和电流 | 500mA |
| 初始电阻（最小） | 290mΩ | 通态电流（It (RMS)）（最大） | :480mA |
机械参数
| 深度 | 3.5mm | 高度 | 0.95mm |
| 长度 | 3.3mm | 重量 | 0.004 |
| 包装方式 | Tape & Reel (TR) | 屏蔽 | Shielded |
| 磁芯材料 | Ferrite | 安装类型 | Surface Mount |
| 引脚数 | :2 | 封装形式 | Non Standard |
| 磁芯材质 | Ferrite | 尺寸/外形 | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| 总体尺寸 | :3.3mm x 3.3mm x 0.95mm | 安装高度（最大） | 0.041" (1.05mm) |
产品信息
| 类型 | Wirewound | 系列 | :WE-TPC |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
