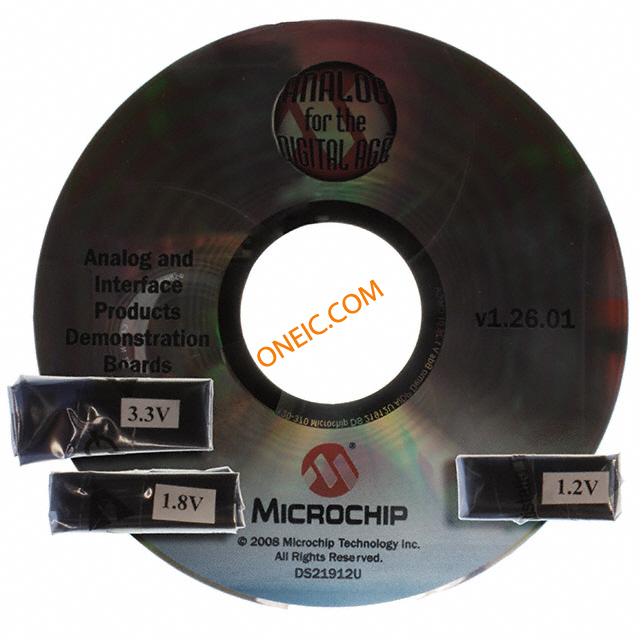

点击放大查看

MCP1603RD-TNY

制造商	Microchip Technology Inc.
描述	Tiny Reference Design Board Power Management IC Development Tools MCP1603 TinyBuck Reg Ref Design Board MCP1603 Tiny Buck Regulator Referenc REFERENCE DESIGN FOR MCP1603 MCP1603, BUCK REGULATOR, TINY, REF DESIGN BOARD
分类	集成电路逻辑IC标准逻辑IC

对参数有疑问？问 AI 助手

商业参数

最小起订量	4	产品	Power Management Modules
单位包装	1	产品类别	Power Management IC Development Tools
标准包装数量	Boxed	工厂包装数量	1

合规参数

RoHS

RoHS Compliant

海关税号

85437090

电气参数

额定电压	2.7 V to 5.5 V	输出电流	500mA
元件数量	:MCP1603	稳压器拓扑	Buck
开关频率	2MHz	最小输入电压	0.8V, 1.2V, 1.8V, 2.5V, or 3.3V

机械参数

重量

电路板厚度

Fully Populated

产品信息

类型	Development Kit	内容	Board
套件类型	:Power Management - Voltage Regulator	套件内容	:Board
主要用途	DC/DC, Step Down	输出及类型	1, Non-Isolated
工具类型/特性	MCP1603	使用的IC/零件	MCP1603
芯片组制造商	:Microchip	应用细节	:Buck Regulator

文档与媒体

在线文档

idcplg?IdcService=SS_GET_PAGE&nodeId=1406&dDocName=en538441

在线文档

MCP1603

在线文档

Development Tools Catalog

在线文档

MCP1603 Reference Design

PDF 文档

51750a.pdf

PDF 文档

22042a.pdf
