点击放大查看

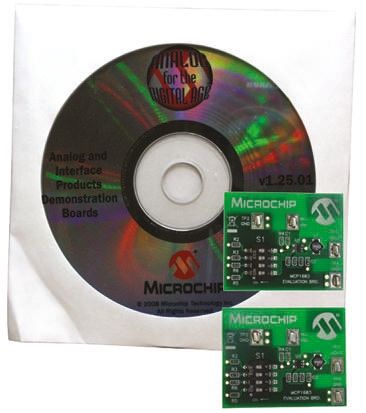

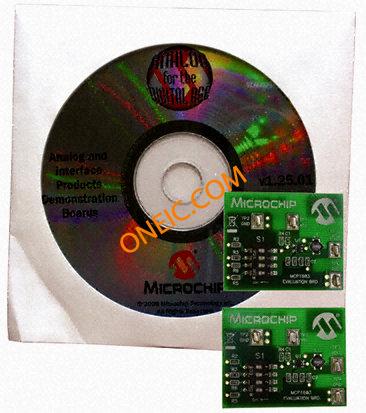

MCP1603EV

制造商	Microchip Technology Inc.
描述	MCP1603 Buck Converter Evaluation Board Power Management IC Development Tools MCP1603 Buck Converter Eval Brd MCP1603 Buck Converter Eval Board BOARD EVAL BUCK CONV MCP1603 Development Kit, Power Management With Evaluation Board for MCP1603 MCP1603, BUCK CONVERTER, EVAL BOARD EVALBOARD,MCP1603EV Microchip MCP1603 降压转换器评估测试板
分类	嵌入式系统与开发工具嵌入式开发工具评估与开发套件

对参数有疑问？问 AI 助手

商业参数

最小起订量	5	产品	Power Management Modules
单位包装	1	产品类别	Power Management IC Development Tools
标准包装数量	Boxed	工厂包装数量	1

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85423190

电气参数

核心类型	:Power Management - Voltage Regulator	额定电压	2.7 V to 5.5 V
输出电流	500mA	元件数量	:MCP1603
稳压器拓扑	Buck	开关频率	2MHz
最小输入电压	0.8V, 1.2V, 1.8V, 2.5V, or 3.3V

机械参数

重量

0.02

电路板厚度

Fully Populated

产品信息

类型	Development Kit	内容	Board
产品特性	:Wide Input Voltage Range, Five Different Output Voltage Setting, Compact Size	套件类型	:Power Management - Voltage Regulator
基本单元	:1603	技术	Power Management
套件内容	Evaluation Board for MCP1603	主要用途	DC/DC, Step Down
卡标准	Development Kit	输出及类型	1, Non-Isolated
工具类型/特性	MCP1603	使用的IC/零件	MCP1603
芯片组制造商	:Microchip	应用细节	:Buck Converter
支持MCU系列	:MCP1603	适用产品/相关产品	:MCP1603

文档与媒体

在线文档

idcplg?IdcService=SS_GET_PAGE&nodeId=1406&dDocName=en530521

PDF 文档

MCP1603 Eval board

在线文档

MCP1603

在线文档

Development Tools Catalog

PDF 文档

51652a.pdf
