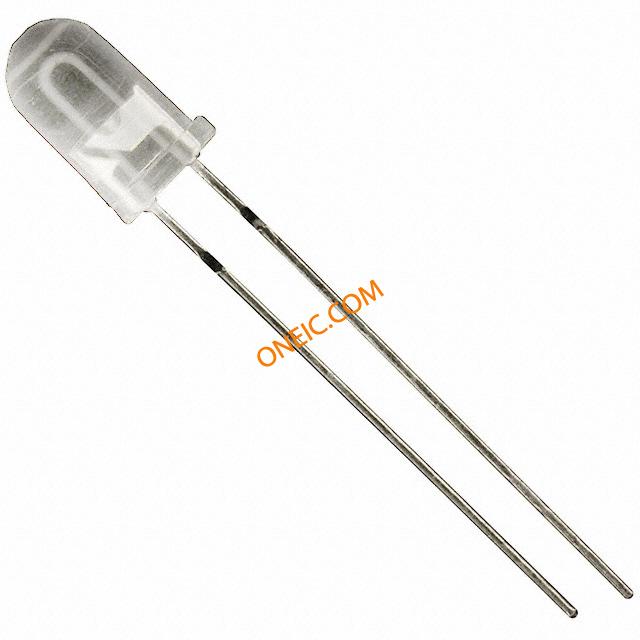

C503B-AAN-CY0B0251
| 制造商 | Wolfspeed, Inc. |
| 描述 | Standard LEDs - Through Hole Amber Round LED LED Uni-Color Amber 2-Pin T-1 3/4 Bulk LED 5MM AMBER CLEAR 591NM 15DEG LED, AMBER, T-1 3/4 (5MM), 13CD, 596NM LED, HI BRIGHT, 5MM Cree 琥珀色 (596 nm 主波长) LED, C503B-AAN-CY0B0252, 2.6 V, 23.5 cd, 15 °视角 5mm (T-1 3/4) 通孔 |
| 分类 |
商业参数
| 标准包装数量 | 500 | 标准封装名称 | T-1 3/4 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366190 | ||
电气参数
| 灯类型 | :T-1 3/4 (5mm) | 光学尺寸 | 5 mm |
| 灯输出 | Yes | 光通量 | 13000mcd |
| 视角 | 15 deg | 输出电流 | 20mA |
| 供电电压 | 2.1V | 峰值波长 | :596nm |
| LED正向电流 | 20 mA | LED正向电压 | 2.1 V |
| 毫坎德拉等级 | 14680mcd | 主波长 | 591 nm |
| 最大功耗 | 130 | 直流正向电流（If）（最大） | :20mA |
| 峰值脉冲电流（10/1000µs） | 50 | 栅极触发电压 Vgt (最大) | 5 |
机械参数
| 颜色 | Amber | 高度 | 8.80mm |
| 重量 | 0.000001 | LED颜色 | :Amber |
| 包装方式 | Bulk | 引脚样式 | Through Hole |
| 透镜颜色 | Clear | 透镜样式 | Dome |
| 透镜尺寸（因值为长宽高，非直径） | 5 mm | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 封装形式 | Radial |
| 透镜样式/尺寸 | Round with Domed Top, 5mm, T-1 3/4 | 包装数量 | T-1 3/4 |
| 照明颜色 | Amber | 位数 | 2 |
产品信息
| 类型 | Uni-Color | 透镜类型 | Clear |
| LED数量 | 1 | ||
环境参数
| 工作温度 | + 100 C | 光通量 @ 电流/温度 | 13000 mcd |
文档与媒体
相关型号
CMC285BLK
VCC
LED Mounting Hardware 5mm Mount Black LED MOUNTING CLIP 5MMLENSOPENEND
CLP127BLK
VCC
LED Mounting Hardware T1 3/4 OUT REFL CLIP LED MOUNTING CLIP 5MMCLIPMOUNT LED holder black 5 mm, CLP127BLK, Visual Communications Company

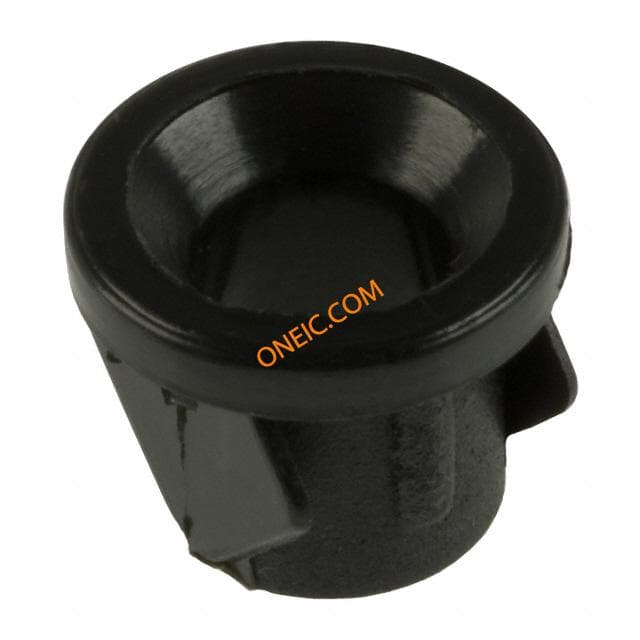

SSH-LXH501
