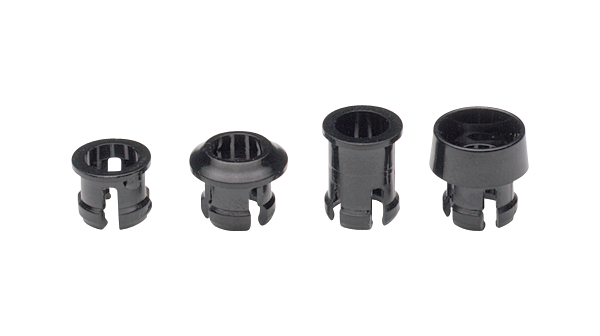

CLP127BLK
| 制造商 | Visual Communications Company, LLC (VCC) |
| 描述 | LED Mounting Hardware T1 3/4 OUT REFL CLIP LED MOUNTING CLIP 5MMCLIPMOUNT LED holder black 5 mm, CLP127BLK, Visual Communications Company |
| 分类 |
商业参数
| 产品 | LED Mounting Clips | 产品类别 | LED Mounting Hardware |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366190 |
电气参数
| 光学尺寸 | T-1 3/4 | ||
机械参数
| 颜色 | Black | 形状 | Tubular |
| 重量 | 0.002 | 材料（通用） | Polycarbonate (PC) |
| 包装方式 | Bulk | 安装样式 | Snap-In |
| 面板厚度 | 3.18 mm | 总长度 | 7.37 mm |
| 面板安装类型 | :Clip | 内径（直径） | 5.13 mm |
| 外径 | 9.4 mm | 安装孔直径 | 6.35 mm |
产品信息
| 附件类型 | :CONXRITE LED Mounting Clip | LED数量 | :1 |
| 适用产品/相关产品 | :5mm LEDs | ||
环境参数
| 防护等级 | Non Water Resistant | ||
