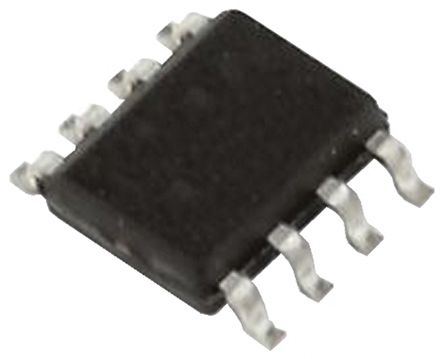

TXS0102DCTT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Voltage Level Translator 8-Pin SSOP T/R IC VOLT-LVL TRANSL 2BIT BI SM8 Translation - Voltage Levels 2B Bidirec Vltg- Level Translator TRANSLATOR, VOLTAGE LEVEL, 2BIT, SM8 2-Bit Bidirectional Voltage-Level Translator for Open-Drain and Push-Pull Application Logic IC 2-Bit / Bidirectional / Push-Pull / Open-Drain SSOP-8, TXS0102, TXS0102DCTT, Texas Instruments 电压电平移位器, 漏极开路输出, 1.65 → 3.6 V，2.3 → 5.5 V, 8针 SSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-32603-1 | 产品类别 | Translation - Voltage Levels |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电压 | 3.3 | 数据速率 | 24Mbps |
| 输入类型 | Voltage | 逻辑类型 | :Voltage Level Translator |
| 输出类型 | 3-State|Open Drain | 位数 | 2 |
| 额定电压 | 1.65/2.3 | 输出电流 | :1mA |
| 输入数量 | :2 | 供电电压 | 1.8/2.5|1.8/3.3|1.8/5|2.5|2.5/3.3|2.5/5|3.3|3.3/5 V |
| 传播延迟 | :165ns | 通道数量 | 2 |
| 最大额定电流 | Catalog | 施密特触发器输入 | No |
| 最小供电电压 | 1.65/2.3 V | 传播延迟（最大） | 4.6ns |
| 静态电流 (Iq) | 14.4 uA | 传播延迟时间 | 260 ns |
| 静态电流（最大） | 0.012 | 输出高/低电流 | -0.02 mA |
| 输出数量与类型 | 1 | 差分 - 输入:输出 | No/No |
| 传播延迟 tpLH / tpHL（最大） | 4.2 | ||
机械参数
| 宽度 | 2.9(Max) | 重量 | 0.000825 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8SSOP |
| 冷却的封装 | SSOP | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 3.15(Max) | 包装数量 | SSOP |
| 位数 | 8 | 外壳尺寸-插件 | 1.2(Max) |
| 供应商器件封装 | SM8 | ||
产品信息
| 系列 | TXS0102 | 功能 | Voltage Level Translator |
| 软件 | SCES640E | 图案编号 | Y |
| 功能框图 | fbd_sces640e.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
| 结工作温度 | 85C | ||
文档与媒体
