点击放大查看

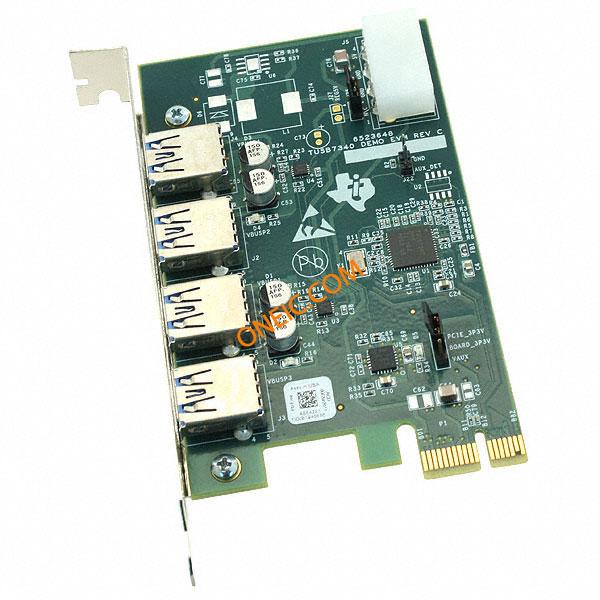

TUSB7340EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For USB 3.0 XHCI 0.96 Compliant Host Controller Interface Development Tools 4-port SuperSpd USB xHCI PCIe Card Ref BOARD REF DESIGN FOR TUSB7340 TUSB7340, HOST CONTROLLER, EVAL MODULE EVAL BOARD, TUSB7340 USB INTERFACE |
| 分类 |
商业参数
| 产品 | Evaluation Modules | 产品类别 | Interface Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 84733020 |
电气参数
| 接口 | USB | 供电电压 | 5 V |
| 元件数量 | :TUSB7340 | ||
机械参数
| 重量 | 0.25 | 尺寸/外形 | 4.38 in x 2.57 in |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 产品特性 | :- |
| 功能 | TUSB7340EVM board is a free-standing reference design for a four-port PCIe?based SuperSpeed USB (USB 3.0) Extensible Host Controller (xHCI) | 套件类型 | :Interface |
| 技术 | Interface Misc | 套件内容 | :Eval Module TUSB7340 |
| 主要用途 | Interface, USB | 工具类型/特性 | TUSB7340 |
| 主要特性 | PCI Express X1 Standard Height | 使用的IC/零件 | TUSB7340 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :USB 3.0 to HCI Compliant Host Controller |
环境参数
| 机械寿命 | New Technology: Cutting edge technology for the newest designs. | ||
