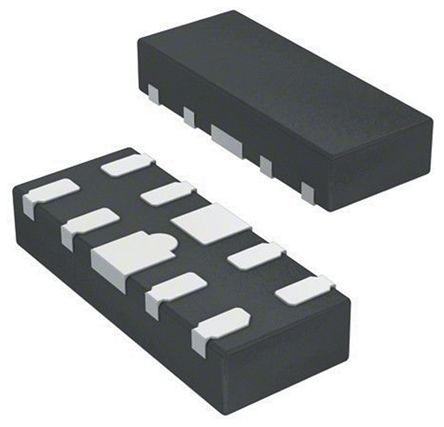

TS3USB221ERSER
| 制造商 | Texas Instruments Incorporated |
| 描述 | Analog Multiplexer Single 2:1 10-Pin UQFN T/R Power Switch ICs - USB Hi-Spd USB 2.0 1:2 Mux/DeMux Sw IC USB SWITCH DUAL 1X2 10-QFN USB SWITCH, 480MBPS, UQFN-10 IC, USB 1:2 MUX / DEMUX SWITCH, 480MBPS, 10-UQFN MUX & DEMUX SWITCH, 480MBPS, 1GHZ, UQFN-10, FULL REEL High-Speed USB 2.0 (480-Mbps) 1:2 Multiplexer/Demultiplexer Switch With Single Enable Texas Instruments 模拟开关, 双单刀双掷, 480MBps, 2.3 → 3.6 V电源电压, 10针 UQFN封装 USB Switch ICs Hi-Spd USB 2.0 1:2 Mux/DeMux Sw |
| 分类 |
商业参数
| 其他名称 | 296-25222-2 | 产品类别 | Power Switch ICs - USB |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 3000 |
| 标准封装名称 | QFN | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | ||
电气参数
| 电路 | 2 x 1:2 | 数据速率 | :480Mbps |
| 输入信号 | Yes | 开启时间 | 50@2.5V@-40C to 85C ns |
| 数据速率（最大） | 480 Mbps | 输出电流 | 30 uA |
| 供电电流 | 0.03@3.6V | 关断延迟时间 | 23@2.5V@-40C to 85C ns |
| 输入数量 | 4 | 供电电压 | 2.3 V |
| 输出数量 | 2 | 供电类型 | Single |
| 通道数量 | 1 | 最大额定电流 | Catalog |
| 供电电源 | Single Supply | 导通电阻（最大） | 6@3V Ohm |
| 最大传播延迟 @ V, 最大CL | 0.25(Typ)@2.5V@-40C to 85C|0.25(Typ)@3.3V@-40C to 85C ns | 多路复用/解复用电路 | 2:1 |
机械参数
| 宽度 | 1.55(Max) | 重量 | 0.000004 |
| 包装方式 | Reel | 引脚样式 | No Lead |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :10 | 封装形式 | 10UQFN |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 2.05(Max) |
| 包装数量 | UQFN | 位数 | 10 |
| 外壳尺寸-插件 | 0.55(Max) | 供应商器件封装 | 10-UQFN (2.0x1.5) |
产品信息
| USB | :Multiplexer / Demultiplexer Switch | 类型 | Analog Multiplexer |
| 系列 | TS3USB221E | 功能 | USB Switch |
| 软件 | SCDS263C | 配置 | Single 2:1 |
| 功能框图 | fbd_scds263c.gif | 开关数量 | Dual |
| 使用的IC/零件 | View | 印刷电路板数量 | 10 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | + 85 C |
文档与媒体
相关型号
