TPD2E007DCKR
| 制造商 | Texas Instruments Incorporated |
| 描述 | ESD Suppressor Diode Arrays ±15KV 3-Pin SC-70 T/R ESD Suppressors 2-Channel ESD TVS DIODE SC70-3 ESD Protection Array 3-Pin SC-70 T/R IC, INTERFACE, ESD, 3-SC-70, FULL REEL ESD PROTECTION ARRAY, 2CH, SC-70 IC, INTERFACE, ESD, 3-SC-70 2-Channel ESD Protection Array for AC Signal Data Interface Texas Instruments 单向 ESD 保护二极管, 0.21W, 3针 SC-70封装 ESD Suppressors / TVS Diodes 2-Channel ESD |
| 分类 |
商业参数
| 其他名称 | 296-25281-2 | 产品类别 | ESD Suppressors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 3000 |
| 标准封装名称 | SOT-323 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | ESD保护 | ±15@Air Gap/±8@Contact Disc/±15@HBM |
电气参数
| 通道数 | 2 Channels | 接口 | :RS232, RS422, RS485 |
| 电容 | 15 pF | 通道数量 | 2 |
| 元件数量 | 2 | 钳位电压 | 14 |
| 输入电容值 | 15 | 击穿电压 | 14V |
| 最大额定电流 | Catalog | 电源线保护 | No |
| 双向通道数 | 2 | 最大功耗 | 218 mW |
| 反向漏电流 @ Vr | 0.05 uA | 峰值脉冲电流（10/1000µs） | 4.5A (8/20µs) |
| 漏电流（IS(off)）（最大） | 50 | ||
机械参数
| 宽度 | 1.4(Max) | 重量 | 0 |
| 包装方式 | Reel | 公共引脚 | 8 |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 引脚数 | :3 | 封装形式 | SC-70-3 |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 2.15(Max) |
| 包装数量 | SC-70 | 端接样式 | SMD/SMT |
| 位数 | 3 | 外壳尺寸-插件 | 1(Max) |
| 供应商器件封装 | SC-70-3 | ||
产品信息
| 类型 | Diode Arrays | 系列 | TPD2E007 |
| 产品特性 | :- | 功能 | :ESD Protection Diode |
| 极性 | Bi-Directional | 软件 | SLVS796F |
| 应用领域 | :Cell Phones, PDAs, Audio Interface Connections, Consumer Electronics, Industrial Interface | 应用 | General Purpose |
| 配置 | Dual | 图案编号 | Y |
| 端口方向 | Uni-Directional | 功能框图 | fbd_slvs796f.gif |
| 使用的IC/零件 | View | 印刷电路板数量 | 3 |
环境参数
| 空气流量 - 中 | 15 | 测试温度 | -40 to 85 |
| 工作温度 | -40 °C | ||
文档与媒体
相关型号
TLV320AIC3101IRHBT
texas instruments
Audio Codec 2ADC / 2DAC 24-Bit 32-Pin VQFN EP T/R IC STER AUD CODEC 24 BIT 32-VQFN Interface - CODECs 6 In & Out Speaker & Headph Amp Low-Power Stereo Codec with 6 Inputs, 6 Outputs, Speaker/HP Amp and Enhanced Digital Effects 立体声通道 96ksps 24bit 通用 音视频编码器和解码器 IC, 串行2线、串行I2C接口, 32针 VQFN封装
TPD4E001DBVR
texas instruments
ESD Suppressor Diode Arrays ±15KV 6-Pin SOT-23 T/R ESD Suppressors Low-Cap 4Ch +/-15kV ESD Protection Array TVS DIODE 5.5VWM SOT23-6 ESD Suppressor Diode Arrays ?15KV 6-Pin SOT-23 T/R ESD PROTECTION ARRAY, 25V, SOT-23-6 Low-Capacitance 4-Channel +/-15-kV ESD Protection Array for High-Speed Data Interfaces Texas Instruments 单向 ESD 保护阵列, 100W, 100V, 6针 SOT-23封装 ESD Suppressors / TVS Diodes Low-Cap 4Ch +/-15kV ESD Protection Array
TPS2590RSAT
texas instruments
Load Switch 16-Pin VQFN EP T/R Hot Swap & Power Distribution 3V to 20V Hi Crnt Load Switch Power Switch 0A 16-Pin VQFN EP T/R IC PWR MGR HOTSWAP 3-20V 16QFN Hot Swap Voltage Controllers 3V to 20V Hi Crnt Load Switch HOT SWAP CONTROLLER, 20V, QFN-16 3-V to 20-V High Current Load Switch Texas Instruments , 单输出 负载开关集成电路, 0 → 5.5A, 3 → 20V, 16针 QFN封装
TPD2EUSB30DRTR
texas instruments
ESD Suppressor Diode Arrays ±8KV 3-Pin SOT T/R ESD Suppressors 2Ch ESD Solution TVS DIODE 5.5VWM 8VC SOT3 ESD Suppressor Diode Arrays �8KV 3-Pin SOT T/R ESD PROTECTION ARRAY, 2CH, SOT-3 IC, INTERFACE, SOT 2-Channel ESD Solution for SuperSpeed USB 3.0 Interface TVS diode SOT-23-3, TPD2EUSB30, TPD2EUSB30DRTR, Texas Instruments Texas Instruments 双向 TVS 二极管阵列, 45W, 8V, 3针 SOT封装 ESD Suppressors / TVS Diodes 2Ch ESD Solution

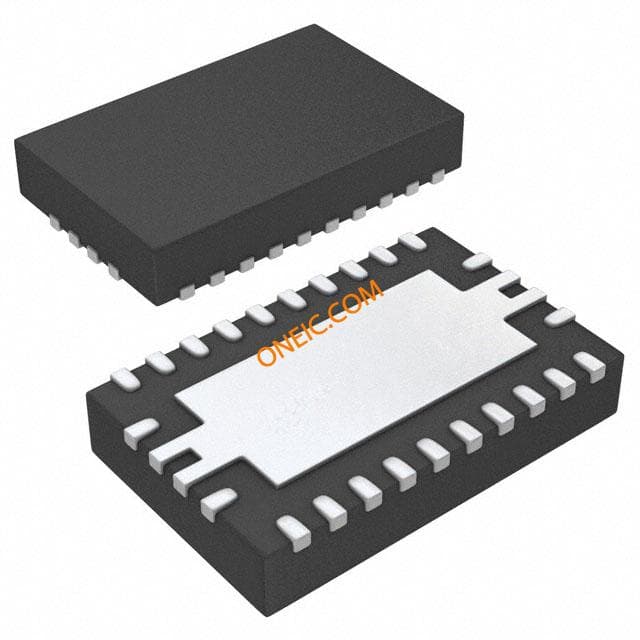

TPS40400RHLR
