TPS2590RSAT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Load Switch 16-Pin VQFN EP T/R Hot Swap & Power Distribution 3V to 20V Hi Crnt Load Switch Power Switch 0A 16-Pin VQFN EP T/R IC PWR MGR HOTSWAP 3-20V 16QFN Hot Swap Voltage Controllers 3V to 20V Hi Crnt Load Switch HOT SWAP CONTROLLER, 20V, QFN-16 3-V to 20-V High Current Load Switch Texas Instruments , 单输出 负载开关集成电路, 0 → 5.5A, 3 → 20V, 16针 QFN封装 |
| 分类 |
商业参数
| 产品 | Controllers & Switches | 其他名称 | 296-24879-2 |
| 产品类别 | Hot Swap & Power Distribution | 标准包装数量 | Tape & Reel, Cut Tape |
| 工厂包装数量 | 250 | 标准封装名称 | QFN |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 额定电压 | 3 to 20 V | 输出电流 | 3.9 mA |
| 供电电压 | 20 V | 输出数量 | 1 |
| 通道数量 | 1 | 击穿电压 | SOA Thermal |
| 输出电流（典型） | 0 | 导通电阻（最大） | 0.0295 |
| 短路电流 | Adj | 传播延迟 tpLH / tpHL（最大） | 500000 |
| 共模瞬态抗扰度（最小） | Automotive | 保护电压（VP）（2416） | 25 |
机械参数
| 宽度 | 4.1(Max) | 重量 | 0.001623 oz |
| 包装方式 | Reel | 引脚样式 | No Lead |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :16 | 封装形式 | 16VQFN EP |
| 冷却的封装 | VQFN EP | 材料表面处理 | :MSL 2 - 1 year |
| 总长度 | 4.1(Max) | 包装数量 | VQFN EP |
| 位数 | 16 | 外壳尺寸-插件 | 0.95(Max) |
| 供应商器件封装 | 16-QFN (4x4) | ||
产品信息
| 类型 | Hot Swap Controller | 设计类型 | Calculation Tool EVM |
| 系列 | TPS2590 | 产品特性 | Thermal Limit, UVLO |
| 软件 | SLUS960G | 应用 | General Purpose |
| 控制器类型 | :Disk Drives, Plug In Circuit Boards, RAID Arrays, Telecommunications | 功能框图 | fbd_slus960g.gif |
| 内部开关 | Yes | 使用的IC/零件 | View |
| 每电路通道数 | 1 | 其他规格 | Always |
| 印刷电路板数量 | 16 | 可编程特性 | Auto Retry, Circuit Breaker, Current Limit, Fault Timeout, Latched Fault |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
| 结工作温度 | 125C | ||
文档与媒体
相关型号
08051C104KAT2A
avx
Cap Ceramic 0.1uF 100V X7R 10% SMD 0805 125°C Embossed T/R Multilayer Ceramic Capacitors MLCC - SMD/SMT 100volts .1uF 10% KC 100nF 0805 10% 100V X7R CAP CER 0.1UF 100V 10% X7R 0805 Cap Ceramic 0.1uF 100V X7R 10% SMD 0805 125C Embossed T/R CAPACITOR CERAMIC 0.1UF, 100V, X7R, 10%, 0805 CAP, MLCC, X7R, 100NF, 100V, 0805 CAP, MLCC, X7R, 100NF, 100V, 0805, REEL Capacitor;Ceramic;Cap0.1uFTol10%;SMT;Vol-Rtg100V;X7R;TR Capacitor: ceramic; MLCC; 100nF; 100V; X7R; ±10%; SMD; 0805
TPD4E001DBVR
texas instruments
ESD Suppressor Diode Arrays ±15KV 6-Pin SOT-23 T/R ESD Suppressors Low-Cap 4Ch +/-15kV ESD Protection Array TVS DIODE 5.5VWM SOT23-6 ESD Suppressor Diode Arrays ?15KV 6-Pin SOT-23 T/R ESD PROTECTION ARRAY, 25V, SOT-23-6 Low-Capacitance 4-Channel +/-15-kV ESD Protection Array for High-Speed Data Interfaces Texas Instruments 单向 ESD 保护阵列, 100W, 100V, 6针 SOT-23封装 ESD Suppressors / TVS Diodes Low-Cap 4Ch +/-15kV ESD Protection Array
TPD2EUSB30DRTR
texas instruments

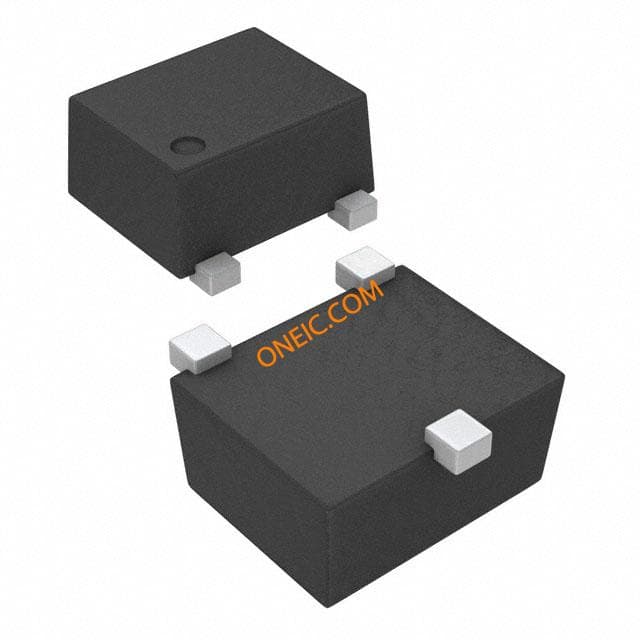

ESD Suppressor Diode Arrays ±8KV 3-Pin SOT T/R ESD Suppressors 2Ch ESD Solution TVS DIODE 5.5VWM 8VC SOT3 ESD Suppressor Diode Arrays �8KV 3-Pin SOT T/R ESD PROTECTION ARRAY, 2CH, SOT-3 IC, INTERFACE, SOT 2-Channel ESD Solution for SuperSpeed USB 3.0 Interface TVS diode SOT-23-3, TPD2EUSB30, TPD2EUSB30DRTR, Texas Instruments Texas Instruments 双向 TVS 二极管阵列, 45W, 8V, 3针 SOT封装 ESD Suppressors / TVS Diodes 2Ch ESD Solution
