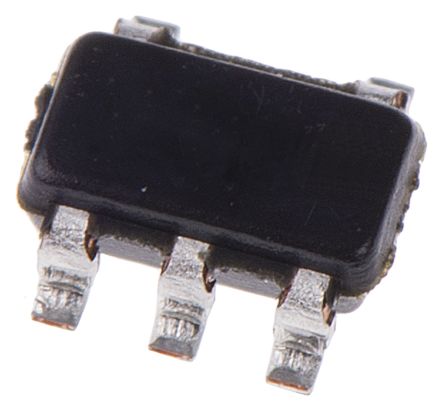

TPS76933DBVT
| 制造商 | Texas Instruments Incorporated |
| 描述 | LDO Regulator Pos 3.3V 0.1A 5-Pin SOT-23 T/R IC REG LDO 3.3V 0.1A SOT23-5 TPS76933DBVT, Low Dropout Voltage Regulator, 0.1A, 3.3V ±3%, 2.7 to 10Vin, 0.555W, 5-Pin SOT-23 LDO Voltage Regulators 3.3V 100mA LDO IC, LDO REGULATOR, 0.1A, 10V, SOT23-5 10-V, 100-mA, Low Iq, Low-Dropout Linear Regulator LDO voltage regulator 3.3 V SOT-23-5, TPS76933DBVT, Texas Instruments Texas Instruments , LDO 调节器, 100mA, 3.3 V输出 ±3%, 2.7 → 10 V输入, 0.555W, 5针 SOT-23封装 |
| 分类 |
商业参数
| 其他名称 | 296-2760-2 | 产品类别 | LDO Voltage Regulators |
| 标准包装数量 | Cut Tape, Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :76933 | 抗辐射加固 | No |
电气参数
| 电源抑制比 | 27 | 输出端 | 1 |
| 精度 | ±3 % | 输出类型 | Fixed |
| 额定功率 | 555 W | 稳压器类型 | Linear |
| 额定电压 | 2.7 V | 电源调整率 | 0.04(Typ) %/V |
| 负载调整率 | 12(Typ) mV | 输出电流 | 0.1 A |
| 供电电压 | 0.048@50mA|0.098@100mA V | 输出数量 | 1 |
| 稳压器拓扑 | Positive Fixed | 电容 @ Vr, F | Non-Ceramic |
| 最大额定电流 | Catalog | 稳压器数量 | 1 |
| 最小输入电压 | 3.3V | 输出电压精度 | �3 % |
| 最大功耗 | 555 mW | 静态电流 (Iq) | 0.017 |
| 直流输入电压（最小） | 2.7 V | 静态电流（最大） | 0.028 mA |
| 电压负载调整率 | 3 % | 输入偏置电流（最大） | 0.017 mA |
| 最大持续工作电压（MCOV） | :10V | ||
机械参数
| 宽度 | 1.75(Max) | 重量 | 0.000016 |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.05(Max) |
| 包装数量 | SOT-23 | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| 类型 | LDO | 系列 | TPS76933 |
| 产品特性 | Current Limit|Sleep Mode|Thermal ... | 极性 | Positive |
| 软件 | SLVS203E | 拓扑 | LDO |
| 图案编号 | Y | 输出及类型 | Adjustable Output Fixed Output |
| 使用的IC/零件 | View | 输出配置 | 1.2 1.5 1.8 2.5 2.7 2.8 3 3.3 5 |
| 印刷电路板数量 | 5 | ||
环境参数
| 工作温度 | -40 to 125 °C | ||
文档与媒体
相关型号
TPS76901DBVR
texas instruments
LDO Regulator Pos 1.2V to 5.5V 0.1A 5-Pin SOT-23 T/R IC REG LDO ADJ 0.1A SOT23-5 LDO Voltage Regulators Adj 100mA LDO LDO, REG, 10VIN, 0.1A, ADJ, 5SOT23 Voltage stabiliser; LDO, adjustable; 1.2÷5.5V; 0.1A; SMD; SOT23-5 10-V, 100-mA, Low Iq, Low-Dropout Linear Regulator Texas Instruments , LDO 调节器, 可调整的输出, 100mA, 1.2 → 5.5 V输出 ±3%, 0.555W, 5针 SOT-23封装
TPS76933DBVT
texas instruments
LDO Regulator Pos 3.3V 0.1A 5-Pin SOT-23 T/R IC REG LDO 3.3V 0.1A SOT23-5 TPS76933DBVT, Low Dropout Voltage Regulator, 0.1A, 3.3V ±3%, 2.7 to 10Vin, 0.555W, 5-Pin SOT-23 LDO Voltage Regulators 3.3V 100mA LDO IC, LDO REGULATOR, 0.1A, 10V, SOT23-5 10-V, 100-mA, Low Iq, Low-Dropout Linear Regulator LDO voltage regulator 3.3 V SOT-23-5, TPS76933DBVT, Texas Instruments Texas Instruments , LDO 调节器, 100mA, 3.3 V输出 ±3%, 2.7 → 10 V输入, 0.555W, 5针 SOT-23封装
MSP430F1612IPM
texas instruments
MCU 16-Bit MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP MCU 16-bit MSP430 MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP Tray IC MCU 16BIT 55KB FLASH 64LQFP MSP430F1612IPM, 16 bit Microcontroller MSP430 8MHz 55, 256kB, B Flash, 5kb RAM, I2C SPI 64-Pin LQFP MSP430 FLASH MCU, SMD, LQFP64, 430 Microcontroller; Flash:55kB; RAM:5kB; 8MHz; QFP64 16-bit Ultra-Low-Power MCU, 55kB Flash, 5120B RAM, 12-Bit ADC, Dual DAC, 2 USART, I2C, HW Mult, DMA Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B，55 kB ROM 闪存, 5 kB RAM, 64针 LQFP封装 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
TPS76933DBVR
texas instruments
LDO Regulator Pos 3.3V 0.1A 5-Pin SOT-23 T/R IC REG LDO 3.3V 0.1A SOT23-5 LDO Voltage Regulators Ultra Low-Power 100-mA LDO IC, LDO VOLT REG, 3.3V, 0.1A, 5-SOT-23 10-V, 100-mA, Low Iq, Low-Dropout Linear Regulator
744728
Wurth Electronics
Inductor Kits & Accessories TI Design Kit DESIGN KIT INDUCTORS FOR TI Wurth Elektronik Power Inductor Inductor Design Kit, 176 Pieces DESIGN-KIT SMD-POWER CHOKES FOR TI Wurth Elektronik 176件 电感器套件, 套件包含功率电感器

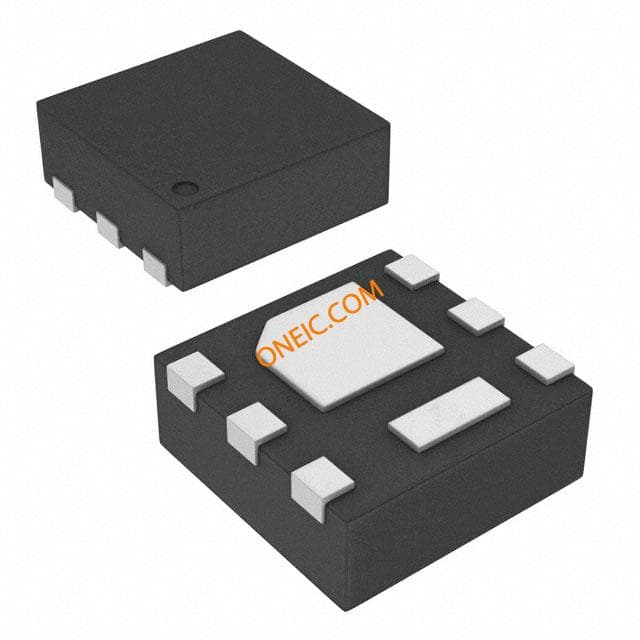

CSD16301Q2
