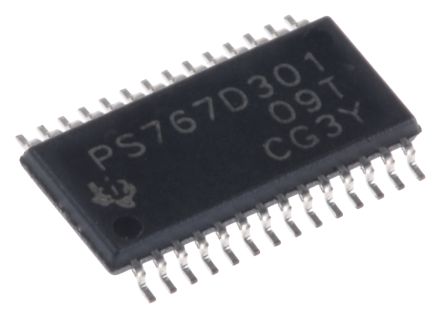

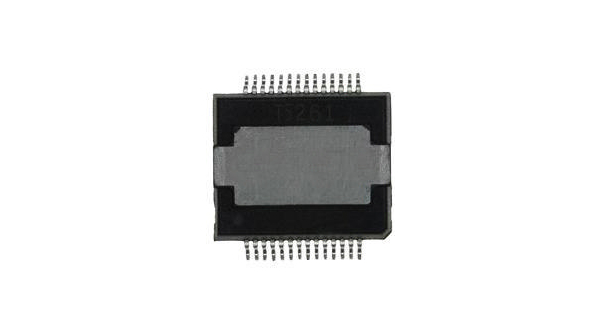

TPS767D301PWP
| 制造商 | Texas Instruments Incorporated |
| 描述 | LDO Regulator Pos 1.5V to 5.5V3.3V 1A 28-Pin HTSSOP EP Tube IC REG LDO 3.3V/ADJ 1A 28HTSSOP TPS767D301PWP, Dual Low Dropout Voltage Regulator, Adj./Fixed 1A, 1.5 to 5.5V ±2%, 5.07W, 28-Pin HTSSOP EP LDO Voltage Regulators Dual-Output LDO Voltage Regulator IC, LDO REGULATOR, 1A, 10V, HTSSOP-28 Dual-Output Low-Dropout (LDO) Voltage Regulators LDO voltage regulator 1.5...5.5 V HTSSOP-28, TPS767, TPS767D301PWP, Texas Instruments Texas Instruments 双 LDO 调节器, 可调/固定, 1A, 1.5 → 5.5 V输出 ±2%, 5.07W, 28针 HTSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-2740-5 | 产品类别 | LDO Voltage Regulators |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电源抑制比 | 30 | 噪声 | 55 |
| 输出端 | 2 | 精度 | ±2 % |
| 输出类型 | Adjustable|Fixed | 额定功率 | 5070 W |
| 稳压器类型 | Linear | 额定电压 | 2.7 V |
| 电源调整率 | 0.01(Typ) %/V | 负载调整率 | 3(Typ) mV |
| 输出电流 | 1 A | 供电电压 | 0.35@1A V |
| 输出数量 | 2 | 输出电流1 | :1A |
| 输出电流2 | :1A | 稳压器拓扑 | Positive Fixed and Adjustable |
| 电容 @ Vr, F | Ceramic | 最大额定电流 | Catalog |
| 稳压器数量 | 2 | 最小输入电压 | 3.3V, 1.5 V ~ 5.5 V |
| 输出电压精度 | �2 % | 最大功耗 | 5070 mW |
| 静态电流 (Iq) | 0.08 | 直流输入电压（最小） | 2.7 V |
| 电压负载调整率 | 2 % | 输入偏置电流（最大） | 0.085 mA |
| 输出电压2（可调范围） | :5.5V | 共模瞬态抗扰度（最小） | Extended |
| 最大持续工作电压（MCOV） | :10V | ||
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.004180 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :28 |
| 封装形式 | 28HTSSOP EP | 冷却的封装 | HTSSOP EP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 9.8(Max) |
| 包装数量 | HTSSOP EP | 位数 | 28 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 28-HTSSOP |
产品信息
| 类型 | Linear | 系列 | TPS767D301 |
| 产品特性 | Current Limit|Thermal Shutdown Pr... | 极性 | Positive |
| 软件 | SLVS209H | 拓扑 | LDO |
| 输出及类型 | Adjustable Output Fixed Output | 使用的IC/零件 | View |
| 输出配置 | 3.3 | 印刷电路板数量 | 28 |
环境参数
| 工作温度 | -40 to 125 °C | ||
