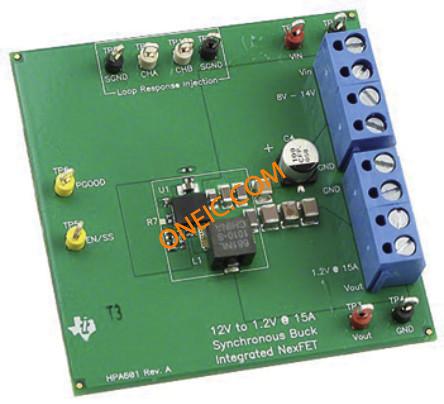

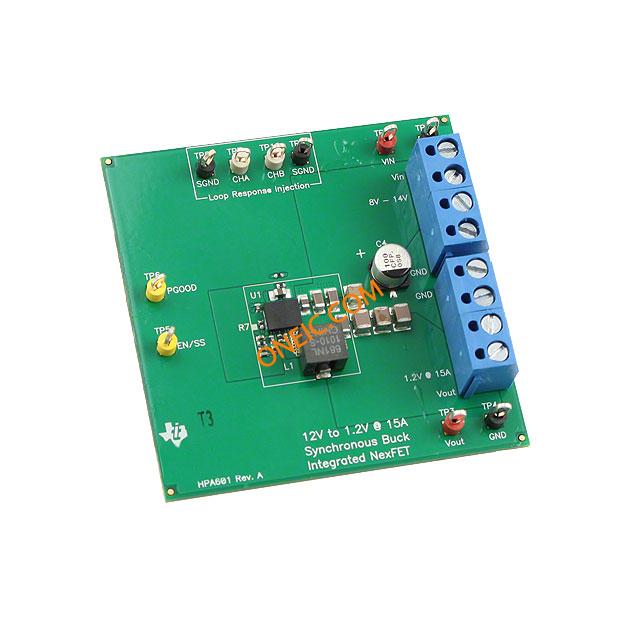

TPS56121EVM-601
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For Synchronous Step-Down Converter Power Management IC Development Tools TPS56121 Eval Mod EVAL MODULE FOR TPS56121-601 Converter, Sync, Buck, EVM, High Current TPS56121EVM-601 EVALUATION MODULE TPS56121, DC/DC CONVERTER, STEP DOWN, EVAL MODULE |
| 分类 |
商业参数
| 产品 | Power Management Development Tools | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 84733020 |
电气参数
| 输出电流 | 15A | 稳压器拓扑 | Buck |
| 开关频率 | 500kHz | 最小输入电压 | 1V |
机械参数
| 重量 | 1 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 已删除 | Not Compliant |
| 内容 | Board | 产品特性 | :Supports Pre-Biased Output, Programmable Soft-Start |
| 套件类型 | :Power Management | 技术 | Power Management |
| 套件内容 | Evaluation Module for TPS56121 | 主要用途 | DC/DC, Step Down |
| 卡标准 | Module | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | TPS5612 | 射频系列/标准 | TPS56121 |
| 使用的IC/零件 | TPS56121 | 芯片组制造商 | :Texas Instruments |
| 应用细节 | :DC/DC Buck Converter | ||
文档与媒体
相关型号
TPS56121DQPT
texas instruments
Conv DC-DC Single Step Down 4.5V to 14V 22-Pin QFN EP T/R Conv DC-DC Single Step Down 4.5V to 14V 22-Pin SON EP T/R IC REG BUCK SYNC ADJ 15A 22SON Converter, Sync, Buck, High Current,15A Voltage Regulators - Switching Regulators 4.5-14Vinp,15A High Crnt Synch Step-Down BUCK, SYNC, 15A, 22SON 4.5V to 14V Input, 15A Synchronous Step-Down SWIFT™ Converter Texas Instruments 降压 开关稳压器, 15A, 可调输出, 0.6 → 12 V, 1000 kHz, 22针 PQFN封装 Switching Voltage Regulators 4.5-14Vinp,15A High Crnt Synch Step-Down
.jpg&w=3840&q=75)

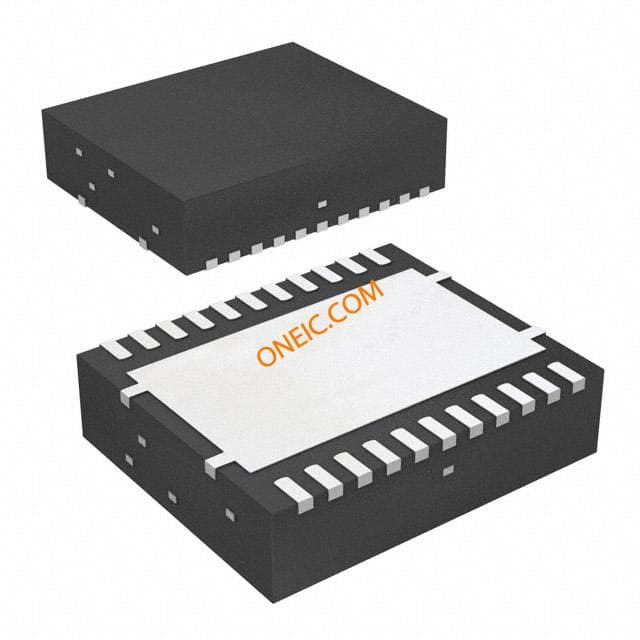

TPS56121DQPR
