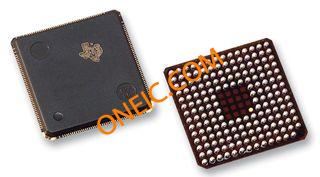

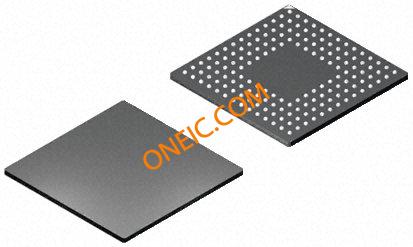

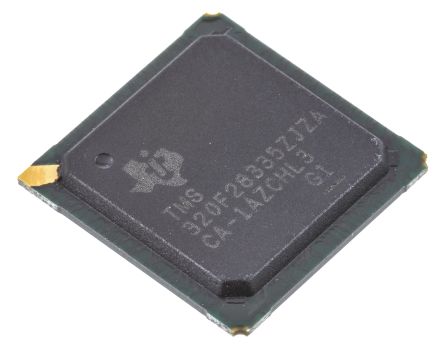

TMS320F28335ZJZA
| 制造商 | Texas Instruments Incorporated |
| 描述 | MCU 32-bit C2000 C28x RISC 512KB Flash 1.9V/3.3V 176-Pin BGA Digital Signal Processors & Controllers - DSP, DSC Digital Signal Controller IC MCU 32BIT 512KB FLASH 176BGA TMS320F28335ZJZA, 32 bit Microcontroller C28x 150MHz 512kb Flash, 68kb RAM, I2C SPI 176-Pin PBGA MCU, 32BIT, 512K FLASH, 176BGA Delfino Microcontroller Texas Instruments TMS320 系列 32 bit C28x MCU, 150MHz, 512 kB ROM 闪存, 68 kB RAM, 176针 PBGA封装 |
| 分类 |
商业参数
| 产品 | DSCs | 商标名 | Delfino |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Trays |
| 工厂包装数量 | 126 | 标准封装名称 | BGA |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| 认证机构 | No | ||
电气参数
| GPIO | 88 | 转速 | 150 MHz |
| 定时器 | 3 x 32 bit | 存储器 | 1 6-Ch DMA |
| RAM 大小 | 68 KB | 内核大小 | 32-Bit |
| 核心类型 | C28x | 频率 | 150 MHz |
| 接口 | CAN/I2C/SCI/SPI/UART | 时钟速率 | 150 MHz |
| 存储器容量 | 68 KB | I/O 数量 | 88 |
| 位数 | 12 | 核心电压 | :1.9V |
| 额定电压 | 3.135 → 3.465 V | 看门狗定时器 | 1 |
| 数据转换器 | A/D 16x12b | 最大频率 | 150MHz |
| DAC数量 | 1 | 振荡器类型 | Internal |
| 采样保持与ADC比率（如1:2） | Dual | 串行协议 | 3 |
| 供电电压 | 1.9|3.3 V | RS-232（422、485） | 2 |
| 分辨率（位） | 12bit | 通道数量 | 2 |
| 程序存储器大小 | 512 KB | 程序存储器类型 | Flash |
| 工作频率 | :150MHz | ADC/DAC 数量 | 16 |
| 最小供电电压 | 1.805/3.135 V | 频率（中心/带宽） | 32bit |
| 供电电压 (Vcc/Vdd) | 1.805 V ~ 1.995 V | 峰值脉冲电流（8/20µs） | 150 |
机械参数
| 宽度 | 15.2mm | 高度 | 1.45mm |
| 长度 | 15.2mm | 重量 | 0.3 |
| 包装方式 | Tray | 引脚样式 | Ball |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :176 | 封装形式 | 176BGA |
| 冷却的封装 | PBGA | 材料表面处理 | :- |
| 总长度 | 15.2(Max) | 包装数量 | BGA |
| 尺寸/外形 | 15.2 x 15.2 x 1.45mm | 位数 | 176 |
| 外壳尺寸-插件 | 1.45(Max) | 核心数/总线宽度 | 32 Bit |
| 脉冲宽度失真（最大） | 1(18 Channel) | ||
产品信息
| SPI | 1 | USB | 0 |
| 系列 | TMS320F28335 | 已删除 | Compliant |
| 产品特性 | CAN Controller | 功能 | C28x |
| 协议 | 1 | 软件 | SPRS439M |
| 闪存大小 | :512KB | 片内RAM（通道数×位宽） | 16-chx12-bit |
| 外设 | DMA, POR, PWM, WDT | 架构 | RISC |
| 连接性 | CAN, EBI/EMI, I²C, McBSP, SCI, SPI, UART/USART | 可编程性 | Yes |
| 核心处理器 | C28x | 指令类型 | Floating Point |
| 定时器数量 | 3 | 模块数 | 1 |
| 功能框图 | fbd_sprs439m.gif | 射频系列/标准 | C2000 |
| 使用的IC/零件 | View | DigiKey可编程 | Yes |
| 印刷电路板数量 | 176 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
