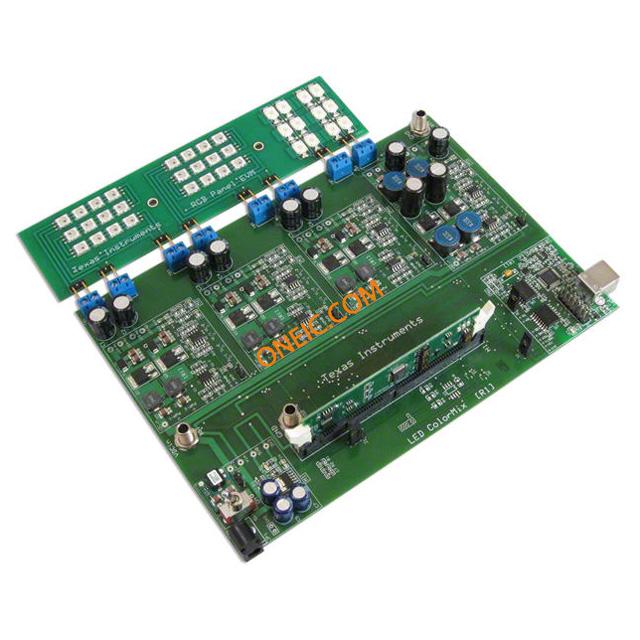

点击放大查看
TMDSRGBLEDKIT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Development Kit For LED Illumination Designs LED Lighting Development Tools Multi-DC/DC Color LED Kit KIT RGB LED MULTI-DCDC DEV C2000 PICCOLO, C2000, LED, RGB, DC/DC, DEV KIT C2000, RGB LED, MULTI DC/DC, DEV KIT |
| 分类 |
商业参数
| 产品 | Development Kits | 其他名称 | 296-28217 |
| 产品类别 | LED Lighting Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 85423990 |
电气参数
| 调光方式 | :PWM | 内核大小 | :- |
| 核心类型 | Piccolo C2000 | 额定电压 | :50VDC |
| 输出电流 | 350 mA | 供电电压 | 12 V to 24 V |
| 元件数量 | :TMS320F28 | 最小输入电压 | :12V |
| 最大持续工作电压（MCOV） | :24V | ||
机械参数
| 重量 | 0 | ||
产品信息
| 类型 | Development Kit | 内容 | 2 Boards |
| 嵌入式 | Yes, MCU, 32-Bit | 产品特性 | :Colour Mixing and Brightness Control, Average Current Mode Control |
| 套件类型 | :Microcontroller | 拓扑 | :- |
| 套件内容 | :3x brds, cables, docs | 主要用途 | Lighting, RGB LED Controller |
| 主要特性 | Detachable LED Panel with 2 RGB LED Strings and 2 white LED Strings | 使用的IC/零件 | TMS320F28027 |
| 芯片组制造商 | :Texas Instruments | 次要特性 | Color Mixing and Brightness Control |
| 应用细节 | :Power Manager | 适用产品/相关产品 | LED Strings |
