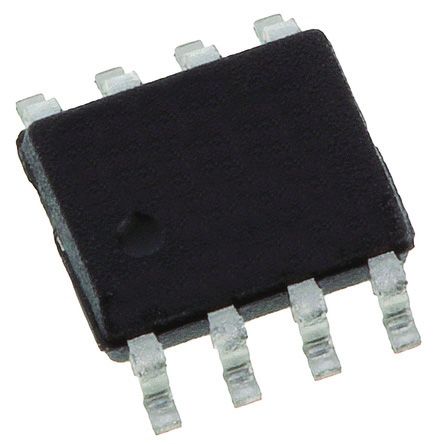

TLC4541ID
| 制造商 | Texas Instruments Incorporated |
| 描述 | ADC Single SAR 200ksps 16-bit Serial 8-Pin SOIC Tube Analog to Digital Converters - ADC 16Bit 200KSPS SerOut Auto PWRDN Single ADC SAR 200ksps 16-bit Serial 8-Pin SOIC Tube IC SERIAL ADC 16-BIT 5V LP 8SOIC TLC4541ID, 16-Bit Analogue to Digital Converter, SPI, 8-Pin SOIC IC, 16BIT ADC, SMD, 4541, SOIC8 16-Bit 200KSPS ADC Serial Out, Auto PWRDN, Single-Ended Input Texas Instruments , 16 位 ADC, SPI接口, 8针 SOIC封装 |
| 分类 |
商业参数
| 其他名称 | 296-12500-5 | 产品类别 | Analog to Digital Converters - ADC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 75 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :4541 | 抗辐射加固 | No |
电气参数
| 接口 | Serial (3-Wire, SPI) | 线性度 | -1LSB/2LSB |
| 信噪比 | 85(Typ) dB | 输入类型 | Voltage |
| 分辨率 | 16 Bit | 输入信号 | Single-Ended |
| INL/DNL（LSB） | ±2.5LSB | 输入功率 | Single |
| 转换器类型 | General Purpose | 数据接口 | DSP, Serial, SPI™ |
| 输入极性 | Unipolar | 位数 | 16 |
| 基准类型 | Ext | 额定电压 | 5V |
| 数据速率（最大） | 200 KSPs | 额定电压值 | 5 |
| 输出电流 | :3.5mA | 输入数量 | 1 |
| 供电电压 | 5 V | 分辨率（位） | :16bit |
| 电压基准 | External | 通道数量 | 1 |
| 元件数量 | 1 | 采样频率 | 200 ksps |
| 模拟输入/输出 | 5.5 | 最大额定电流 | Catalog |
| ADC/DAC 数量 | 1 | 供电电源 | Single |
| 上升/下降时间（典型） | :2.94µs | 平均正向功率 | 29 |
| 最大功耗 | :17.5mW | 差分非线性 | -1/2LSB |
| 数字供电电压 | 5.5 | 内部供电电压 | :4.5V to 5.5V |
| 采样率（每秒） | 200k | 差分 - 输入:输出 | No |
| 电源电压范围（典型） | Not Required V | 信噪比，ADC/DAC（dB）典型值 | 85 dB |
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 4.9mm | 重量 | 0.002677 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 5(Max) |
| 包装数量 | SOIC | 尺寸/外形 | 4.9 x 3.91 x 1.58mm |
| 位数 | 8 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 8-SOIC | ||
产品信息
| 系列 | TLC4541 | 软件 | SLAS293 |
| 基本单元 | :4541 | 架构 | SAR |
| 使用的IC/零件 | View | 印刷电路板数量 | 8 |
| A/D转换器数量 | 1 | 输入数量及类型 | 1 Single-Ended, Unipolar |
