DAC7678SPW
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 8-CH Resistor-String 12-bit 16-Pin TSSOP DAC 8-CH Resistor-String 12-bit 16-Pin TSSOP Tube IC DAC 12BIT I2C OCTAL 16TSSOP Digital to Analog Converters - DAC 12BOctal ChUltra Low Glitch DAC IC, DAC, 12BIT, I2C, OCTAL, 16TSSOP 12-bit, Octal Channel, Ultra-Low Glitch, Voltage Output, 2-Wire Interface DAC with 2.5V Internal Ref Texas Instruments , 8通道 12 位 DAC, 串行接口, 16针 TSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-27742-5 | 产品类别 | Digital to Analog Converters - DAC |
| 标准包装数量 | Trays | 工厂包装数量 | 90 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | Serial (2-Wire, I2C) | 满量程 | ±0.2 %FSR |
| 输入类型 | :Serial | 分辨率 | 12 Bit |
| 输出类型 | Voltage | 输出范围 | 0 |
| INL/DNL（LSB） | ±1 LSB | 输入功率 | Single |
| 建立时间 | 10 us | 转换器类型 | General Purpose |
| 数据接口 | I²C, Serial | 位数 | 12 |
| 基准类型 | Ext Int | 数据速率（最大） | 55.55 KSPs |
| DAC数量 | 8 | 输出电流 | :1.02mA |
| 供电电压 | 5.5 V | 输出数量 | 8 |
| 供电类型 | Single | 分辨率（位） | :12bit |
| 通道数量 | 8 | 采样频率 | :188.88kSPS |
| 最大额定电流 | Catalog | 供电电源 | Single Supply |
| 增益带宽积 | 0.15 | 平均正向功率 | 3.4 |
| 最大功耗 | 12.1 mW | 输出数量与类型 | 8 Voltage, Unipolar; 8 Voltage, Bipolar |
| 采样率（每秒） | * | 电源电压范围（典型） | Not Required V |
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.00027 |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :16 | 封装形式 | 16TSSOP |
| 冷却的封装 | TSSOP | 材料表面处理 | :MSL 3 - 168 hours |
| 总长度 | 5.1(Max) | 包装数量 | TSSOP |
| 位数 | 16 | 外壳尺寸-插件 | 1.05(Max) |
| 供应商器件封装 | 16-TSSOP | ||
产品信息
| 系列 | DAC7678 | 软件 | SBAS493C |
| 基本单元 | :7678 | 架构 | Resistor-String |
| 功能框图 | fbd_sbas493c.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 16 | A/D转换器数量 | 8 |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
| 结工作温度 | 125C | ||
文档与媒体
相关型号
OPA2277U
texas instruments
OP Amp Dual GP ±18V 8-Pin SOIC Tube IC OPAMP GP 1MHZ 8SOIC Operational Amplifiers - Op Amps High Precision Oper Amplifier OP Amp Dual GP ?18V 8-Pin SOIC Tube OP AMP, DUAL PRECISION, SMD, 2277 High Precision Operational Amplifiers Operational Amplifier Dual 1 MHz SO-8, OPA2277U, Texas Instruments OP Amp Dual GP 18V 8-Pin SOIC Precision Amplifiers High Precision Oper Amplifier
OPA277P
texas instruments
OP Amp Single GP ±18V 8-Pin PDIP Tube IC OPAMP GP 1MHZ 8DIP Operational Amplifiers - Op Amps High Precision Oper Amplifier OP Amp Single GP ?18V 8-Pin PDIP Tube IC, OP AMP, PRECISION, PDIP8, 277 Operational amplifier; 1MHz; 2÷18VDC; Channels:1; DIP8 High Precision Operational Amplifiers Texas Instruments 运算放大器, 1MHz, 8针 PDIP Precision Amplifiers High Precision Oper Amplifier
REF102AP
texas instruments
V-Ref Precision 10V 10mA 8-Pin PDIP Tube IC VREF SERIES PREC 10V 8-PDIP Voltage References Precision Voltage Reference VOLT REF, PRECISION, 10V, 8DIP IC, ULTRA PRECISION, VOLT REF, 10V Voltage reference source; 10V; DIP8 Precision Voltage Reference Voltage reference 10 V DIL-8, REF102, REF102AP, Texas Instruments Texas Instruments Fixed 10V 电压参考, ±0.1 %精确度, 40 V输入, 8针 PDIP封装
INA105KU
texas instruments
SP Amp DIFF AMP Single ±18V 8-Pin SOIC Tube IC OPAMP DIFFERENTIAL 1MHZ 8SOIC INA105KU, Differential Amplifier 8-Pin SOIC Differential Amplifiers Precision Unity Gain SP Amp DIFF AMP Single �18V 8-Pin SOIC Tube IC, OP-AMP DIFF 1MHZ SGL 8SOIC Operational amplifier; 50kHz; 5÷18VDC; Channels:1; SO8 Precision Unity Gain Differential Amplifier Instrumentation Amplifier SO-8, INA105KU, Texas Instruments 差分放大器, 8引脚 SOIC封装
DAC7678EVM
texas instruments
Evaluation Board For Low-Power, Single-Channel, Digital-To-Analog Converters Data Conversion IC Development Tools DAC7678 Eval Mod EVAL MODULE FOR DAC7678 DAC7678, DAC, EVALUATION MODULE
REF5050ID
texas instruments
V-Ref Precision 5V 10mA 8-Pin SOIC Tube IC VREF SERIES PREC 5V 8-SOIC Voltage References Lo Noise Very Low Drift Prec VLTG REF VOLTAGE REFERENCE, SERIES, 5V, SOIC-8 Low Noise, Very Low Drift, Precision VOLTAGE REFERENCE Texas Instruments Fixed 5V 电压参考, ±0.05 %精确度, 10mA, 18 V输入, 8针 SOIC封装
RE933-03
Roth Elektronik
RE933-03, Surface Mount (SMT) Board TSSOP Epoxy Glass Double-Sided 23.5 x 13.5 x 1.5mm FR4 ADAPTOR, SMD, TSSOP-16, 0.65MM SMDmulti-adaptorTSSOP-16pin,RE933-03 Board: universal; multiadapter; W:13.5mm; L:23.5mm; TSSOP16 Laboratory card FR4 Epoxide + chem. Ni/Au TSSOP16 Adapter, RE933-03, Roth Elektronik
RE933
Roth Elektronik

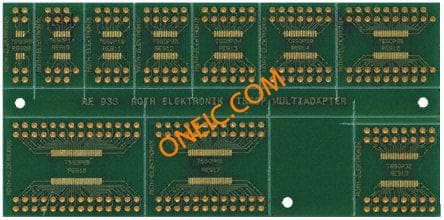

TSSOP - SMD multi-adapter,120.10x58.90mm MULITADAPTOR, SMD, FR4, TSSOP PCB,RE933 Board: universal; multiadapter; W:58.9mm; L:120.1mm Laboratory card FR4 Epoxide + chem. Ni/Au Multiadapter TSSOP, RE933, Roth Elektronik
