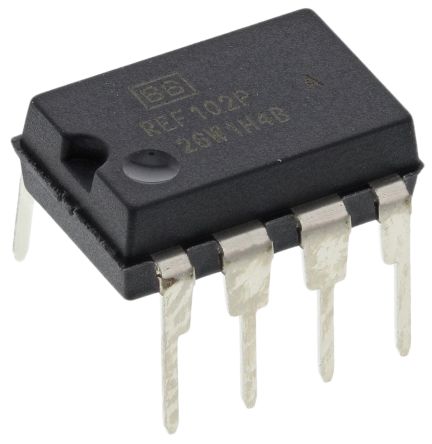

REF102AP
| 制造商 | Texas Instruments Incorporated |
| 描述 | V-Ref Precision 10V 10mA 8-Pin PDIP Tube IC VREF SERIES PREC 10V 8-PDIP Voltage References Precision Voltage Reference VOLT REF, PRECISION, 10V, 8DIP IC, ULTRA PRECISION, VOLT REF, 10V Voltage reference source; 10V; DIP8 Precision Voltage Reference Voltage reference 10 V DIL-8, REF102, REF102AP, Texas Instruments Texas Instruments Fixed 10V 电压参考, ±0.1 %精确度, 40 V输入, 8针 PDIP封装 |
| 分类 |
商业参数
| 产品 | Voltage References | 产品类别 | Voltage References |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423990 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 容差 | ±10mV | 基准类型 | Precision |
| 额定电压 | 10 V | 电源调整率 | 2 ppm/V |
| 负载调整率 | 40 ppm/mA | 输出电流 | 10(Min) mA |
| 供电电压 | :0.1% | 电压基准 | :10V |
| 输出电流1 | 10 | 通道数量 | 1 |
| 最大额定电流 | Catalog | 触点电压（最大） | 36 V |
| 最小输入电压 | 10V | 输出电压（最大） | 10 V |
| 稳压器电流（最大） | 1400 uA | 静态电流 (Iq) | 1.4mA |
| 输出电流/通道 | 8 mA | 精度 - 最高（最低） | 10 mV |
| 最大持续工作电压（MCOV） | :36V | ||
机械参数
| 重量 | 0.018455 oz | 包装方式 | Tube |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 包装数量 | 50 |
| 位数 | 8 | 供应商器件封装 | 8-PDIP |
产品信息
| SPG | 50 | 类型 | voltage reference source |
| 系列 | REF102 | 软件 | SBVS022B |
| 拓扑 | Series | 基本单元 | :102 |
| 二极管类型 | :Voltage Reference | 可编程性 | Precision |
| 图案编号 | Y | 单元数量 | 1 |
| 功能框图 | fbd_sbvs022b.gif | 使用的IC/零件 | View |
环境参数
| 工作温度 | -25 to 85 °C | 温度系数 | 10 ppm/°C |
| 典型温度系数 | 5 PPM / C | 结工作温度 | :85°C |
文档与媒体
相关型号
OPA2227U
texas instruments
OP Amp Dual GP ±18V 8-Pin SOIC Tube IC OPAMP GP 8MHZ 8SOIC OPA2227U, Dual Operational Amplifier 8MHz, 8-Pin SOIC Operational Amplifiers - Op Amps High Prec Low Noise Oper Amplifier OP Amp Dual GP �18V 8-Pin SOIC Tube High Precision, Low Noise Operational Amplifiers Operational Amplifier Dual 8 MHz SOIC-8, OPA2227, OPA2227U, Texas Instruments Texas Instruments 双 运算放大器, 8MHz, 8针 SOIC
BUF634U/2K5
texas instruments
OP Amp Single GP ±18V 8-Pin SOIC T/R IC OPAMP BUFFER 180MHZ 8SOIC High Speed Operational Amplifiers 250mA High-Speed Buffer OP Amp Single GP �18V 8-Pin SOIC T/R IC, HIGH SPEED BUFFER, SGL, 180MHZ SOIC8, FULL REEL IC, HIGH SPEED BUFFER, SGL, 180MHZ SOIC8 250mA High-Speed Buffer

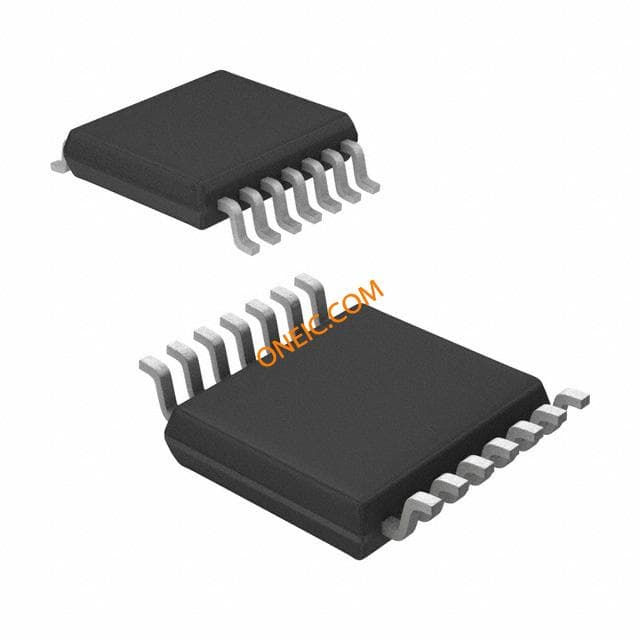

DAC8871SBPW
