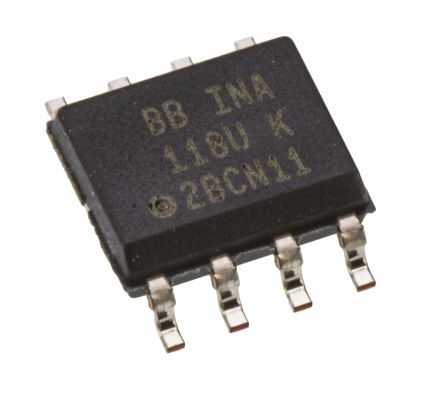

INA118U
| 制造商 | Texas Instruments Incorporated |
| 描述 | SP Amp INSTR Amp Single ±18V 8-Pin SOIC Tube IC OPAMP INSTR 800KHZ 8SOIC INA118U, Instrumention Amplifier, 73dB CMRR, 8-Pin SOIC Instrumentation Amplifiers Precision Low Power Instrumentation Amp SP Amp INSTR Amp Single �18V 8-Pin SOIC Tube IC, INSTR AMP, 800KHZ, 110DB, SOIC-8 Operational amplifier; 800kHz; 1.35÷18VDC; Channels:1; SO8 Precision, Low Power Instrumentation Amplifier Instrumentation Amplifier SO-8, INA118, INA118U, Texas Instruments Texas Instruments 仪表放大器, 125μV偏置, 800kHz, 73dB CMRR 8针 SOIC封装 |
| 分类 |
商业参数
| 产品类别 | Instrumentation Amplifiers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 80 dB | 输出端 | :Single Ended |
| 压摆率 | 0.9 V/µs | 输出类型 | No |
| 输入功率 | Dual | 上升时间（典型） | 900mV/μs |
| 共模抑制比、电源抑制比（典型） | 73dB | 输出电流 | 350µA |
| 供电电流 | 0.385 mA | 供电电压 | ±1.35 V |
| 供电类型 | Dual | 通道数量 | 1 |
| 元件数量 | 3 | 输入电阻 | 10GΩ |
| 非易失性存储器 | 0.002 | 输入偏置电流 | 1nA |
| 最大额定电流 | Catalog | 噪声（10Hz至10kHz） | 10 |
| ADC/DAC 数量 | :1 | 最小输入电压 | 80 dB |
| 增益带宽积 | 800 KHz | 轨到轨工作 | No |
| 静态电流 (Iq) | 0.35 | 输入偏置电流（最大） | 0.01@±15V |
| 输出电流/通道 | 12mA | 供电电压 (Vcc/Vdd) | 36 |
| 电源电压范围（典型） | �15 V | 频段（低/高） | 800kHz |
| 输入失调电压（最大） | 50 | ||
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 4.9mm | 重量 | 0.002677 oz |
| 带宽 | :800kHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| -3dB带宽 | 800kHz | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8SOIC |
| 冷却的封装 | SOIC | 材料表面处理 | :MSL 3 - 168 hours |
| 总长度 | 5(Max) | 包装数量 | SOIC |
| 尺寸/外形 | 4.9 x 3.91 x 1.58mm | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| SPG | 75 | 类型 | Instrumentation Amplifier |
| 系列 | INA118 | 软件 | SBOS027 |
| 放大器类型 | Instrumentation | 单元数量 | 1 |
| 电路数 | 1 | 使用的IC/零件 | View |
| 其他规格 | 100/G | 印刷电路板数量 | 8 |
环境参数
| 工作温度 | -40 to 125 °C | ||
