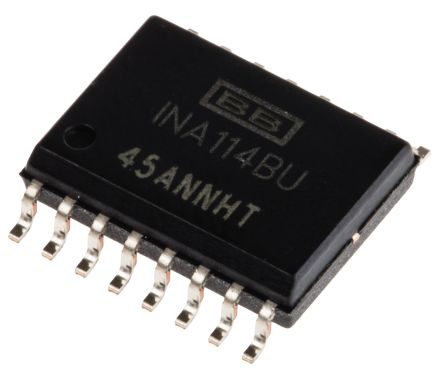

INA114BU

制造商	Texas Instruments Incorporated
描述	SP Amp INSTR Amp Single ±18V 16-Pin SOIC Tube IC OPAMP INSTR 1MHZ 16SOIC INA114BU, Instrumention Amplifier, 115dB CMRR, 16-Pin SOIC Instrumentation Amplifiers Precision Instrumentation Amp AMP INSTRUMENTATION, 16WSOIC, 114 Precision Instrumentation Amplifier Texas Instruments 仪表放大器, 50μV偏置, 1MHz, 115dB CMRR 16针 SOIC封装
分类	集成电路放大器与比较器比较器

商业参数

产品类别	Instrumentation Amplifiers	标准包装数量	Rail / Tube
工厂包装数量	40	标准封装名称	SOIC

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85423300
零件状态	ACTIVE

电气参数

增益	80 dB	输出端	:Single Ended
压摆率	0.6 V/µs	失调漂移	5/G
共模抑制比、电源抑制比（典型）	115dB	输出电流	2.2mA
供电电流	3 mA	供电电压	±2.25 V
供电类型	Dual	通道数量	1
元件数量	3	输入电阻	10GΩ
非易失性存储器	0.002	输入偏置电流	500pA
最大额定电流	Catalog	噪声（10Hz至10kHz）	11
ADC/DAC 数量	:1	最小输入电压	80(Typ) dB
增益带宽积	1 MHz	轨到轨工作	No
静态电流 (Iq)	2.2	输入偏置电流（最大）	0.002@±15V
输出电流/通道	20mA	供电电压 (Vcc/Vdd)	36
输入失调电压（最大）	50

机械参数

宽度	7.52mm	高度	2.35mm
长度	10.28mm	重量	0.014829 oz
带宽	:1MHz	包装方式	Tube
引脚样式	Gull-wing	端接方式	:SMD
安装类型	Surface Mount	-3dB带宽	1MHz
安装样式	SMD/SMT	引脚数	:16
封装形式	16SOIC	冷却的封装	SOIC
材料表面处理	:MSL 3 - 168 hours	总长度	10.5(Max)
包装数量	SOIC	尺寸/外形	10.28 x 7.52 x 2.35mm
位数	16	外壳尺寸-插件	2.35(Max)
供应商器件封装	16-SOIC

产品信息

类型	Instrumentation Amplifier	系列	INA114
软件	SBOS014	基本单元	:114
放大器类型	Instrumentation	电路数	1
使用的IC/零件	View	其他规格	:0.25µV/°C
印刷电路板数量	16	可编程特性	:10000

环境参数

工作温度

-40 to 85 °C

文档与媒体

sbos014.pdf

INA114

1762490.pdf

ina114.pdf

sbos014

ina114
